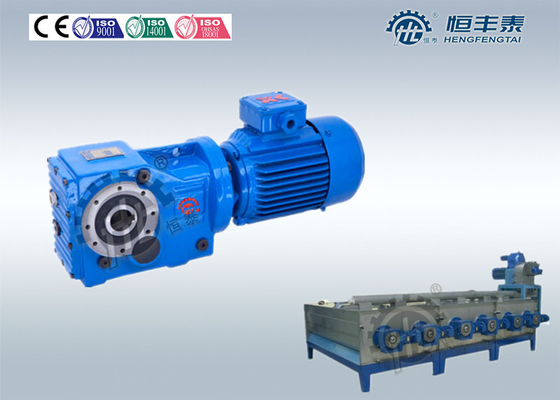

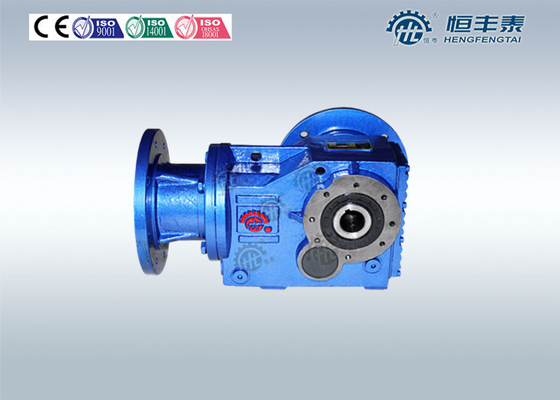

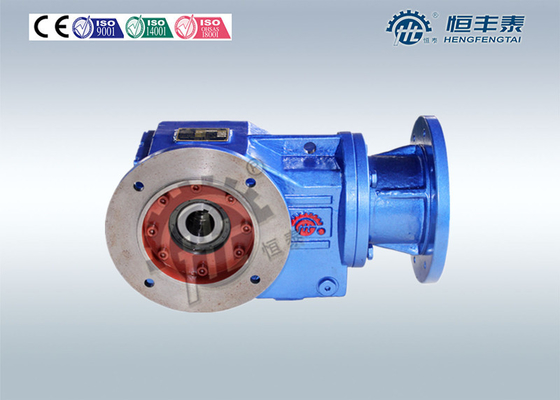

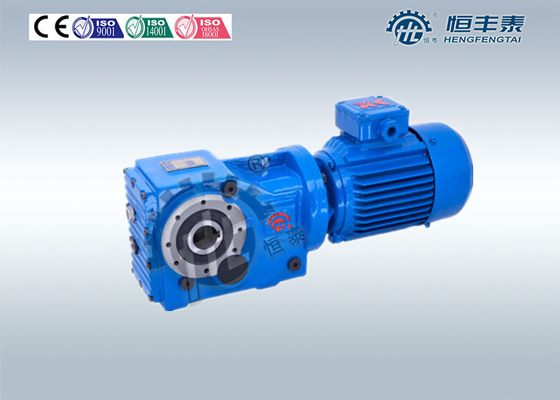

HK series Foot Mounted Bevel Helical Gear Reducer Three Stage High Power Density

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification TUV,CE,ISO9001:2008,ISO14001,GB28001
Model Number HK series
Minimum Order Quantity 2 PIECES
Price US$ 200-4000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 30-35 days for helical gear reducer
Payment Terms T/T or LC
Supply Ability 3000 PCS PER MONTH
Product Details
Power Range 0.37~160 KW Ratio 5~200
Torque Range 150~20000 N.m Input Motor Speed 750~1720 Rpm
Gearbox Output Speed 4~430 Rpm Gearbox Weight 25~1700 Kg
High Light

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

HK series Foot Mounted Bevel Helical Gear Reducer Three Stage High Power Density





Quick Details:



.                 Ratio: 4.09~ 195.2



.                 Output Torque: 170~42500N.m



.                 Rated Power: 0.12~200KW



.                 Model:HK37-HK187





Descriptions:



K series HT brand foot - mounted helical gear reducer applied for Pan conveyors is the first product to



prove equally good in regard to efficiency and versatility within a highly competitive context, both



performance- and price-wise.





Your benefits:



1.     High power density



2.     Long service life



3.     Multi-stage gear unit for low output speeds



4.     Two-stage or three-stage versions



5.      Same reducer as SEW K series





Specification:



           model

37

47

57

67

77

87

Structure

HK..Y.. ( foot mounted )

Input Power KW

0.12~3

0.12~3

0.12~4

0.18~5.5

0.37~11

0.75~22

Transmission Ratio   i

4.09~106.6

4.66~131.7

4.68~143.5

7.1~646.2

7.11~192.7

7.42~195.2

Allowed Torque  Nm

170

340

510

705

1320

2300

Weight   kgs

12

22

30

37

63

94



            model

97

107

127

157

167

187

Structure

HK..Y.. ( foot mounted )

Input Power KW

1.1~30

3~45

7.5~90

11~160

15~200

15~200

Transmission Ratio   i

8.88~176.5

8.72~147.2

8.6~144.4

12.7~151.1

17.3~161

17.1~180.7

Allowed Torque  Nm

3670

6800

11050

15300

27200

42500

Weight   kgs

145

275

420

680

1130

1870







Applications:



K series HT brand foot - mounted helical gear reducer applied for Pan conveyors



HK series Foot Mounted Bevel Helical Gear Reducer Three Stage High Power Density 0







Warranty:



HFT guarantees the products of K series HT brand foot - mounted helical gear reducer applied for Pan



conveyors is 18months quality guarantee.





Competitive Advantage:



       1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai&



          Sanxi Industry Zone, covering area 50000 square meters and 350 staff so far.



  2. There aremore than 40 professional technical engineers.



      We had 49 items patents.



  3. Relying on high quality products and perfect service, our products have been successfully



applied by more than 6000 customers.





Helical Gear Reducer factory:



HK series Foot Mounted Bevel Helical Gear Reducer Three Stage High Power Density 1





HK series Foot Mounted Bevel Helical Gear Reducer Three Stage High Power Density 2
