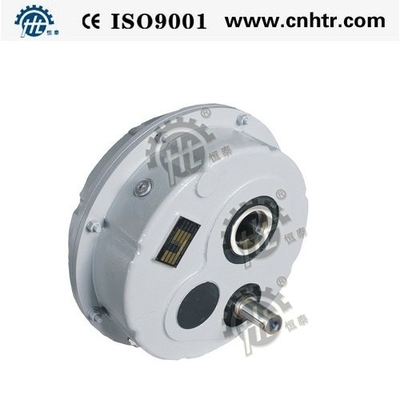

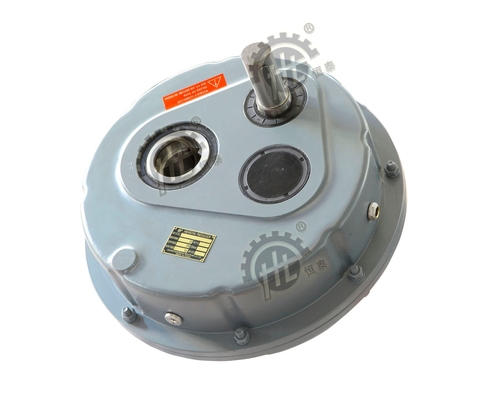

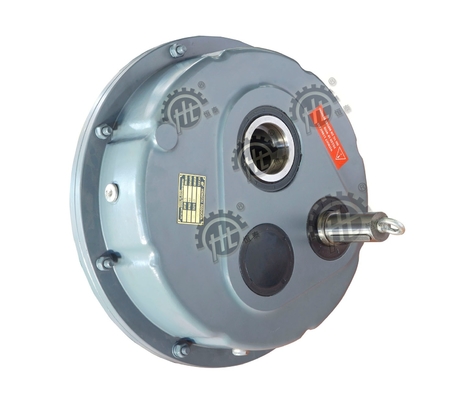

Conveyor Belt Shaft Mounted Speed Reducer Low Backlash Two Stage HXG Series Size 40-80

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai
Certification CE,ISO9001,TUV,SGS
Model Number TA 30,35,40,50,60,70,80,100,125
Minimum Order Quantity 50 pcs
Price USD300-3000/pcs
Packaging Details 6-12pcs packed in one box
Delivery Time 30days
Payment Terms T/T,L/C
Supply Ability 5000pcs
Product Details
Ratio Range 5-31 Usual Ratio 15
Rated Power Up To 200KW Rated Torque Up To 20000Nm
Material For Gears 20CrMnTi Color Blue, Grey
High Light

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Description:



Model:

HXG30-30, HXG35-35, HXG40-40, HXG40-45, HXG45-45, HXG45-50, HXG45-55,

HXG50-50, HXG50-55, HXG50-60, HXG60-60, HXG60-70,HXG70-70, HXG70-85,

HXG80-80, HXG80-100, HXG100-100, HXG100-125, HXG125-125, HXG125-135.

Ratio: 5:1, 10:1,12.5:1, 15:1, 20:1, 25:1, 31:1,

Power Range: 1.1kw-193kw

Allowable torque: 180Nm-17000Nm



Type Torque Nm
TA30/HXG30 150
TA35/HXG35 400
TA40/HXG40 900
TA45/HXG45 1350
TA50/HXG50 2100
TA60/HXG60 3500
TA70/HXG70 4900
TA80/HXG80 6600
TA100/HXG100 10500
TA125/HXG125 16000





Input Speed: 750rpm-1500rpm

Output Speed: 25rpm-300rpm

Mounting position: shaft mounted

Output shaft: Keyed hollow shaft.

Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation

Backstop: Available on all frame sizes With/without anti-back Backstop,

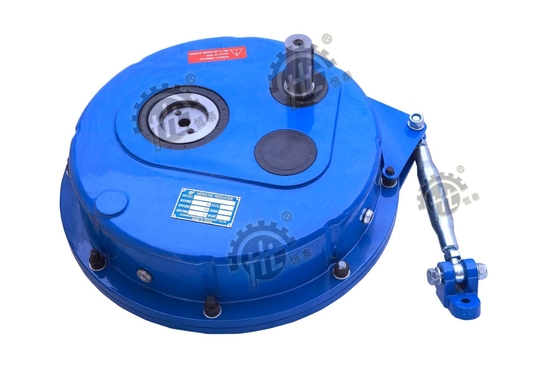

Torque arm: Available on all frame sizes with torque arm.

Note: Same mounting install dimensions to Bonfiglioli TA series shaft mounted gear motors

From TA 30-TA125,

TA30-30, TA35-35, TA40-40, TA40-45, TA 45-45, TA 45-50, TA 45-55,

TA 50-50, TA 50-55, TA 50-60, TA 60-60, TA 60-70, 70-70, TA 70-85,

TA 80-80, TA 80-100, TA 100-100, TA 100-125, TA 125-125, TA 125-135.



RATIO:

5:1,

7:1,

10:1,

12.5:1,

15:1,

20:1,

25:1,

31:1



Reduction stage: one stage ,two stages.

Output shaft diameter:

30mm,

35mm,

40mm,

45mm,

50mm,

60mm,

70mm,

80mm,

100mm,

125mm,



Solid input shaft

IEC motor mounting flange



Anti-run back device

Antiback

Backstop available

Torque arm arailable

Conveyor Belt Shaft Mounted Speed Reducer Low Backlash Two Stage HXG Series Size 40-80 0



Conveyor Belt Shaft Mounted Speed Reducer Low Backlash Two Stage HXG Series Size 40-80 1
