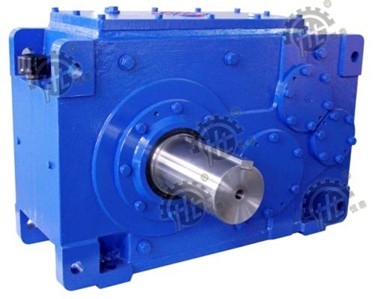

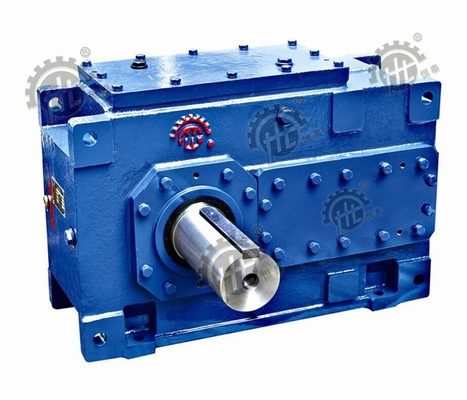

22KW~500KW big power reduction gearbox 2 Stage Helical Gear Reducer

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification ISO9001:2008
Model Number HB series
Minimum Order Quantity 1 PIECES
Price USD1000.00-USD50000.00
Packaging Details 1 PCS PACKED ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability 100 PCS PER MONTH
Product Details
Power 22~500 KW Ratio 11~30
Transmission Stage 2 Stage Used Motor 4 Poles
Output Shaft Solid Or Hollow Shaft Torque 5000~40000 N.m
High Light

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

22KW~500KW big power reduction gearbox 2 Stage Helical Gear Reducer





Minimum Order Quantity:

ONE PIECE

Price:

DEPENDS ON REQUIREMENTS

Packaging Details:

STRONG EXPORTING WOODEN CASE AND PALLETS

Delivery Time:

DEPENDS ON QUANTITY

Payment Terms:

T/T or LC

Supply Ability:

DEPENDS ON THE SPECIFIC MODEL







Material:


Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade alloy with carburization,

surface hardness: 58-62HRC,

center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6,

surface finish: 0.8,

carburization depth: 0.6-1.5mm
Bearing: 42CrMo



Warranty: 18 months





Specification:



Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,



H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26



H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,



H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26



H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,



H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26







Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

Single-stage

3--19

1.25--5.6

30-4,744

2,200-165,300

S. Solid Shaft

H. Hollow Shaft

D. Hollow Shaft for Shrink Disk

H: Horizontal

V: Vertical

M: Horizontal Design Without Feet

Double-stage

4--26

6.3--28

21-5,193

5,900-843,000

Three-Stage

5--26

22.4--112

9-4,749

10,600-952,000

Four-Stage

7--26

100--450

4.1-1,325

18,400-944,000







Applications



Widely used in metallurgy, mining, steel, weighing, transportation,

petrochemical, chemical, construction, textile, pharmaceutical, food,

transportation, environmental protection, light industry, plastic, paper,

parallel parking, lifting, Bridges, shipbuilding and other heavy industry

department the mechanical transmission fields.





Helical gear unit, flender gearbox, industrial gearbox
