Hollow Shaft spiral Bevel Helical Gearbox right angle reducer

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HB
Minimum Order Quantity 1 PIECES
Price USD500.00-USD9000.00
Packaging Details 1 PCS packed in ONE WOODEN CRATE
Delivery Time 25days
Payment Terms T/T or LC
Supply Ability 1000 PCS PER MONTH
Product Details
Output Shaft Solid Or Hollow Shaft Shaft Diameter 50~200 Mm
Used Power 15~4000 KW Torque 5000~100000 N.m
Gear Ratio 5~450 Input Speed 750~1500 Rpm
High Light

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

Hollow Shaft spiral Bevel Helical Gearbox right angle reducer





Quick Detail:



Gearing Arrangement: Helical

Output Torque: 450000 N.m

Rated Power: 1.1-5100KW

Ratio: 1.25-450

Input Speed: 750-1500 rpm

Output Speed: 1.67-1200RPM

Place of Origin: Zhejiang, China (Mainland)

Model Number: H1SH3-H4SH26

Output shaft: Keyed hollow shaft or solid shaft.

Output shaft diameter: 30-420MM ]





Specification:



Power: 4-5000kW

Ratio: 1.25-450(imax:138000)

Output Torque: 2300-900000N.m



Type Stage Size Ratio Nomimal Power(KW) Norminal Torque (kN.m) Output Shaft Mounting

Helical Gear Units

H type

 Single Stage 3-19 1.25-5.6 34-3920 2.3-245

S: Solid Shaft

H: Hollow Shaft

D: Hollow shaft for shrink disk

K: Hollow shaft with involute spline, acc. to DIN5480

F: Flange shaft

V: Shaft d2 reinforced(on request)



H: Horizontal

M: Horizontal design without feet

V: Vertical
Double Stage 4-26 6.3-28 23-3686 6.3-880
Three Stage 5-26 22.4-112 10-3618 11.6-900
Four Stage 7-26 100-450 5-1010 19.6-900

Bevel Helical Gear Units

B Type

 Double Stage 4-18 5-14 46-3887 6.1-230
Three Stage 4-26 12.5-90 8-3618 5.5-900
Four Stage 5-26 80-400 3-1259 11.2-900





Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,



H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26



H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,



H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26



H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,



H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26









Your benefits:



1, Large ratio
2, Great load-carrying capacity
3, Steady running
4, Low noise
5, High efficiency
6, Competitive price
7, Good quality
8, Good technology support
9, Mounting type: Foot mounted, flange mounted, torque armed mounted





Applications:



Bucket elevator drives



Separator drives



Water screw drives



Conveyor drives



Dryer section drives

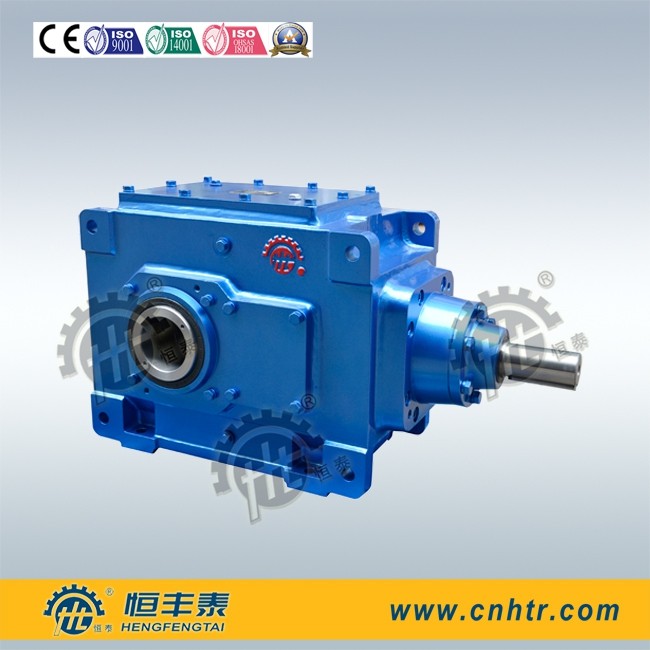

Hollow Shaft spiral Bevel Helical Gearbox right angle reducer 0Hollow Shaft spiral Bevel Helical Gearbox right angle reducer 1



Hollow Shaft spiral Bevel Helical Gearbox right angle reducer 2
