High Rate Solid Liquid Separation Clarifier And Thickener Drive Units In Water

  • img.alt
Place of Origin Wenzhou city, Zhejiang, China
Brand Name HENGTAI
Certification CE; ISO9001:2008; ISO 14001 GB 2800
Model Number CHC series
Minimum Order Quantity 1pcs
Price USD50000.00-USD900000.00
Packaging Details Strong exporting wooden case and pallets
Delivery Time 30days
Payment Terms L/c, T/T, Western union
Supply Ability 100pcs/month
Product Details
High Light

sedimentation tanks

,

liquid solid separation equipment
Leave a Message
Product Description

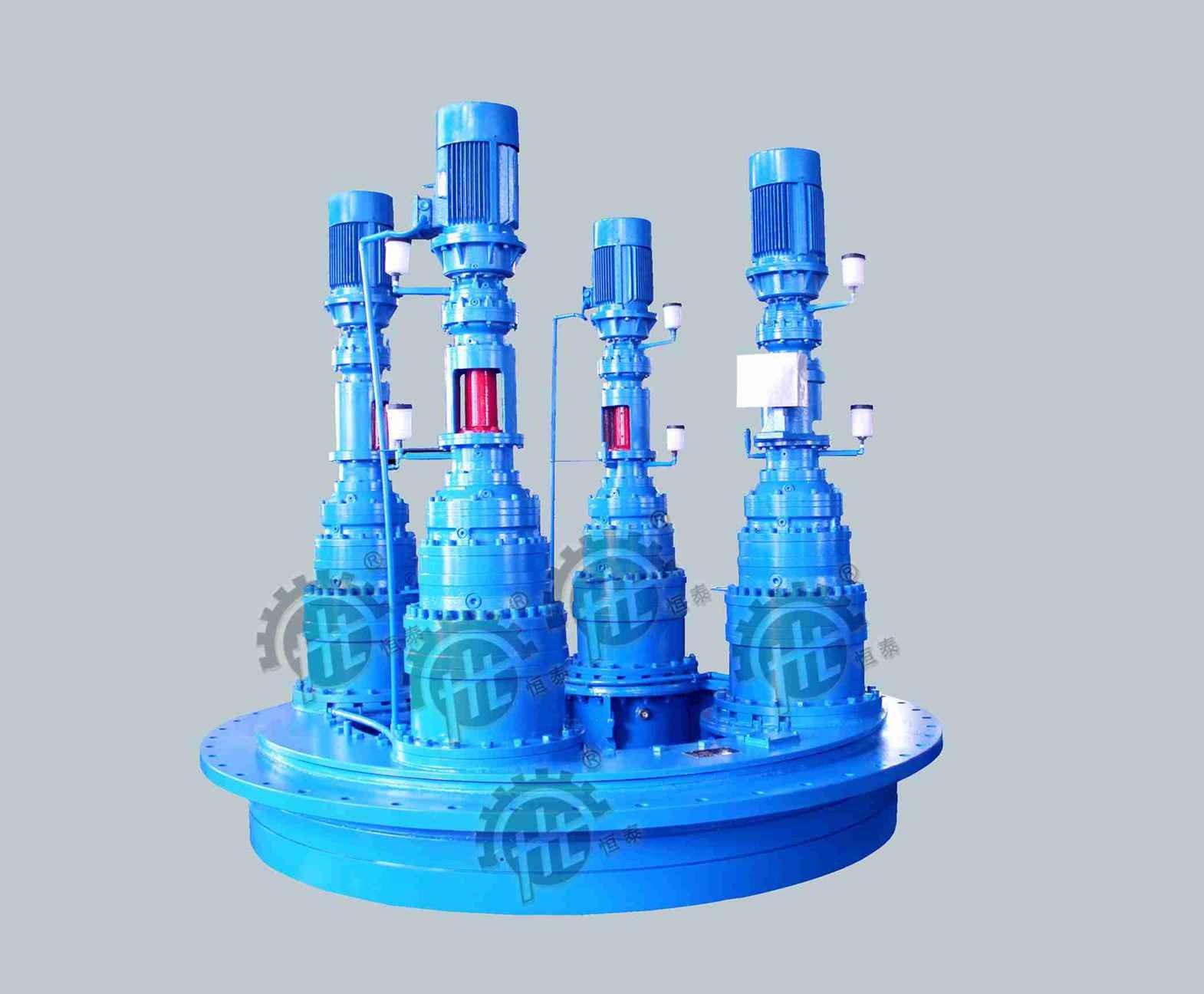

High Rate Solid Liquid Separation Clarifier And Thickener Drive Units In Water





Clarifier and thickener drive units provide the rotational force necessary to turn the rake arms in a circular basin.

The rotating rake arms transport settled solids to the center of the tank for removal.

Because drive units are applied in water and wastewater treatment plants,

as well as industrial facilities, Hengtai has developed a premium drive unit for each application.

Hengtai drive units can be designed for torque requirements from 1,000ft-lbs to 6,000,000ft-lbs.





Quick Detail:



Gearing Arrangement:

Planetary



Allowable torque:

12000~400000 Nm



Power range:

3~15 KW

Input Speed:

500-1800 rpm



Output speed:

0.1~ 0.04 rpm



Place of Origin:

Zhejiang, China

Lifting distance:

150~500 mm



Mounting position:

foot/vertical flange mounted

Model Number:

HENGTAI



Model Number:

CHC

Color:

According to customer









Other name:



CHC series Thickener clarifies industrial drive



CHC series high-rate circular thickeners



CHC series hindered settling classifiers and separators





High Rate Solid Liquid Separation Clarifier And Thickener Drive Units In Water 0





Specifications:



Lets us pick a topic, red mud settlement of alumina industry, as an example.



Model

Quantity of

settlement (t/h)

Output rotate speed(r/min)

Maximum torque (n·m)

Weight(kg)

GLDS 7

6~12

1~0.1

200000

19600

GLDS 10

20~28

1~0.1

250000

28650

GLDS 14

32~40

1~0.1

300000

38900

GLDS 16

60~80

1~0.1

400000

39800

GLDS 18

90~100

1~0.1

500000

43250

GLDS 20

110~130

1~0.1

680000

49800





1-4 drive unit can be configured as required, 2 series 8 kinds of models, realize 159 KN.m to 1780KN.m

all standing, suitable for use in the center column installation of large diameter high thickener tank



The data of driving mechanism are below:



    Continuous rated torque 100 % (KN.m):159-1780



    Output speed (RPM):0.1-0.04



    Output power (KW):3-15KW



High Rate Solid Liquid Separation Clarifier And Thickener Drive Units In Water 1
