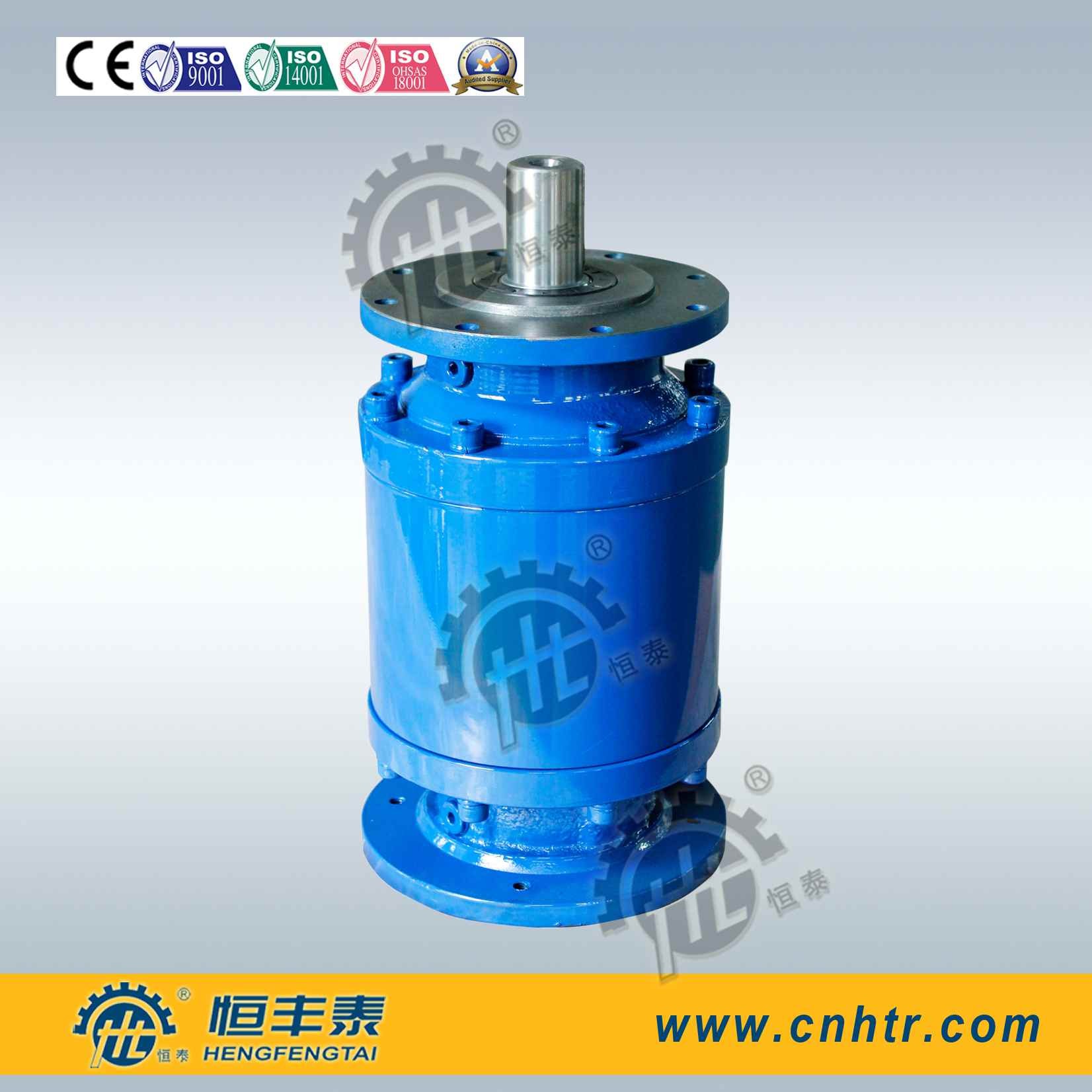

Inline Planetary Gear Reducer / Spiral Bevel Gears Shaft Mounting
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | 300 series |
| Minimum Order Quantity | 5pcs |
| Price | USD300.00-USD30000.00 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 25-35 days |
| Payment Terms | T/T or LC |
| Supply Ability | 200 PCS PER MONTH |
Product Details
| High Light | inline planetary gearbox,electric motor gear reducer |
||
|---|---|---|---|
Product Description
Inline Planetary Gear Reducer / Spiral Bevel Gears Shaft Mounting
Quick Details
The 300 series consists of a range of multi-purpose planetary gearboxes.
Key features:
18 frame size of modular design
In-line with 1-4 reductions
Right angle spiral bevel gear set into first stage with 2 to 4 reductions
Combined with
-worm gear units
-bevel-helical gear units
-flange ,foot and shaft mounting arrangements
-Keyed output shaft,spline male shaft,splined hollow shaft,hollow shaft with shrink disc.
-input adaptors for :
IEC-Normalised electric motors
-parallel input shafts
Models 300,301,303,305,306,307,309,310,311,313,315,318
Reduction stage: 1 reduction stage , 2 reduction stage, 3 reduction stage,4 reduction stage,
Construction: Inline or Right angle.
Output Speed: 0.17rpm-431rpm
Input Speed: 500rpm-1500rpm
Mounting position: Foot, Flange or Shaft mounted
Specification:
|
Type |
Torque Nm |
Type |
Torque Nm |
|---|---|---|---|
|
300 |
1.250 |
313 |
57.970 |
|
301 |
2.460 |
314 |
84.000 |
|
303 |
2.970 |
315 |
105.000 |
|
304 |
3.960 |
316 |
138.820 |
|
305 |
5.800 |
317 |
208.110 |
|
306 |
10.840 |
318 |
280.580 |
|
307 |
15.680 |
319 |
476.410 |
|
309 |
23.240 |
321 |
655.740 |
|
310 |
34.120 |
323 |
890.310 |
|
311 |
48.330 |
325 |
1.286.700 |
