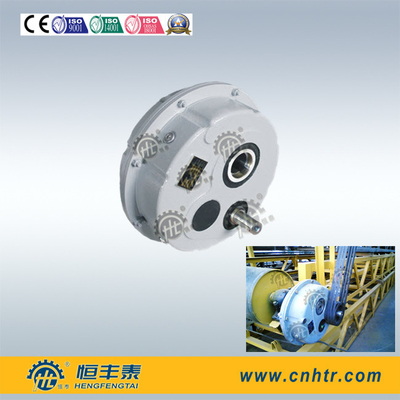

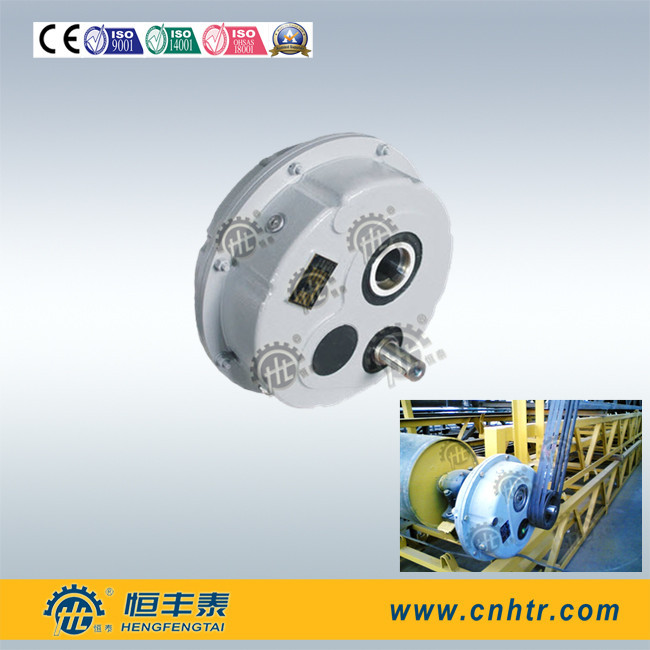

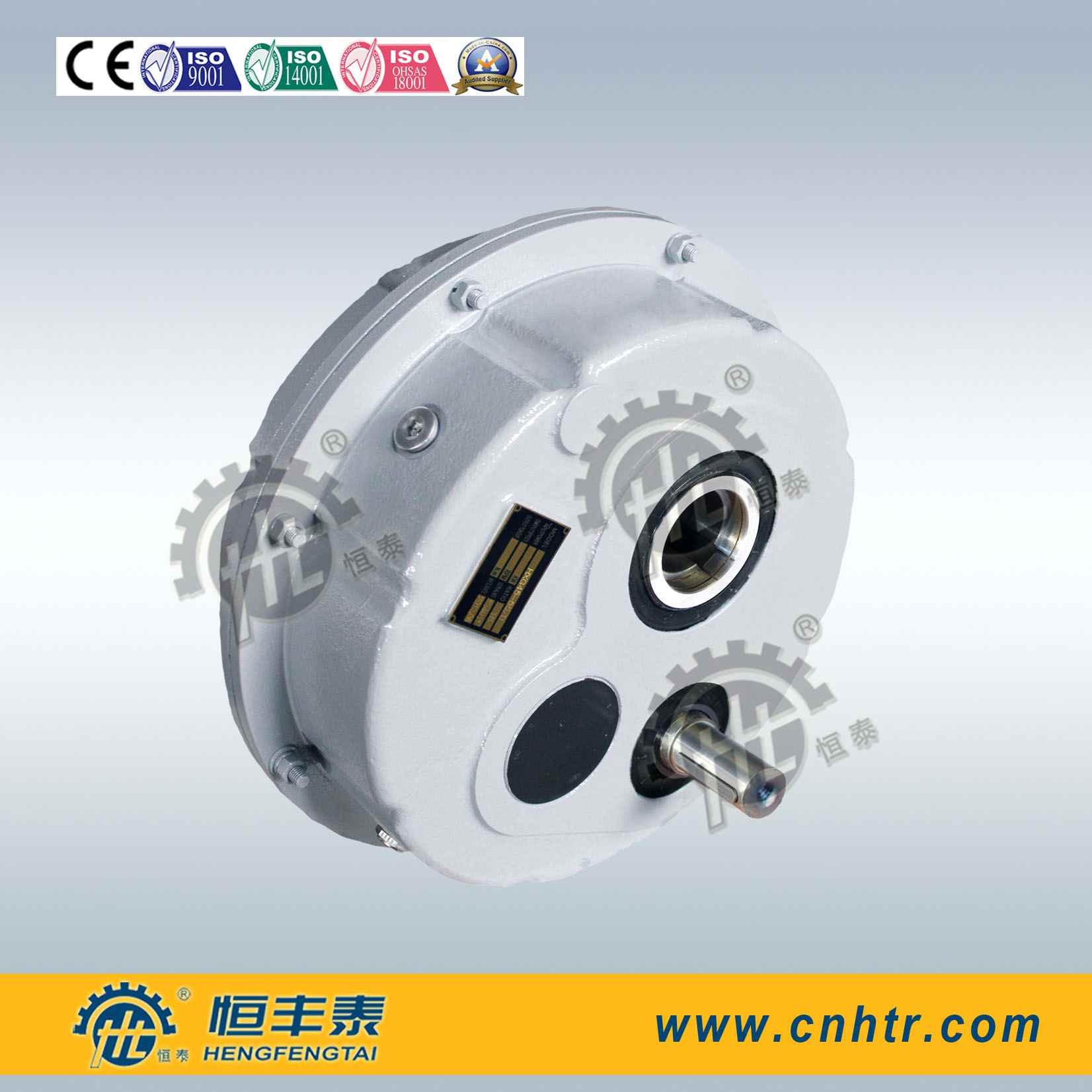

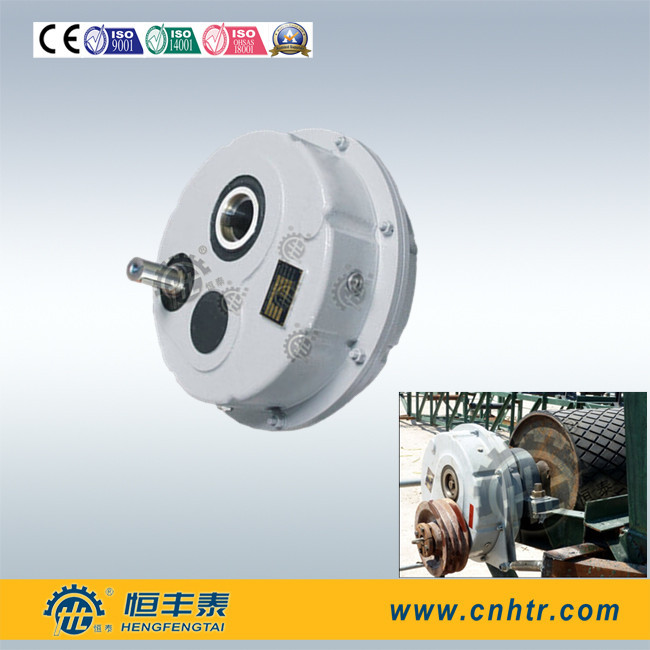

HXG Flange Mounted Shaft Mounted Speed Reducer for automatic transmission

  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou,Zhejiang,China
Brand Name Hengtai
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXG series
Minimum Order Quantity 5 pcs
Price USD300-USD3000/PCS
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 10 days
Payment Terms T/T or LC
Supply Ability 1000 PCS PER MONTH
Product Details
Ratio 15/1, 20/1, 25/1 Popular Ratio 15/1,20/1
Ratio Range 5/1-31/1 Housing Material Iron Cast
Color Grey Color No. RAL7040
High Light

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Basic information:

Gearing Arrangement: Helical

Output Torque: 180Nm-17000 N.m

Rated Power: 0.92-226 KW

Input Speed:500-1400 rpm

Output Speed: 15.1-280RPM

Place of Origin: Zhejiang, China (Mainland)

Model Number: Ta30-Ta125
Ta30-30D
Ta40-40D
Ta45-45D
Ta50-50D
Ta60-60D
Ta70-70D
Ta80-80D
Ta100-100D

Output shaft: Hollow output shaft
Output shaft hollow bore diameters:
30mm
40mm
45mm
50mm
60mm
70mm
80mm
100mm
125mm

Accessories:

Backstop, Torque arm, etc

Spare parts list:

1.Casing
2.Cover
3.Rubber cap
4.Output shaft
5.Gearwheel
6.Input shaft
7.Spacer ring
8.Spring washer
9.Gasket
10.Gasket
11.Bearing
12.Bearing
13.Bearing
14.Oilseal
15.Oilseal
16.Rubber cap
17.Circlip
18.Key
19.Key
20.Dowel Pin
21.Hex.head screw
22.Spring washer
23.Hexagonal nut
24.Hexagonal head screw
25.Breather plug
26.Level plug
27.Drain plug

28.Rubber Cap
29.Spacer ring
30.Clutch element
31.Spacer ring
32.Spacer ring
33.Support
34.Key

35.Support
36.Bracket
37.Torque arm
38.Right tie-rod
39.Left tie-rod
40.Hexagonal nut
41.Pin for bracket
42.Pin for support
43.Cotter pin

Applicable Industries:

  • Ceramic Industry
  • Sugar Industry
  • Paper And Pulp Industry
  • Iron And Steel Industry
  • Pharmaceuticals Industry
  • Textile Industry
  • Leather And Plastic Industry
  • Food Processing Industry



HXG Flange Mounted Shaft Mounted Speed Reducer for automatic transmission 0

HXG Flange Mounted Shaft Mounted Speed Reducer for automatic transmission 1
