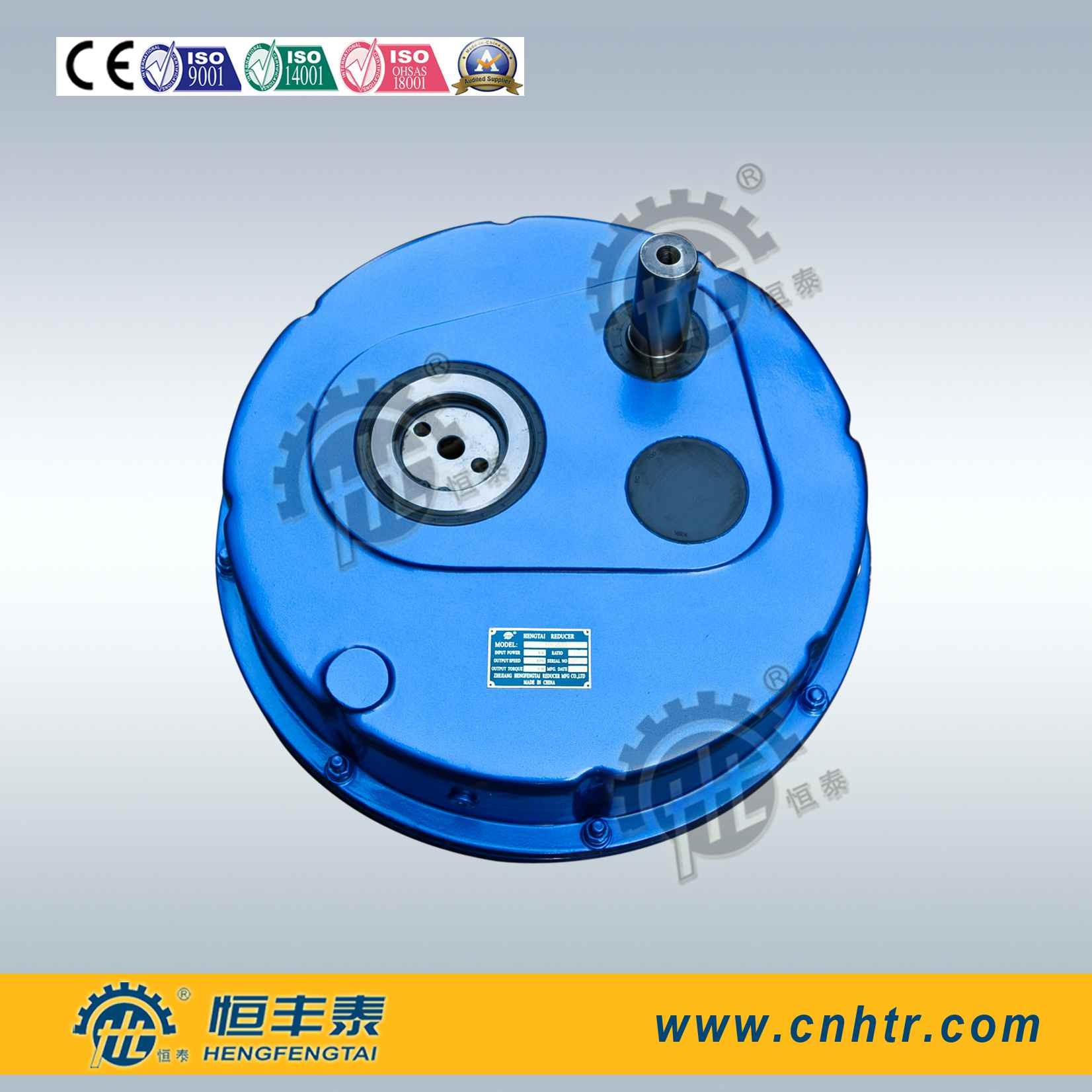

HXG40-45D Planetary Shaft Mounted Speed Reducer Gearbox With Clockwise Backlash

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008, TUV, SGS
Model Number HXG series
Minimum Order Quantity 10 PIECES
Price PLS REFER TO PRICE TABLE
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time DEPENDS ON QUANTITY
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
MOQ 10PCS Bearings SKF, NSK, HRB, ZWZ, Etc
Gears Hear Treatment Material For Gears 20CrMnTi
Material For Shaft 40Cr Color Blue
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Quick Details:





Model Number



HXG30-HXG125



Output shaft diameter



35-135MM



Ratio



 5-31



Input Speed



500-1400 RPM



Output Speed



15.1-280RPM



Rated Power



0.92-226 KW



Output Torque



180Nm-17000 N.m



Other Details:



·                                 Gearing Arrangement: Helical



·                                 Place of Origin: Zhejiang, China (Mainland)·



·                                 Brand Name: HENGTAI



·                                 Color: According to customer



·                                 Mounting position: Shaft mounted



·                                 Material for box: cast iron



·                                 Packing: Strong wooden cases for exporting



·                                 Output shaft: Hollow output shaft



·                                 Accessories: Backstop, Torque arm, etc







Why HXG shaft mounted reducer from Hengfengtai?



  1. Experience: 10years HXG shaft mounted reducer manufacturing and export experience provide with steady quality level.

Annual output 30000pcs HXG/TA export to Middle east,Africa,South America,Euro market familiar with all related import/export Custom Clearance documents helps save your cost.



  1. Model:All size available from HXG/TA30-125.Ratio from 5-30,hot sale ratio 15 fits all your needs.



  1. Package:1pcs packed in one small box with hook can easily pick up one by one. 8-12pcs packed in one standard export strong wooden crate can transport with fork easily.



  1. Surface painting: Perfect clean and high quality gearbox surface painting with inferior smooth grey color RAL7031 or RAL5010 or depends on your need.



  1. Spare parts: Machining with high precision CNC hobbing and CNC teeth grinding on gears and pinions.Perfect surface finish and high precision degree provides good reputation and bring you good profit.



HXG40-45D Planetary Shaft Mounted Speed Reducer Gearbox With Clockwise Backlash 0







Specifications:



Model

HXG30

HXG35

HXG40

HXG45

HXG50

HXG60

HXG70

HXG80

HXG100

HXG125

Permitted torque

180Nm

420Nm

950Nm

1400Nm

2300Nm

3600Nm

5100Nm

7000Nm

11000Nm

17000Nm





Applications

Ideal for screw conveyors, conveyor belts, processing plant

  • Luggage conveying
  • Fibre, paper processing and forestry industry
  • Mineral working and mining
  • Mixing
  • Grain processing & agriculture
