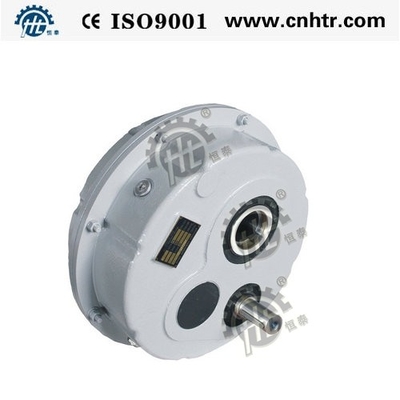

Torque Arm Electric Motor Gear Reducer High Speed Shaft mounted HXG Series 45-50D 30~125 mm shaft

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008, SGS, TUV
Model Number HXG series
Minimum Order Quantity 1 PIECES
Price USD180.00 ~ USD1700.00
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 7~25 days
Payment Terms T/T or LC
Supply Ability 4000 pcs/per month
Product Details
Sizes HXG35-125 Reduction Ratio 15/1
Application Concrete Mixing Station Belt Conveyor Bearings SKF, NSK, Etc
Housing Material QT250 Treatment For Gears Heat Treatment
Shaft Diameter 35~125 Mm Spares Backstop
High Light

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Description:



The HXG TA series - Shaft mounted reducer has long established itself in the industry until becoming a best seller for the quarry and mine applications where absolute reliability and low maintenance are key factors.

Also appreciated is the backstop option that prevents backdriving in case of incline conveyors.

Specification:

Model Number: Ta30-Ta125
Ta30-30D
Ta40-40D
Ta45-45D
Ta50-50D
Ta60-60D
Ta70-70D
Ta80-80D
Ta100-100D
Ta125-125


Output shaft hollow bore diameters:
30mm
40mm
45mm
50mm
60mm
70mm
80mm
100mm
125mm



Model Standard bore (mm) Rated power(KW) Rated torque(N.m)
HXG30 30 3 180
HXG35 35 5.5 420
HXG40 40; 45 15 950
HXG45 45; 50; 55 22.5 1400
HXG50 50; 55; 60 37 2300
HXG60 60; 65; 70 55 3600
HXG70 70; 85; 78 5100
HXG80 80; 100 110 7000
HXG100 100; 120 160 11000
HXG125 125; 135 200 17000



Ratio: 5; 13; 15; 20; 25; 30

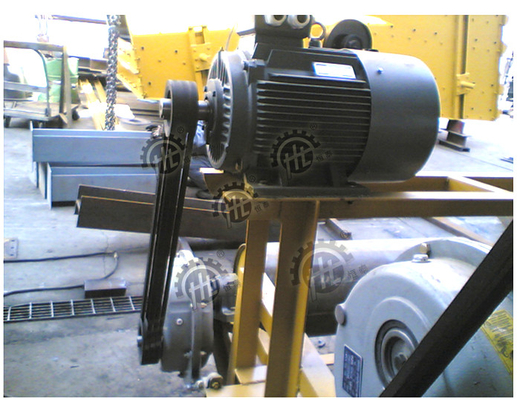

Stone Crushing Plant Equipments :

  • Vibrating Screen
  • Primary Crusher
  • Secondary Crusher
  • Belt Conveyors
  • Control Units
  • Drive Motor





FAQS:
1). Replace products: Bonfiglioli TA, Fenner SMSR, Sumitomo HSM, Challenge SMSR, Dodge···.

2). Delivery time: 15 days.

3).Payment: TT30%, TT 70%, L/C, cash, others.

4). Shipment: Ningbo, Shanghai, any port in China.

5). Warranty: 12-18 months.




Torque Arm Electric Motor Gear Reducer High Speed Shaft mounted HXG Series 45-50D 30~125 mm shaft 0

Torque Arm Electric Motor Gear Reducer High Speed Shaft mounted HXG Series 45-50D 30~125 mm shaft 1


Torque Arm Electric Motor Gear Reducer High Speed Shaft mounted HXG Series 45-50D 30~125 mm shaft 2
