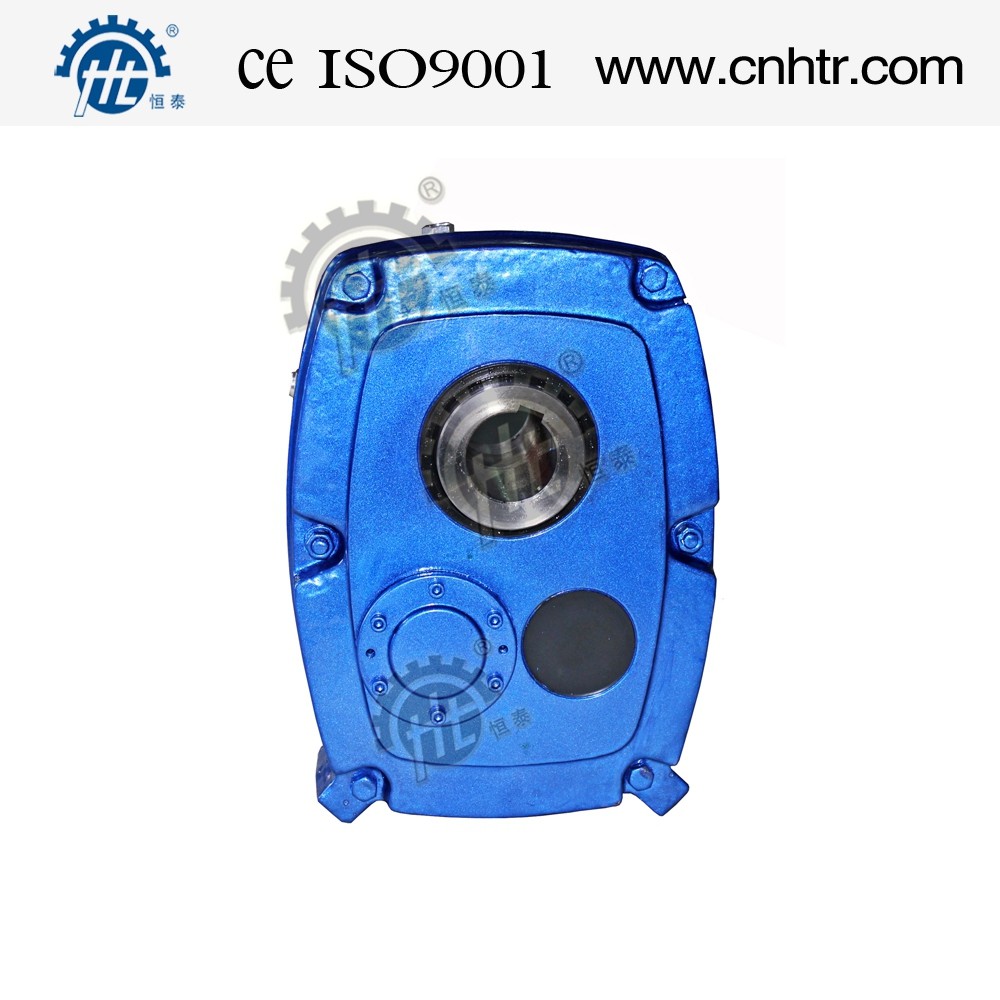

Hollow Shaft Mounted Speed Reducer Gearbox Gear Motor Alloy Steel
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXGF series |
| Minimum Order Quantity | 5pcs |
| Price | USD180-3500 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 30days |
| Payment Terms | T/T or LC |
| Supply Ability | 1000pcs/month |
Product Details
| Features | Flexible | Features | Flexible |
|---|---|---|---|
| Apply | Conveyor Belt | Input Shaft | Solid Shaft |
| Output Shaft | Hollow Output Shaft | Output Shaft | Hollow Output Shaft |
| Backstop | Available | Backstop | Available |
| Applications | Conveyor Belts | Applications | Conveyor Belts |
| High Light | hollow shaft gear reducer,Shaft mounted Gear Reducer |
||
Product Description
Hollow Shaft Mounted Speed Reducer Gearbox Gear Motor Alloy Steel
Descriptions:
Helical shaft mounted gear with Taper-Grip bushing
Quick details
| Torque: | 256 to 44.000 Nm |
| Ratios: | 5:1, 13:1, 20:1, 25:1 |
| Power: | 0.18 kW to 280 kW |
| Sizes: | 103 to 608 |
| Bore sizes: | 30 to 190 mm, optionally in inches |
| Mounting: | Vertical, Horizontal, and Direct drive mounting configurations |
| Lubrication: | Oil lubrication, synthetic lubricant optional |
| Housing: | Grey cast iron |
Features
- Higher power through 25° pressure angle and wider gear teeth for maximum torque
- Taper-Grip bushing without key for simple fitting and removing
- High performance roller bearings for higher loads and longer life
- Standard bores Taper-Grip bushings and reducing bushes
- Screw conveyor options
- Optional Taconite seals
- Exchangeable with all types according to AGMA
- Flexible motor fitment
- Backstops
|
OUTPUT |
B5 |
C5 |
D5 |
E5 |
F5 |
G5 |
H5 |
J5 |
|
50 |
1.35 |
2.50 |
3.85 |
5.55 |
8.30 |
12.10 |
19.30 |
31.50 |
|
100 |
2.69 |
4.60 |
6.30 |
11.20 |
16.50 |
25.20 |
39.00 |
61.00 |
|
150 |
3.60 |
5.70 |
8.90 |
14..00 |
20.00 |
35.00 |
50.40 |
78.00 |
|
200 |
4.30 |
6.70 |
10.50 |
16.60 |
24.00 |
40.00 |
60.00 |
93.00 |
|
250 |
4.60 |
7.70 |
12.00 |
18.00 |
27.50 |
46.00 |
68.00 |
107.0 |
|
OUTPUT |
B13 |
C13 |
D13 |
E13 |
F13 |
G13 |
H13 |
J13 |
|
10 |
0.29 |
0.50 |
0.80 |
1.30 |
1.90 |
3.30 |
4.70 |
7.45 |
|
20 |
0.60 |
1.10 |
1.70 |
2.50 |
4.10 |
7.00 |
10.00 |
15.80 |
|
30 |
0.80 |
1.70 |
2.60 |
4.20 |
6.20 |
10.50 |
15.00 |
24.00 |
|
40 |
1.15 |
2.20 |
3.50 |
5.50 |
8.10 |
14.00 |
20.00 |
31.00 |
|
50 |
1.40 |
2.50 |
4.00 |
6.30 |
9.40 |
16.00 |
23.00 |
36.00 |
|
60 |
1.70 |
3.00 |
4.70 |
7.40 |
11.10 |
19.00 |
27.00 |
42.5 |
|
70 |
1.90 |
3.30 |
5.20 |
8.25 |
12.10 |
21.00 |
30.00 |
46.00 |
|
80 |
2.20 |
3.90 |
6.15 |
9.65 |
14.20 |
24.50 |
35.00 |
54.00 |
|
90 |
2.40 |
4.40 |
6.80 |
10.70 |
15.70 |
27.00 |
39.00 |
60.00 |
|
100 |
2.70 |
4.60 |
7.20 |
11.30 |
16.60 |
28.50 |
41.00 |
63.50 |
|
TORQUE |
275 |
510 |
810 |
1270 |
1865 |
3230 |
4650 |
7100 |
|
TORQUE |
260 |
420 |
740 |
1120 |
1790 |
2950 |
4550 |
6600 |

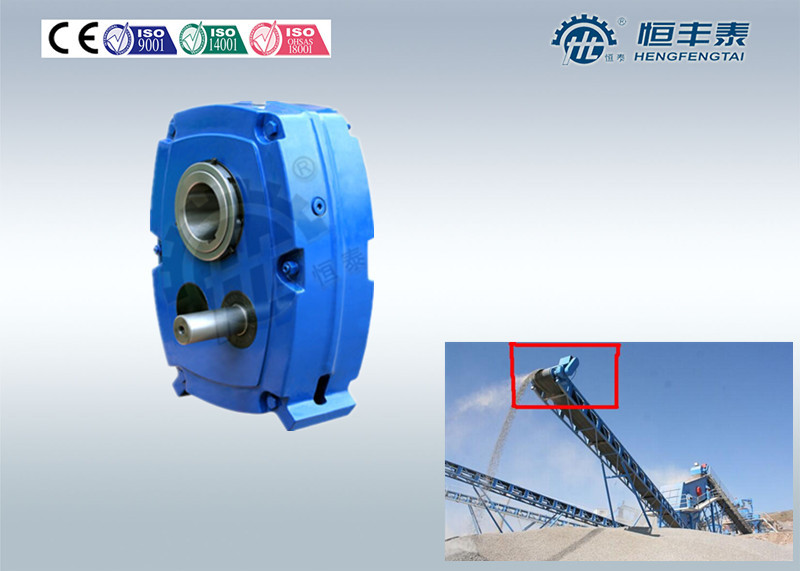

Applications
Ideal for screw conveyors, conveyor belts, processing plant
Luggage conveying
Fibre, paper processing and forestry industry
Mineral working and mining
MixingGrain processing & agriculture
Stationary Crushing Plant
HPC Cone Crusher
Deep Rotor VSI Crusher
