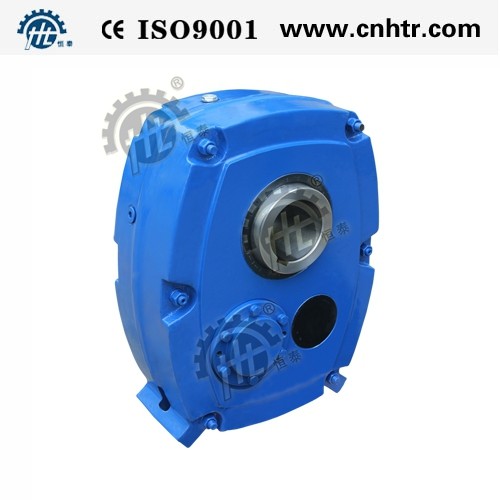

Servo Shaft Mounted Speed Reducer Conveyor SMSR Series High Precision
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXGF series |
| Minimum Order Quantity | FIVE PIECES |
| Price | PLS REFER TO PRICE TABLE |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | DEPENDS ON QUANTITY |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| High Light | hollow shaft gear reducer,Shaft mounted Gear Reducer |
||
|---|---|---|---|
Product Description
Servo Shaft Mounted Speed Reducer Conveyor SMSR Series High Precision
Descriptions:
- Sizes: The “HXGF” Speed Reducers Are Manufactured In Different 8 Sizes And Designated By The Letter “B” To “J”. (B- C – D – E – F – G - H -J)
- Ratios: These 8 Sizes May Have Nominal Ratios 05:1, 13:1, 20:1.
Quick details
| Torque: | 256 to 44.000 Nm |
| Ratios: | 5:1, 13:1, 20:1, 25:1 |
| Power: | 0.18 kW to 280 kW |
| Sizes: | 103 to 608 |
| Bore sizes: | 30 to 190 mm, optionally in inches |
| Mounting: | Vertical, Horizontal, and Direct drive mounting configurations |
| Lubrication: | Oil lubrication, synthetic lubricant optional |
| Housing: | Grey cast iron |
Product description
Features:
Quick & easy installation and adjustment of gearbox. (Elimination of foundations)
- Various ranges of output RPM and power requirements with durability.
- Low power consumption and provide high range of torque.
- Flexible motor mounted in a convenient position.
- High efficiency and low maintenance.
Applications
Ideal for screw conveyors, conveyor belts, processing plant
- Luggage conveying
- Fibre, paper processing and forestry industry
- Mineral working and mining
- Mixing
- Grain processing & agriculture
SMSR Gearbox Are Totally Enclosed And Consist Of Hardened & Precision Machined Alloy Steel Gears Mounted On Highly Finished Shafts Supported On Long Life Bearings Of Capacity To Take Maximum Load. Two Piece Close Grain C.I. Housing Provide Sturdy Support And Insures Permanent Accurate Alignment Of All Components.
Shaft Mounted Gear Box Are Widely Used In Conveyors In Crushing Plants In Mining And Quarry Plants.
Conveyor System Mechanical Equipment Conveyor, Crusher, Feeders, Screen,
Low power consumption and provide high range of torque.
- Flexible motor mounted in a convenient position.
- High efficiency and low maintenance.
Specifications:
|
Dimension(mm) |
HXGF Size |
|||||||
|
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
|
|
Standard size of shaft |
30 |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
|
Alternative size of shaft |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
120 |
|
Input shaft keyway |
6x3.5x50 |
6x3.5x59 |
8x4x63 |
8x4x70 |
10x5x70 |
12x5x90 |
14x5.5x100 |
16x6x100 |
The way of mounting:
Permitted Torque:
|
Model(single/double) |
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
||||||||
|
Nm(100rpm) |
256 |
277 |
401 |
468 |
632 |
783 |
983 |
1194 |
1444 |
1881 |
2407 |
2970 |
3457 |
4380 |
5940 |
7449 |
