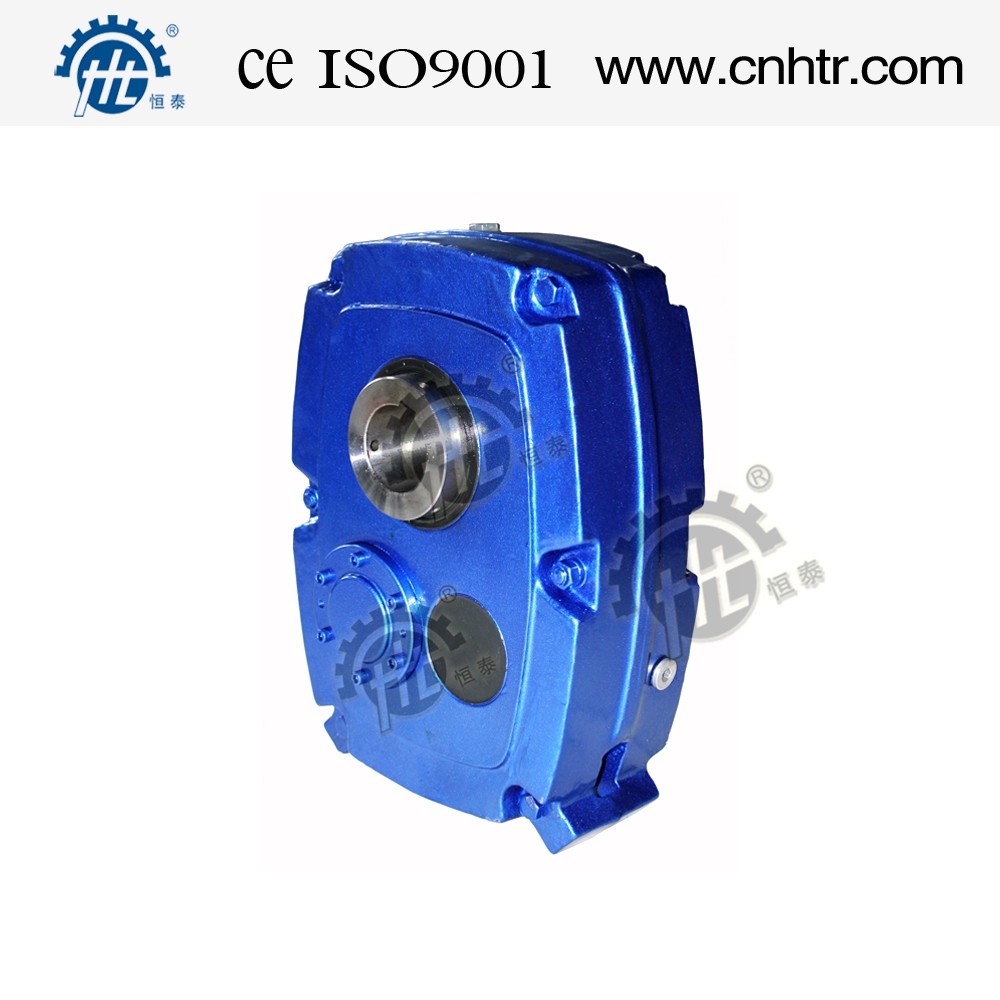

Aggregate SMSR Power Transmission Gearbox with High Speed
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXGF series |
| Minimum Order Quantity | FIVE PIECES |
| Price | PLS REFER TO PRICE TABLE |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | DEPENDS ON QUANTITY |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| High Light | hollow shaft gear reducer,Shaft mounted Gear Reducer |
||
|---|---|---|---|
Product Description
Aggregate SMSR Power Transmission Gearbox with High Speed
Descriptions:
- Sizes: The “HXGF” Speed Reducers Are Manufactured In Different 8 Sizes And Designated By The Letter “B” To “J”. (B- C – D – E – F – G - H -J)
- Ratios: These 8 Sizes May Have Nominal Ratios
- 05:1, 13:1, 20:1.
Quick details
| Torque: | 256 to 44.000 Nm |
| Ratios: | 5:1, 13:1, 20:1, 25:1 |
| Power: | 0.18 kW to 280 kW |
| Sizes: | 103 to 608 |
| Bore sizes: | 30 to 190 mm, optionally in inches |
| Mounting: | Vertical, Horizontal, and Direct drive mounting configurations |
| Lubrication: | Oil lubrication, synthetic lubricant optional |
| Housing: | Grey cast iron |
Product description
Available for AGMA size 107 Through 407.
Assembles to standard reducer,n o modifications required.
Output Features:
- Three hole,steel and optional carbon steel shaft
- Higher ratings with a 25 degree pressure angle and wider gear tooth face for max torque
- Keyless shaft connection with bushing
- Heavy duty roller bearings for max strength and extended life
- CEMA standard bore sizes
- Backstops
Applications
Ideal for screw conveyors, conveyor belts, processing plant
- Luggage conveying
- Fibre, paper processing and forestry industry
- Mineral working and mining
- Mixing
- Grain processing & agriculture
Specifications:
|
Dimension(mm) |
HXGF Size |
|||||||
|
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
|
|
Standard size of shaft |
30 |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
|
Alternative size of shaft |
40 |
50 |
55 |
65 |
75 |
85 |
100 |
120 |
|
Input shaft keyway |
6x3.5x50 |
6x3.5x59 |
8x4x63 |
8x4x70 |
10x5x70 |
12x5x90 |
14x5.5x100 |
16x6x100 |
The way of mounting:
Permitted Torque:
|
Model(single/double) |
HXGF30 |
HXGF40 |
HXGF50 |
HXGF55 |
HXGF65 |
HXGF75 |
HXGF85 |
HXGF100 |
||||||||
|
Nm(100rpm) |
256 |
277 |
401 |
468 |
632 |
783 |
983 |
1194 |
1444 |
1881 |
2407 |
2970 |
3457 |
4380 |
5940 |
7449 |
