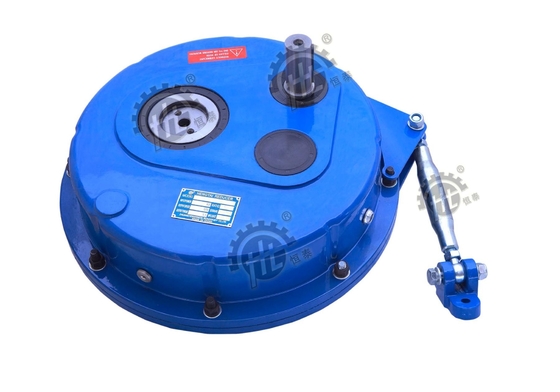

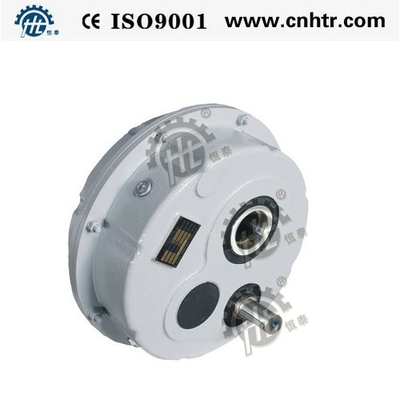

HXG35-125 Shaft Mounted Speed Reducer Conveyor Gearbox For Jaw Crusher Spare Parts
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | Hengtai Reducer |
| Certification | CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS |
| Model Number | HXG35-125 |
| Minimum Order Quantity | 1 Pieces |
| Price | USD 100-1600 |
| Packaging Details | Wooden Case, Standard Export Package |
| Delivery Time | 15~30 Days |
| Payment Terms | T/T; L/C |
| Supply Ability | 5000 Pieces per Month |
Product Details
| Ratio | 15/1,20/1 | Output Bore | 35-135mm |
|---|---|---|---|
| Material For Housing | HT250 | Models | Hxg35, 40,45,50,60,70,80,100,125 |
| Color | Blue, Grey | Application | Mining |
| High Light | shaft mounted gearbox,Shaft mounted Gear Reducer |
||
Product Description
Quick Details for HXG35-HXG125:
|
Trade Mark
|
Hengtai Gearbox |
|
Gear Arrangement
|
Helical gearbox |
|
Mounting Position
|
Shaft Mounted |
|
Output Torque
|
180-17000 N.M |
|
Rated Power
|
0.92-110 Kw |
|
Transmission Ratio
|
5- 31 |
|
Input Speed
|
500-1400 Rpm |
|
Color
|
Ral 5010& 7031& 7040 |
Specification:
|
Model
|
HXG30 | HXG35 | HXG40 | HXG45 | HXG50 |
|
Permitted Torque (Nm)
|
180 | 420 | 950 | 1400 | 2300 |
|
Model
|
HXG60 | HXG70 | HXG80 | HXG100 | HXG125 |
|
Permitted Torque (Nm)
|
360 | 5100 | 7000 | 11000 | 17000 |
|
HXG shaft mounted reducer |
Output shaft bore |
Ratio(i) |
Rated torque |
|
HXG30 |
Φ30mm |
7, 10, 12.5 |
180Nm |
|
HXG35 |
Φ35 mm |
5,10,15,20,25 |
420Nm |
|
HXG40 |
Φ40 mm |
5,10,12.5,15,20,25 |
900Nm |
|
Φ45 mm |
|||
|
HXG45 |
Φ45 mm |
5,10,12.5,15,20,25 |
1400Nm |
|
Φ50 mm |
|||
|
Φ55 mm |
|||
|
HXG50 |
Φ50 mm |
5,10,12.5,15,20,25 |
2300Nm |
|
Φ55 mm |
|||
|
Φ60 mm |
|||
|
HXG60 |
Φ60 mm |
5,10,12.5,15,20,25 |
3600Nm |
|
Φ70 mm |
|||
|
HXG70 |
Φ70 mm |
5,10,12.5,15,20,25,31 |
5100Nm |
|
Φ85 mm |
|||
|
HXG80 |
Φ80 mm |
5,10,12.5,15,20,25,31 |
7000Nm |
|
Φ100 mm |
|||
|
HXG100 |
Φ100 mm |
5,10,12.5,15,20,25,31 |
11000Nm |
|
Φ125 mm |
|||
|
HXG125 |
Φ125 mm |
5,10,12.5,15,20,25,31 |
17000Nm |
|
Φ135 mm |
|||
