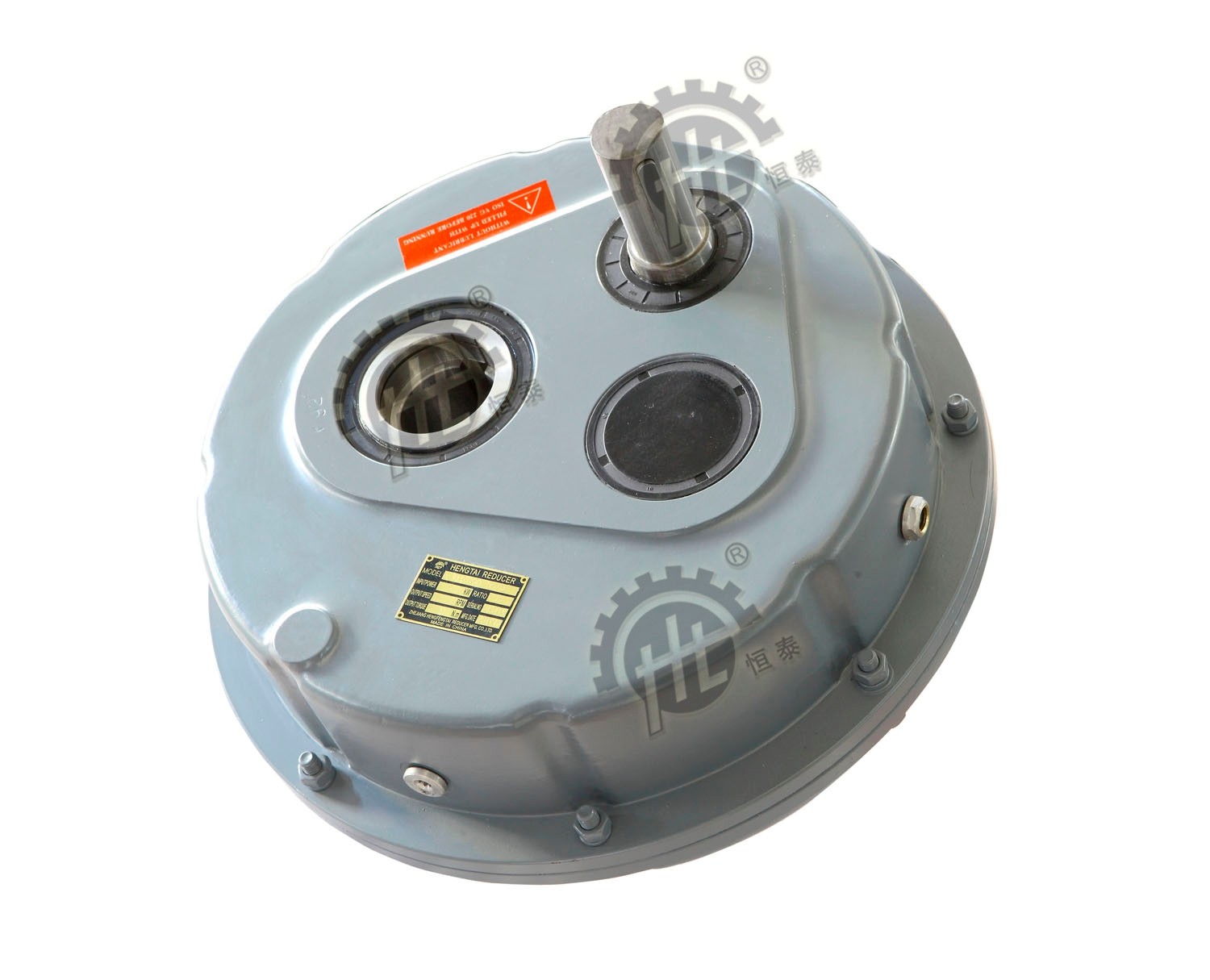

HXG Hollow Shaft Mounted Speed Reducer With Vibrating Screening Accessory

  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengfengtai
Certification ISO9001,CE, SGS
Model Number HXG45-50D
Minimum Order Quantity 100 Pieces
Price $200/PCS
Packaging Details Strong Wooden case and pallet
Delivery Time 20-25days
Payment Terms T/T in advance
Supply Ability 1000pcs/month
Product Details
Hardness Of Gear 58-62HRC Hardness HRC58-62
Applications Crusher Plant Shaft Material 40Cr
Name Shaft Mounted Speed Reducer Feature Round Type
High Light

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

Specifications:


Ratio: 5, 7, 10, 12.5, 15, 20, 25, 31 (for each model)


Gear frame size 30 35 40 45 50 60 70 80 100 125
Input shaft diameter:19mm, 24mm,28mm,38mm,42mm,48mm,55mm,60mm
Output shaft bore diameter: 30mm 35mm 40mm 45mm 50mm 60mm 70mm 80mm 100mm 125mm 135mm


Model Number


Input shaft Diameter

Output shaft hollow bore diameters:


Output torque
range

Torque arm length

Input Speed

Reduction Ratio:


Hxg35-35D


19mm

30mm


1000Nm

220mm






1400rpm


900rpm


500rpm


5:1

7:1

10:1

12.5:1

15:1

20:1

25:1

31:1


Hxg40-40D


24mm

40mm


1350Nm

240mm

Hxg45-45D


28mm

45mm


2050Nm

260mm

Hxg50-50D


42mm

50mm


2100Nm

280mm

Hxg60-60D


48mm

60mm


3500Nm

300mm

Hxg70-70D


48mm

70mm


4900Nm

320mm

Hxf80-80D


55mm

80mm


6600Nm

380mm

Hxg100-100D


55mm

100mm


10500Nm

520mm

Hxg124-125D


60mm

125mm


16000Nm

560mm


Tension arm:

TA 35 Length min200mm-max300mm
TA40 Length min210mm-max310mm
TA50 Length min240mm-max360mm
TA50 Length min210mm-max310mm
TA60 Length min260mm-max410mm
TA70 Length min260mm-max410mm
TA80 Length min260mm-max410mm
TA100 Length min340mm-max560mm
TA125 Length min340mm-max560mm


Accessories:

Anti-run back device
A-with anti-run back device
- without anti-run back device

Application:

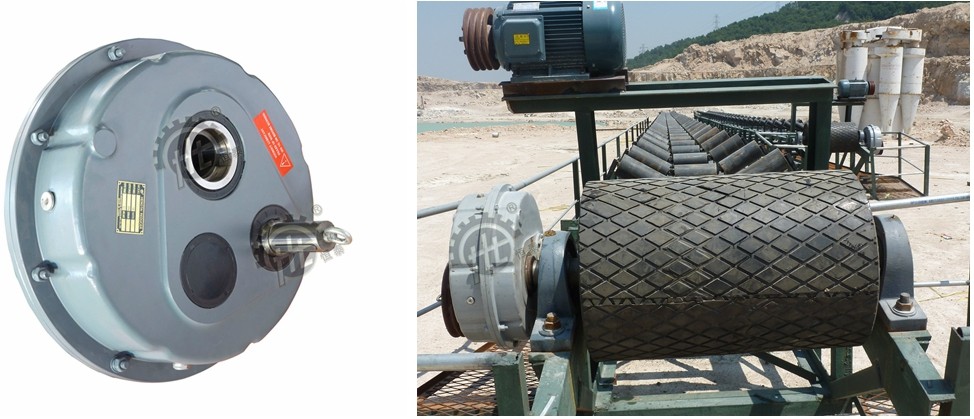

Conveyors, components and spare parts for stone crushing plants, cement factories, sand washing plants, concrete batching plants, automatic block factories, ceramic factories, fertilizer factories and for the material handling requirements Stone Crusher Units.
HXG Hollow Shaft Mounted Speed Reducer With Vibrating Screening Accessory 0


HXG Hollow Shaft Mounted Speed Reducer With Vibrating Screening Accessory 1HXG Hollow Shaft Mounted Speed Reducer With Vibrating Screening Accessory 2
