Torque 7000Nm Helical Gear Reducer 2 Shaft Shredder Heavy Duty

  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name Hengtai
Certification CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number HH Series Helical Gear Reducer
Minimum Order Quantity 1 Pieces
Price USD 100-1700
Packaging Details Wooden Case, Standard Export Package
Delivery Time 40 Days
Payment Terms T/T; L/C
Supply Ability 500 Pieces Per Month
Product Details
Shaft Hollow Stage 2 Stage
Modela 1-26 Reduction 1,2,3,4
Gear Type Helical,bevel Trade Mark Hengtai Gearbox
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Torque 7000Nm Helical Gear Reducer 2 Shaft Shredder Heavy Duty





Quick Details:





Trade Mark



 Hengtai Gearbox



Gear Arrangement



 Helical Gear Reducer



Mounting Position



 Foot/ hollow(keyed )



Output Speed



 1.7-1200 Rpm



Output Torque



 2-900 KN.M



Rated Power



 4.3-450 Kw



Transmission Ratio



 1.25-450





Description:



Material:


Housing:     HT250 cast iron




Bearing:      42CrMo




Gear:            20CrMnTi H,



high grade alloy with carburization,



surface hardness: 58-62HRC,



center hardness: 33-48HRC


Grinding precision grade: ISO1328-1: 1995 class 5-6,



Surface finish: 0.8, carburization depth: 0.6-1.5mm






Type

Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

B Series Bevel-helical Gear Unit

Double-stage

4--18

5--14

41-4,436

5,800-226,000

S. Solid Shaft                                   H. Hollow Shaft                                 D.Hollow Shaft for Shrink Disk

H:Horizontal   V:Vertical M:Horizontal Design Without Feet

Three-Stage

4--26

12.5-90

62-4,452

70,100-952,000

Four-Stage

5--26

80-400

2.6-1,652

10.6-945,000







Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

Single-stage

3--19

1.25--5.6

30-4,744

2,200-165,300

S. Solid Shaft

H. Hollow Shaft

D. Hollow Shaft for Shrink Disk

H: Horizontal

V: Vertical

M: Horizontal Design Without Feet

Double-stage

4--26

6.3--28

21-5,193

5,900-843,000

Three-Stage

5--26

22.4--112

9-4,749

10,600-952,000

Four-Stage

7--26

100--450

4.1-1,325

18,400-944,000





Your benefits:


1. All input/ output shafts are plated so that can prevent them to rusting.



2. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is safe from



contamination.


3. High efficiency.


Our gear reducer units now are in higher load capacity as the gears have been redesigned.


4. Strong capacity of being overloaded.


Our gear reducer units now are in higher load capacity as the gears have been redesigned.


5. Long service life.


Life of main parts of gear reducer (except wearing parts) should not be less than 20, 000 hours.

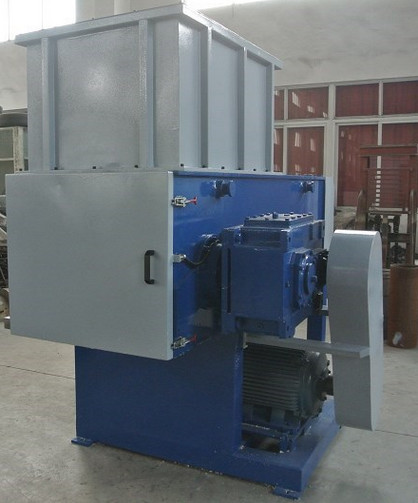

Torque 7000Nm Helical Gear Reducer 2 Shaft Shredder Heavy Duty 0

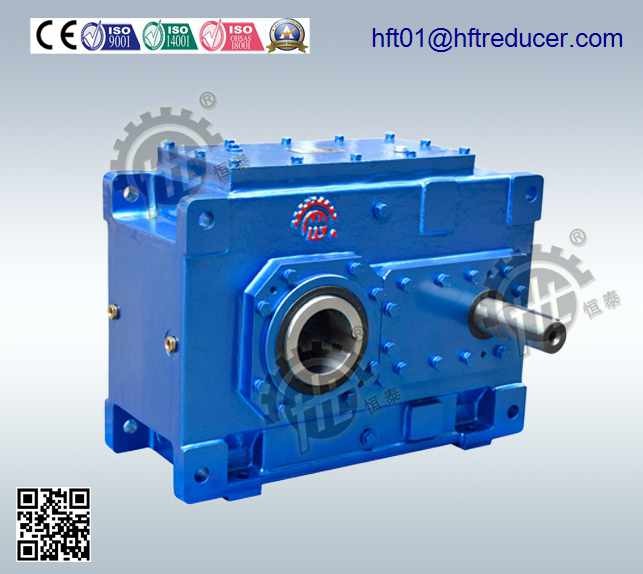

Torque 7000Nm Helical Gear Reducer 2 Shaft Shredder Heavy Duty 1
