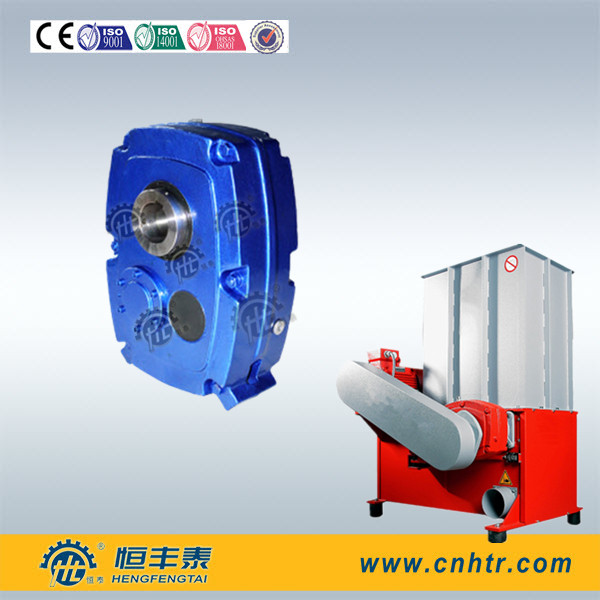

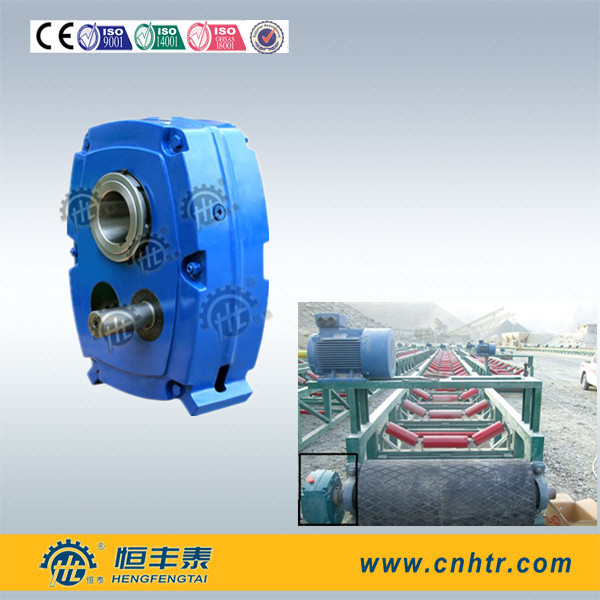

HXGF / SMSR Helical Gearbox Hollow Shaft Gear Reducer Transmission

  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name Hengtai
Certification CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number Hengtai Helical Gear Reducer HXGF30-100
Minimum Order Quantity 10 Pieces
Price USD 100-1000
Packaging Details Wooden Case, Standard Export Package
Delivery Time 20 Days
Payment Terms T/T; L/C
Supply Ability 200 Pieces Per Month
Product Details
Loading Capability 110~7400 N.m Input Power 0.18~45 KW
Ratio 5~20 Output Speed 30~350 Rpm
Shaft Diameter 30~120 Mm Spares Torque Arm / Extension Rods
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

HXGF / SMSR Helical Gearbox Hollow Shaft Gear Reducer Transmission





Related questions:





Trade Mark



Hengtai Gearbox



Gear Arrangement



Shaft Mounted Gearbox



Mounting Position



Shaft Mounted



Output Torque



180-17000 N.M



Rated Power



0.92-226 Kw



Transmission Ratio



5- 31



Output Shaft



Keyed Hollow Output Shaft



Color



Ral 5010& 7031& 7040





Description:



This Helical Gear Reducer For Material Vibrating Screen , Feeder Gearbox is wildly used in mining conveyor fields



such as Jaw Crusher conveyor gearbox, Stone Crusher conveyor gearbox, Impact crusher conveyor



gearbox, Material Vibrating Screen conveyor gearbox, Material Feeder conveyor gearbox and so on.





Power selection table:

OUTPUT
RPM

B5

C5

D5

E5

F5

G5

H5

J5

50

1.35

2.50

3.85

5.55

8.30

12.10

19.30

31.50

100

2.69

4.60

6.30

11.20

16.50

25.20

39.00

61.00

150

3.60

5.70

8.90

14..00

20.00

35.00

50.40

78.00

200

4.30

6.70

10.50

16.60

24.00

40.00

60.00

93.00

250

4.60

7.70

12.00

18.00

27.50

46.00

68.00

107.0

OUTPUT
RPM

B13
B20

C13
C20

D13
D20

E13
E20

F13
F20

G13
G20

H13
H20

J13
J20

10

0.29

0.50

0.80

1.30

1.90

3.30

4.70

7.45

20

0.60

1.10

1.70

2.50

4.10

7.00

10.00

15.80

30

0.80

1.70

2.60

4.20

6.20

10.50

15.00

24.00

40

1.15

2.20

3.50

5.50

8.10

14.00

20.00

31.00

50

1.40

2.50

4.00

6.30

9.40

16.00

23.00

36.00

60

1.70

3.00

4.70

7.40

11.10

19.00

27.00

42.5

70

1.90

3.30

5.20

8.25

12.10

21.00

30.00

46.00

80

2.20

3.90

6.15

9.65

14.20

24.50

35.00

54.00

90

2.40

4.40

6.80

10.70

15.70

27.00

39.00

60.00

100

2.70

4.60

7.20

11.30

16.60

28.50

41.00

63.50

TORQUE
AT 10RPM
 in NM

275

510

810

1270

1865

3230

4650

7100

TORQUE
AT 70 RPM
in NM

260

420

740

1120

1790

2950

4550

6600







Applications:



Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:

Baggage handing

Pulp, paper, and forestry

Aggregate and mining

Mixers and process equipment

Grain and agriculture
