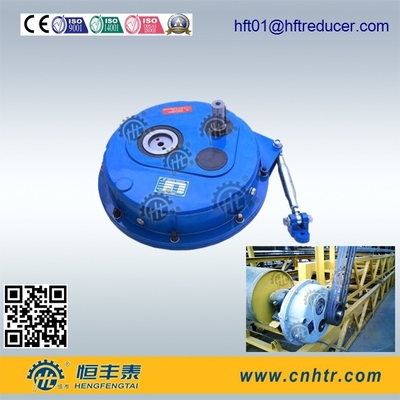

Conveyor Belt Crusher Mining HXG(TA) Shaft Mounted Gearbox With Ratio 15 25 30
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE; ISO9001;TUV; SGS |
| Model Number | HXG type |
| Minimum Order Quantity | 1 Pieces |
| Price | USD 120-2500 |
| Packaging Details | Wooden Case, Standard Export Package for HXG |
| Delivery Time | 15 Days |
| Payment Terms | T/T; L/C |
| Supply Ability | 500 Pieces Per Month |
Product Details
| Export Area | Saudi Arabia, Jordan, Morroco···, Middle East, Africa, Asia | Model | Hxg 50-50,Hxg60-60,Hxg70-70,Hxg80-80,Hxg100-100 |
|---|---|---|---|
| Color | Ral5010, Ral7040 | Application | Crusher Conveyor Belt |
| Ratio Range | 15:1, 25:1, 30:1 | Output Shaft | 35~125 Mm |
| High Light | hollow shaft gear reducer,Shaft mounted Gear Reducer |
||
Product Description
Quick Details of shaft mounted gearbox :
|
Torque range (n1 = 900 min-1) |
150 Nm … 16.000 Nm |
|
Mechanical rating (n1 = 900 min-1) |
1, 1 kW … 156 kW |
|
Gear ratios |
iN = 5, 0 … 31, 5 |
|
Output shaft |
Keyed hollow shaft Upto three bore options per frame size |
|
Gearcase |
Sturdy cast housing suitable for outdoor installation |
|
Backstop |
Available on all frame sizes – externally accessible |
Models:
|
Model Number |
Input shaft Diameter |
Output shaft hollow bore diameters: |
Output torque |
Torque arm length |
Input Speed |
Reduction Ratio: |
|
Hxg35-35D |
19mm |
30mm |
1000Nm |
220mm |
|
|
|
Hxg40-40D |
24mm |
40mm |
1350Nm |
240mm |
||
|
Hxg45-45D |
28mm |
45mm |
2050Nm |
260mm |
||
|
Hxg50-50D |
42mm |
50mm |
2100Nm |
280mm |
||
|
Hxg60-60D |
48mm |
60mm |
3500Nm |
300mm |
||
|
Hxg70-70D |
48mm |
70mm |
4900Nm |
320mm |
||
|
Hxf80-80D |
55mm |
80mm |
6600Nm |
380mm |
||
|
Hxg100-100D |
55mm |
100mm |
10500Nm |
520mm |
||
|
Hxg124-125D |
60mm |
125mm |
16000Nm |
560mm |
Material:
| Material Data | ||
|
Housing |
HT 250 Cast Iron |
|
|
Bearing |
42 CrMo |
|
|
Gear |
Material |
20 CrMnTi |
|
Hardness |
Surface hardness: 58-62 HRC | |
| Center hardness: 33-48 HRC | ||
|
Carburization Depth |
0.6-1.5 Mm | |
|
Grinding Precision Grade |
ISO1328-1: 1995 Class 5-6, | |
|
Surface Finish |
0.8 | |
Your benefits:
1.Experience: 24years HXG shaft mounted reducer manufacturing and export experience provide with steady quality level.
Annual output 30000pcs HXG/TA export to Middle east,Africa,South America,Euro market familiar with all related import/export Custom Clearance documents helps save your cost.
2.Model:All size available from HXG/TA30-125.Ratio from 5-30,hot sale ratio 15 fits all your needs.
3.Package:1pcs packed in one small box with hook can easily pick up one by one. 8-12pcs packed in one standard export strong wooden crate can transport with fork easily.
4.Surface painting: Perfect clean and high quality gearbox surface painting with inferior smooth grey color RAL7031 or RAL5010 or depends on your need.
5.Spare parts: Machining with high precision CNC hobbing and CNC teeth grinding on gears and pinions.Perfect surface finish and high precision degree provides good reputation and bring you good profit.
Application:
Shaft Mounted Gear Box Are Widely Used In Conveyors In Crushing Plants In Mining And Quarry Plants.
Conveyor System Mechanical Equipment Conveyor, Crusher, Feeders, Screen,
bulk material handling equipment supplier specializing in designing, fabricating and installing Crushing- & Screening plants, conveyor systems for bulk material, port handling equipment.
Our equipment has earned a reputation for strength and endurance which has made it the first choice for heavy duty mining and quarrying applications in MENA region.
