TA Shaft Mounted Power Transmission Gearbox / Drill Gear Reducer With Tie Rod

  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name HENGTAI
Certification CE,TUV,SGS,ISO, etc
Model Number TA 30-125
Minimum Order Quantity 100 Pieces
Price USD 100-2000
Packaging Details Standard export package for TA
Delivery Time 30 Days
Payment Terms T/T; L/C
Supply Ability 200 Pieces per Month
Product Details
Input Shaft 20CrMnTi Gear 20CrMnTi
Oil 220 Weight Up To 129kg
Name Shaft Mounted Gearbox Color Ral 5010& 7031& 7040
High Light

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

 Quick Details:







Place of Orign



Zhejiang, China



Trade Mark



Hengtai Gearbox



Mounting Position



Shaft Mounted



Color



Ral 5010& 7031& 7040



Certification



CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS



Packing Detials



Wooden Case,

Standard Export Package







Description:



Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Hxg35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Hxg40-40D



24mm

40mm



1350Nm

240mm

Hxg45-45D



28mm

45mm



2050Nm

260mm

Hxg50-50D



42mm

50mm



2100Nm

280mm

Hxg60-60D



48mm

60mm



3500Nm

300mm

Hxg70-70D



48mm

70mm



4900Nm

320mm

Hxf80-80D



55mm

80mm



6600Nm

380mm

Hxg100-100D



55mm

100mm



10500Nm

520mm

Hxg124-125D



60mm

125mm



16000Nm

560mm


Specification:







Model



 HXG30 HXG35 HXG40 HXG45 HXG50



Permitted Torque (Nm)



 180 420 950 1400 2300



Model



 HXG60 HXG70 HXG80 HXG100 HXG125



Permitted Torque (Nm)



 360 5100 7000 11000 17000




Your benefits:


1. Simple structure and convenient to be installed and maintained


2. Small volume


3. Widely application


4. All input/ output shafts are plated so that can prevent them to rusting.


5. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is



safe from contamination.


6. High efficiency.

Our gearbox units now are in higher load capacity as the gears have been redesigned.


7. Strong capacity of being overloaded.

Our gearbox units now are in higher load capacity as the gears have been redesigned.


8. Long service life.

Life of main parts of gearbox (except wearing parts) should not be less than 20, 000 hours.


9. Anti-leaking oil.

The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.




Application:

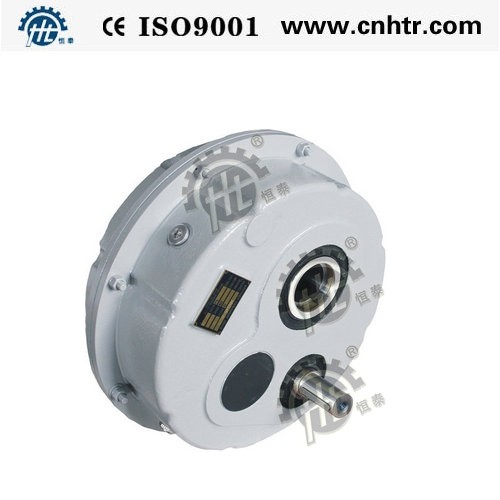

TA Shaft Mounted Power Transmission Gearbox / Drill Gear Reducer With Tie Rod 0

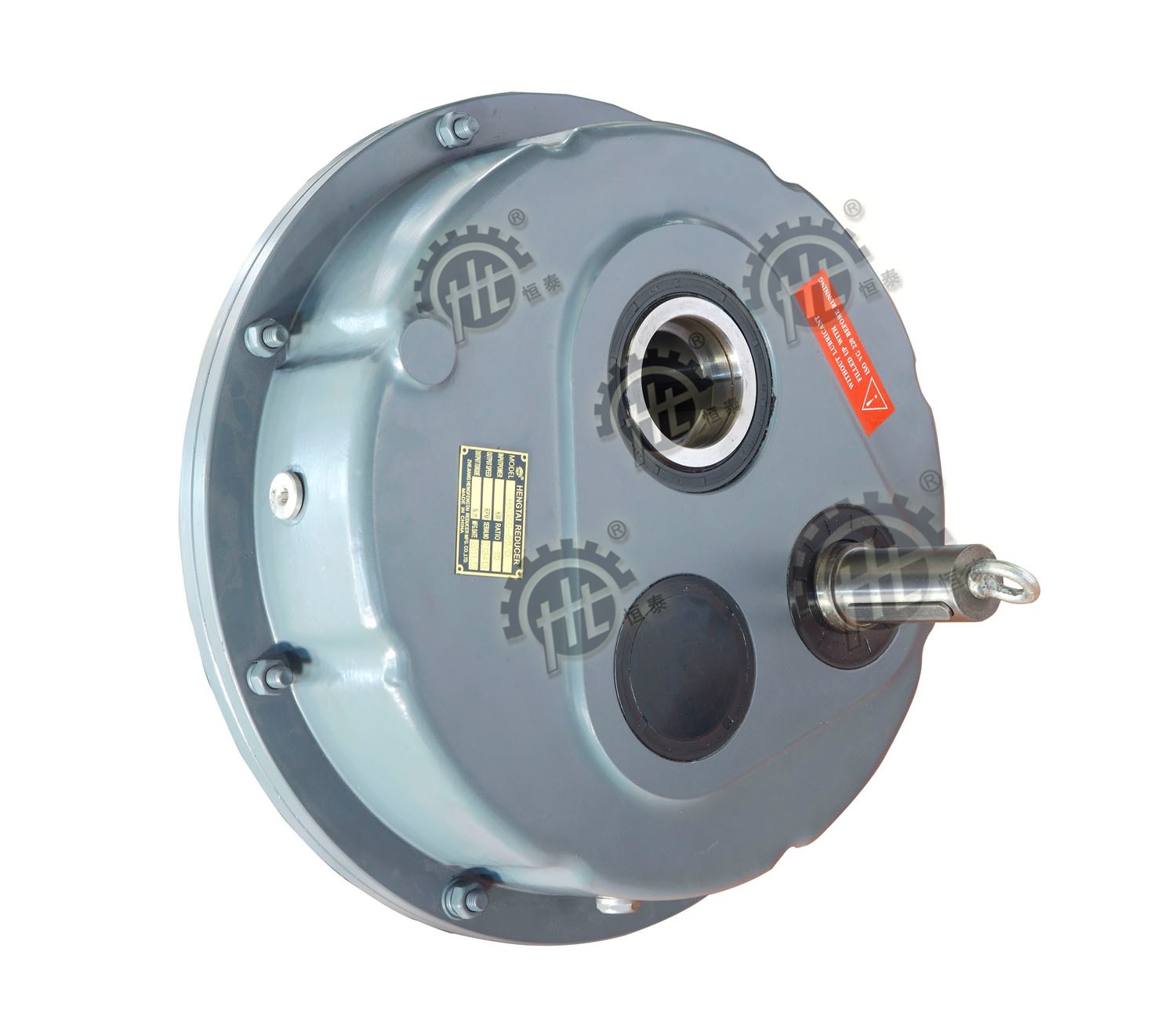

TA Shaft Mounted Power Transmission Gearbox / Drill Gear Reducer With Tie Rod 1
