Small Helical Gear Reducer 45Kw Electric Motor For Conveyor Belt Gearbox

  • img.alt
  • img.alt
Model Number HXG 30-125
Minimum Order Quantity 10 Pieces
Price USD 100-1700
Packaging Details 1pcs packed in small box,7-8 small boxes packed in one crate with pallet.
Delivery Time 20 Days
Payment Terms T/T; L/C
Supply Ability 800 Pieces per Month
Product Details
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Small Helical Gear Reducer 45Kw Electric Motor For Conveyor Belt Gearbox





Quick Details:





Place of Orign



Zhejiang, China



Trade Mark



Hengtai Gearbox



Mounting Position



Shaft Mounted



Color



Ral 5010& 7031& 7040



Certification



CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS



Packing Detials



Wooden Case,

Standard Export Package





Description:



Jaw Crusher conveyor gearbox, Stone Crusher conveyor gearbox, Impact Crusher conveyor gearbox,



Material Vibrating Screen conveyor gearbox, Material Feeder conveyor gearbox and so on.


Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Ta35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Ta40-40D



24mm

40mm



1350Nm

240mm

Ta45-45D



28mm

45mm



2050Nm

260mm

Ta50-50D



42mm

50mm



2100Nm

280mm

Ta60-60D



48mm

60mm



3500Nm

300mm

Ta70-70D



48mm

70mm



4900Nm

320mm

Ta80-80D



55mm

80mm



6600Nm

380mm

Ta100-100D



55mm

100mm



10500Nm

520mm

Ta124-125D



60mm

125mm



16000Nm

560mm





Your benefits:

1. Simple structure and convenient to be installed and maintained


2. Small volume


3. Widely application


4. All input/ output shafts are plated so that can prevent them to rusting.


5. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is



safe from contamination.



Specification:





Model



 HXG30 HXG35 HXG40 HXG45 HXG50



Permitted Torque (Nm)



 180 420 950 1400 2300



Model



 HXG60 HXG70 HXG80 HXG100 HXG125



Permitted Torque (Nm)



 360 5100 7000 11000 17000





Welcome

Welcome to contact us for more detail information and inquiry.

Please leave a message or inquiry below.

We will reply within 24 hours. Thanks for your cooperation!

Welcome standard product inquiry, Welcome OEM inquiry.




Application:

Crushing, grinding, screening & washing, feeding & conveying



Portable crushing plant, tracked mobile crushing station,

complete crushing plant



sand-and-gravel  rock-crushing plants Aggregate Materials





Product images:

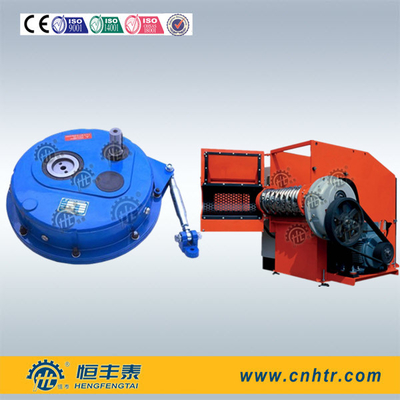

Small Helical Gear Reducer 45Kw Electric Motor For Conveyor Belt Gearbox 0

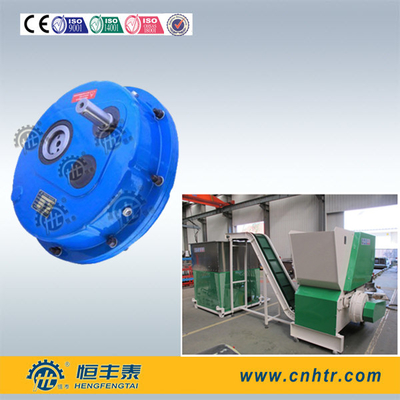

Small Helical Gear Reducer 45Kw Electric Motor For Conveyor Belt Gearbox 1





Small Helical Gear Reducer 45Kw Electric Motor For Conveyor Belt Gearbox 2
