Helical Power Transmission Gears Speed Reducer Gearbox with Volume

  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai
Certification CE,ISO,TUV,SGS
Model Number HXGF 30-100
Minimum Order Quantity 10 Pieces
Price USD 100-1700
Packaging Details 8-10 pcs packed in one crate.
Delivery Time 30 Days
Payment Terms T/T; L/C
Supply Ability 800 Pieces per Month
Product Details
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Helical Power Transmission Gears Speed Reducer Gearbox with Volume


Quick Details:


·         Gearing Arrangement: Helical
·         Rated Power: 0.29-134.2kw
·         Output Speed:256- 7499 RPM(Na=100rpm )
·         Place of Origin: Zhejiang, China (Mainland)
·         Model Number: HXGF30-HXGF100



Description:


Our Helical Shaft Mounted Speed Reducer Gearbox provides a convenient installation and removal

method for speed reduction by mounting directly on the drive shaft. The Helical Shaft Mounted Speed

Reducer Gearbox features carburized gear teeth with optimal gear geometry and wide gear faces, allowing

maximum loading and highest efficiency torque output, for higher rating capacity in the most compact

design.


OUTPUT
RPM

B5

C5

D5

E5

F5

G5

H5

J5

50

1.35

2.50

3.85

5.55

8.30

12.10

19.30

31.50

100

2.69

4.60

6.30

11.20

16.50

25.20

39.00

61.00

150

3.60

5.70

8.90

14..00

20.00

35.00

50.40

78.00

200

4.30

6.70

10.50

16.60

24.00

40.00

60.00

93.00

250

4.60

7.70

12.00

18.00

27.50

46.00

68.00

107.0

OUTPUT
RPM

B13
B20

C13
C20

D13
D20

E13
E20

F13
F20

G13
G20

H13
H20

J13
J20

10

0.29

0.50

0.80

1.30

1.90

3.30

4.70

7.45

20

0.60

1.10

1.70

2.50

4.10

7.00

10.00

15.80

30

0.80

1.70

2.60

4.20

6.20

10.50

15.00

24.00

40

1.15

2.20

3.50

5.50

8.10

14.00

20.00

31.00

50

1.40

2.50

4.00

6.30

9.40

16.00

23.00

36.00

60

1.70

3.00

4.70

7.40

11.10

19.00

27.00

42.5

70

1.90

3.30

5.20

8.25

12.10

21.00

30.00

46.00

80

2.20

3.90

6.15

9.65

14.20

24.50

35.00

54.00

90

2.40

4.40

6.80

10.70

15.70

27.00

39.00

60.00

100

2.70

4.60

7.20

11.30

16.60

28.50

41.00

63.50

TORQUE
AT 10RPM
 in NM

275

510

810

1270

1865

3230

4650

7100

TORQUE
AT 70 RPM
in NM

260

420

740

1120

1790

2950

4550

6600



Your benefits:

1. Simple structure and convenient to be installed and maintained
2. Small volume
3. Widely application
4. All input/ output shafts are plated so that can prevent them to rusting.
5. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is

safe from contamination.



Applications:


Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:


Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture

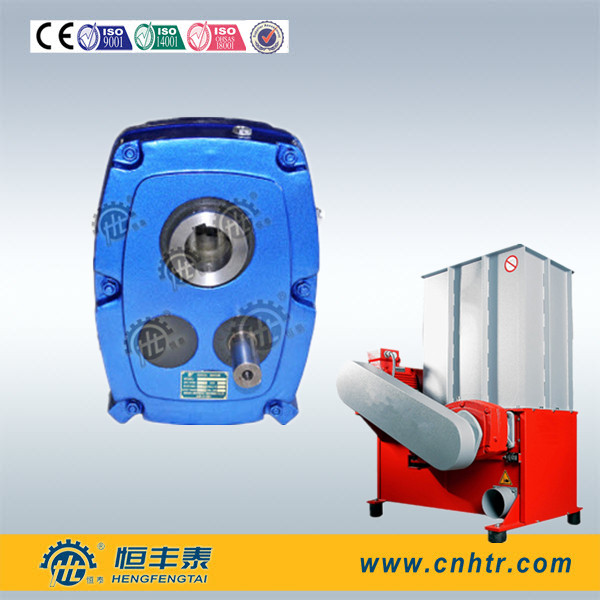

Helical Power Transmission Gears Speed Reducer Gearbox with Volume 0

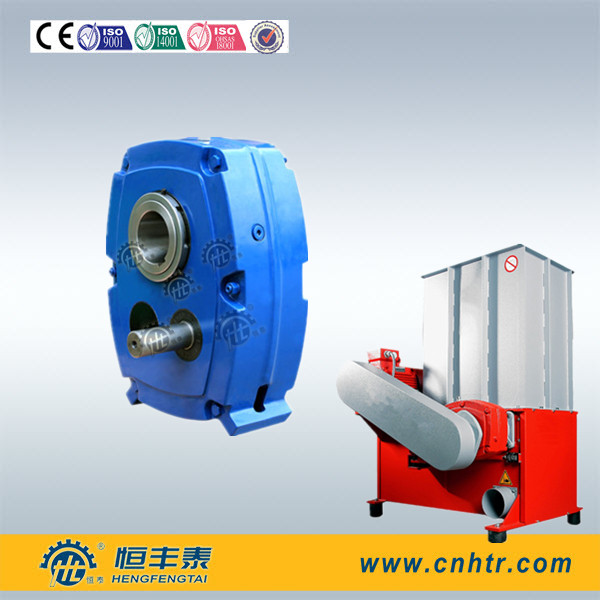

Helical Power Transmission Gears Speed Reducer Gearbox with Volume 1
