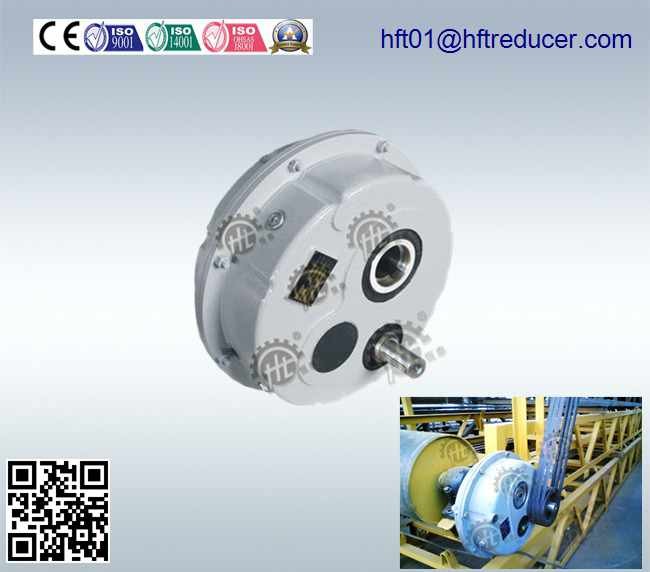

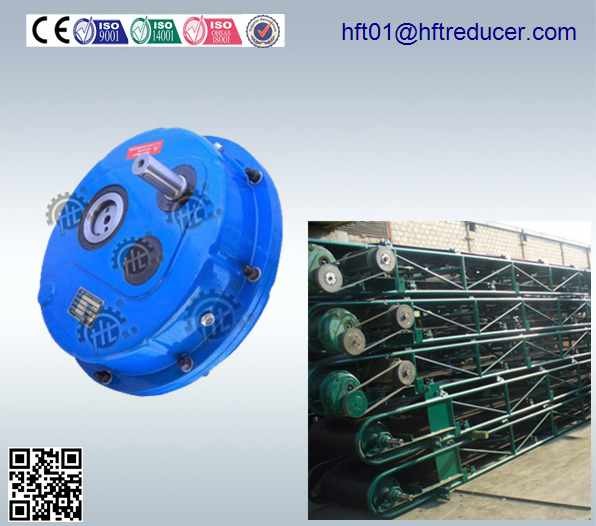

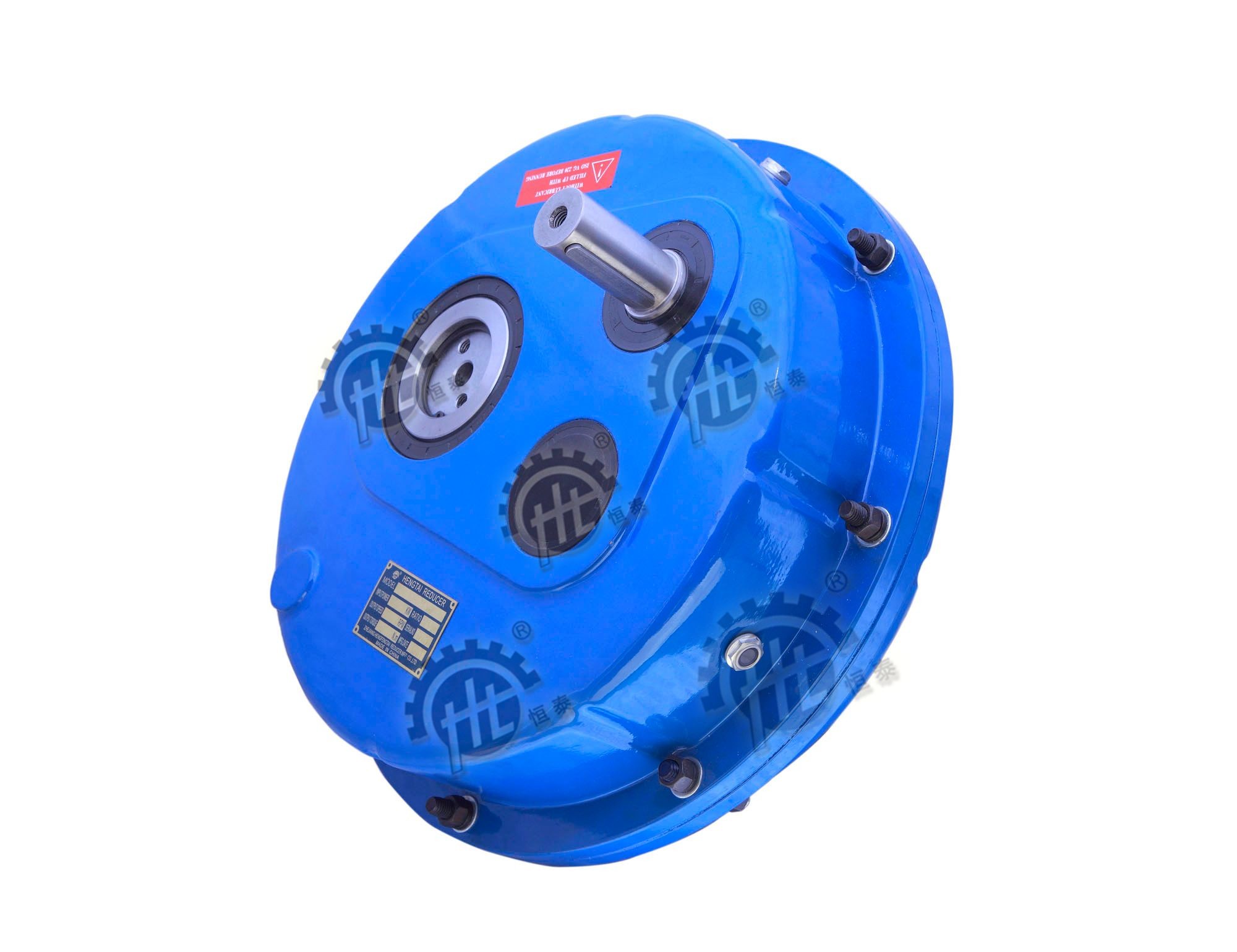

Torque Arm Shaft Mounted Speed Reducer For Industrial Application

  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai
Certification TUV,SGS,ISO, etc
Model Number HXG35-125
Minimum Order Quantity 10 Pieces
Price USD 100-1800
Packaging Details 1 pcs in one small box,7-8 small box packed in one crate.
Delivery Time 25 Days
Payment Terms T/T; L/C
Supply Ability 800 Pieces per Month
Product Details
Ratio 15/1 Input Shaft 24mm
Output Shaft 40mm Housing Material Cast Iron
Gear Material 20CrMnTi Shaft Material 40Cr
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Quick Details:



The Hxg Round Shaft Mounts are available in 10 sizes: 30,35,40,45,50,60,70,80,100,125

with power ratings of up to 156 kW at 45 RPM

With ratios: 5:1, 15:1, 25:1



Hxg 30 - Bores 30 mm

Hxg 35- Bores 35 & 40 mm

Hxg 40 - Bores 40 & 45 mm

Hxg 45 - Bores 45, 50 & 55 mm

Hxg 50 - Bores 50, 55 & 60 mm

Hxg 60 - Bores 60 & 70 mm

Hxg 70 - Bores 70 & 85 mm

Hxg 80 - Bores 80 & 100 mm

Hxg 100 - Bores 100 & 125 mm

Hxg 125 - Bores 125 & 135 mm




Specification rated data:



HXG(TA) Shaft Mounted Conveyor Spare Parts Gear Speed Reducer





Model



 Ratio Standard bore (mm) Power(Kw) Rated torque(N.m)

30

5;
7;
10;

12.5;
15;
20;
25;
31

30

3

180

35

35

5.5

420

40

40; 45

15

950

45

45; 50; 55

22.5

1400

50

50; 55; 60

37

2300

60

60; 65; 70

55

3600

70

70; 85;

78

5100

80

80; 100

110

7000

100

100; 120

160

11000

125

125; 135

200

17000





Hxg crusher gear box motor features:


1.    Housing material: Cast IronGG250.

Housing process: Machining by CNC. Keep the same precision.

Makes the housing with perfect installation performance.



2.    Gear material: Carbon Steel 8620 or 20CrMnTi

Gear process: Lathe-mill-gear teeth hobbing-heat treatment-gear teeth grinding.

Makes gears durable long use life.



3.    Shaft material: Steel 1045 or 40Cr , Shaft process: Lathe-mill-OD grinding

4.    Bearings: Chinese Top Brand: HRB,LYC,ZWZ.

5.    Oil seals –brand NAK or KSK Oil resistant oil silicone sealant protect perfect sealing.

6.    Package:Convenient lift hook on both side of each small box.



Hxg stone maintainace equipment accessory spare parts dimensions


Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Hxg35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Hxg40-40D



24mm

40mm



1350Nm

240mm

Hxg45-45D



28mm

45mm



2050Nm

260mm

Hxg50-50D



42mm

50mm



2100Nm

280mm

Hxg60-60D



48mm

60mm



3500Nm

300mm

Hxg70-70D



48mm

70mm



4900Nm

320mm

Hxf80-80D



55mm

80mm



6600Nm

380mm

Hxg100-100D



55mm

100mm



10500Nm

520mm

Hxg124-125D



60mm

125mm



16000Nm

560mm

Torque Arm Shaft Mounted Speed Reducer For Industrial Application 0
Hxg rock crusher gear box motor application:



Torque Arm Shaft Mounted Speed Reducer For Industrial Application 1





About Hengtai reducer company

Brand : Hengtai

Founding year:   1991

Quantity of employees:    300 employees

Factory square:   50000square meters

Annual production capability:   60,000sets

Main products: Hxg, Hsmr shaft mounted reducer,

                           HH,HB helical bevel series gear box reducer

                           HR serial helical geared motor,

                           HS serial helical worm geared motor,

                           HK serial helical bevel geared motor,

                           HF serial parallel helical geared motor,

                           HT 300 serial planetary gearbox



Torque Arm Shaft Mounted Speed Reducer For Industrial Application 2

Torque Arm Shaft Mounted Speed Reducer For Industrial Application 3
