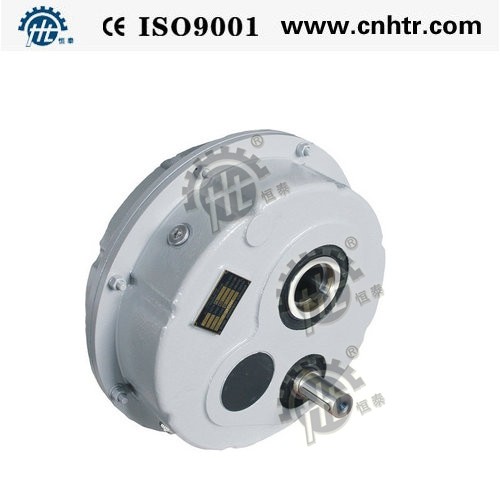

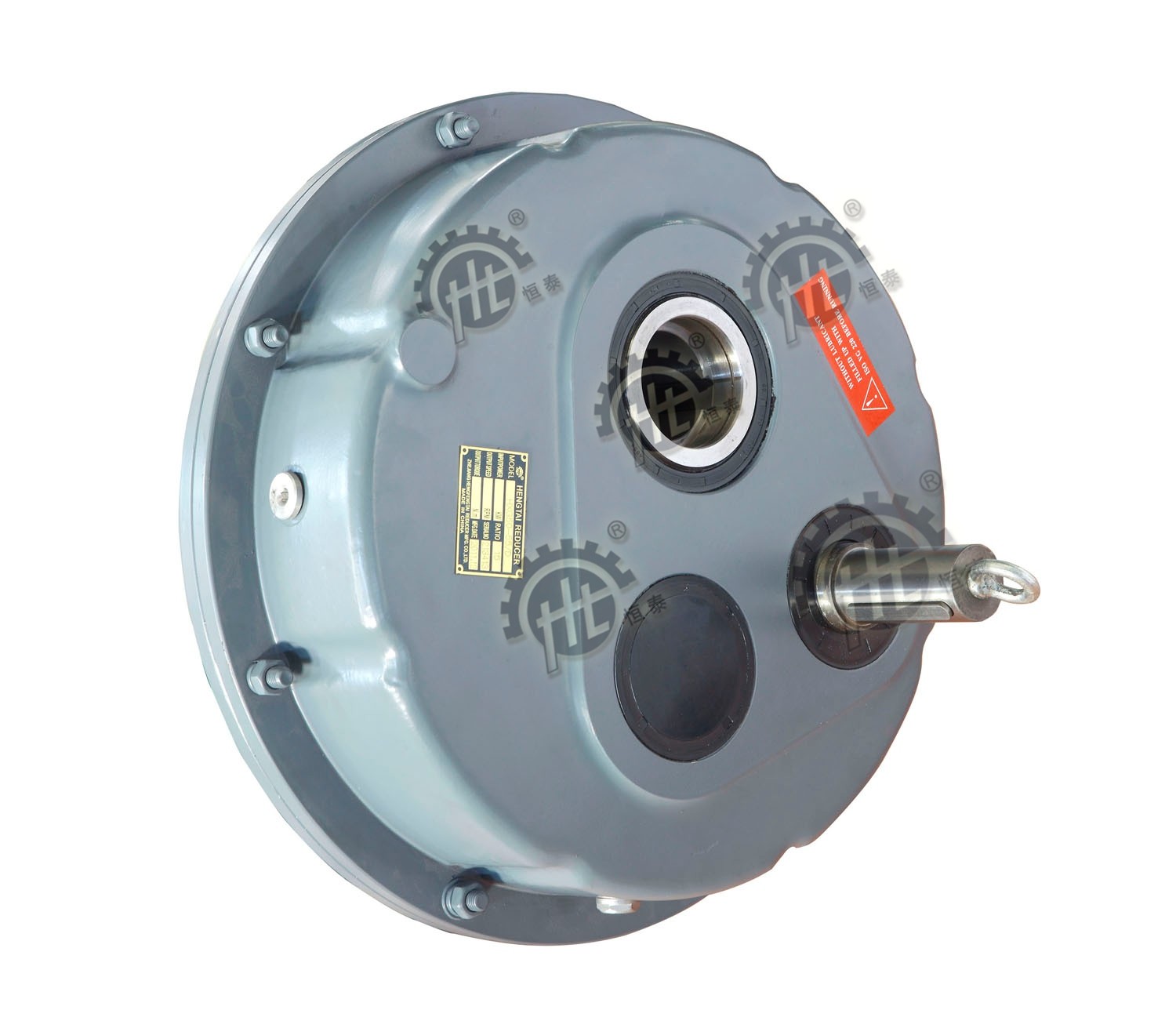

Flange Mounted Electric Motor Gear Reducer Automatic Transmission HXG Shaft Mounted Gearbox

  • img.alt
  • img.alt
Place of Origin China
Brand Name HENGTAI
Certification CE,ISO,TUV,SGS
Model Number HXG 30-125
Minimum Order Quantity 10 Pieces
Price USD 100-1800
Packaging Details Standard export package
Delivery Time 25 Days
Payment Terms T/T; L/C
Supply Ability 1800 Pieces per Month
Product Details
Name Shaft Mounted Gearbox Power Uo To 110KW
Loading Port Shanghai Or Ningbo Color Blue, Grey
Weight Up To 200Kg
High Light

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

Quick Details:







HXG(TA) Shaft Mounted Speed Reducer





Model



 Ratio Standard bore (mm) Power(Kw) Rated torque(N.m)
30

5;
7;
10;

12.5;
15;
20;
25;
31

30

 3 180
35

35

 5.5 420
40

40; 45

 15 950
45 45; 50; 55 22.5 1400
50 50; 55; 60 37 2300
60 60; 65; 70 55 3600
70

70; 85;

 78 5100
80

80; 100

 110 7000
100

100; 120

 160 11000
125

125; 135

 200

17000







Description:



Ratio

Input Speed (rpm)

Output Speed

(rpm)

Model

Rated output torque(Nm)

Rated input power(Kw)

Overhung loads

(N)

15/1

1400

93

HXG35-35D

350

3.6

500

HXG40-40D

HXG40-45D

750

7.7

850

HXG45-45D

HXG45-50D

HXG45-55D

1200

12.3

1150

HXG50-50D

HXG50-55D

HXG50-60D

1900

19.5

1700

HXG60-60D

HXG60-70D

3200

33.0

2600

HXG70-70D

HXG70-85D

4400

45.0

3400

HXG80-80D

HXG80-100D

6100

63.0

4200

HXG100-100D

HXG100-125D

9500

98.0

5000

HXG125-125D

HXG125-135D

12500

128.0

5500






Your benefits:


1. Simple structure and convenient to be installed and maintained

2. Small volume

3. Widely application


4. All input/ output shafts are plated so that can prevent them to rusting.

5. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is



safe from contamination.





Other Details:



TA Helical parallel shaft mounted gear motor Spare Parts List



1.Casing



11.Bearing



21.Hex.head screw



31.Spacer ring



41.Pin for bracket



2.Cover



12.Bearing



22.Spring washer



32.Spacer ring





42.Pin for support



3.Rubber cap



13.Bearing



23.Hexagonal nut



33.Support



43.Cotter pin



4.Output shaft



14.Oilseal



24.Hexagonal head screw



34.Key





5.Gearwheel



15.Oilseal



25.Breather plug



35.Support





6.Input shaft



16.Rubber cap



26.Level plug



36.Bracket





7.Spacer ring



17.Circlip



27.Drain plug



37.Torque arm





8.Spring washer



18.Key



28.Rubber Cap



38.Right tie-rod





9.Gasket



19.Key



29.Spacer ring



39.Left tie-rod





10.Gasket



20.Dowel Pin



30.Clutch element



40.Hexagonal nut







Application:





Flange Mounted Electric Motor Gear Reducer Automatic Transmission HXG Shaft Mounted Gearbox 0Flange Mounted Electric Motor Gear Reducer Automatic Transmission HXG Shaft Mounted Gearbox 1
