Helical Shaft Mounted Speed Reducer HXG/TA Two Stage Transmission Gearbox

  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai
Certification CE,TUV
Model Number HXG 30-125
Minimum Order Quantity 5 Pieces
Price USD 200-2000
Packaging Details 1pcs packed in one small box,6-8 boxes packed in one pallet.
Delivery Time 20 Days
Payment Terms T/T; L/C
Supply Ability 3000 Pieces per Month
Product Details
Certificates CE, ISO, Others Export Market All Countries
Input Solid Shaft Output Hollow Shaft
Input Speed 500~1800 Rpm Output Speed 17~360 RPM
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Helical Shaft Mounted Speed Reducer HXG/TA Two Stage Transmission Gearbox





Quick Details:







HXG(TA) Shaft Mounted Speed Reducer





Model



 Ratio Standard bore (mm) Power(Kw) Rated torque(N.m)
30

5;
7;
10;

12.5;
15;
20;
25;
31

30

 3 180
35

35

 5.5 420
40

40; 45

 15 950
45 45; 50; 55 22.5 1400
50 50; 55; 60 37 2300
60 60; 65; 70 55 3600
70

70; 85;

 78 5100
80

80; 100

 110 7000
100

100; 120

 160 11000
125

125; 135

 200

17000







Description:



Conveyor Chain Helical Gear Reducer Transmission Gearbox is a shaft mounted gearbox which can be optionally



fitted with a backstop option (except for HXG30). It is appreciated that the backstop option prevents conveyor



from back driving once the conveyor inclines.



This Conveyor Chain Helical Gear Reducer Transmission Gearbox is wildly used in mining conveyor fields such



as: Jaw Crusher conveyor gearbox, Stone Crusher conveyor gearbox, Impact Crusher conveyor gearbox,



Material Vibrating Screen conveyor gearbox, Material Feeder conveyor gearbox and so on.



Ps: Scan QR code to connect me for more services.



Your benefits:

1. Simple structure and convenient to be installed and maintained

2. Small volume

3. Widely application


4. All input/ output shafts are plated so that can prevent them to rusting.

5. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is

safe from contamination.

6. High efficiency.
Our gearbox units now are in higher load capacity as the gears have been redesigned.

7. Strong capacity of being overloaded.
Our gearbox units now are in higher load capacity as the gears have been redesigned.


8. Long service life.

Life of main parts of gearbox (except wearing parts) should not be less than 20, 000 hours.

9. Anti-leaking oil.
The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.




Other Details:





Place of Orign



Zhejiang, China



Trade Mark



Hengtai Gearbox



Mounting Position



Shaft Mounted



Color



Ral 5010& 7031& 7040



Certification



 CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS



Packing Detials





Wooden Case,

Standard Export Package





Application:



Mobile Jaw Crusher
Mobile Vibrating Screen
Mobile VSI Crusher
Mobile Cone Crusher
Mobile Impact Crusher
Crawler Mobile Crusher





Features:



Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Ta35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Ta40-40D



24mm

40mm



1350Nm

240mm

Ta45-45D



28mm

45mm



2050Nm

260mm

Ta50-50D



42mm

50mm



2100Nm

280mm

Ta60-60D



48mm

60mm



3500Nm

300mm

Ta70-70D



48mm

70mm



4900Nm

320mm

Ta80-80D



55mm

80mm



6600Nm

380mm

Ta100-100D



55mm

100mm



10500Nm

520mm

Ta124-125D



60mm

125mm



16000Nm

560mm





Product informations:

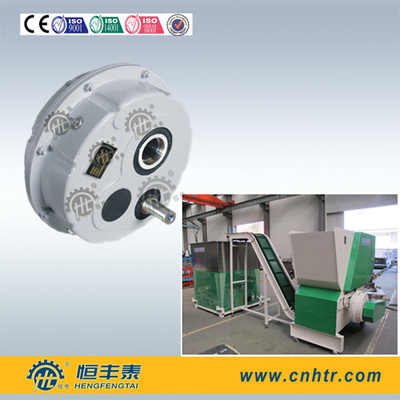

Helical Shaft Mounted Speed Reducer HXG/TA Two Stage Transmission Gearbox 0

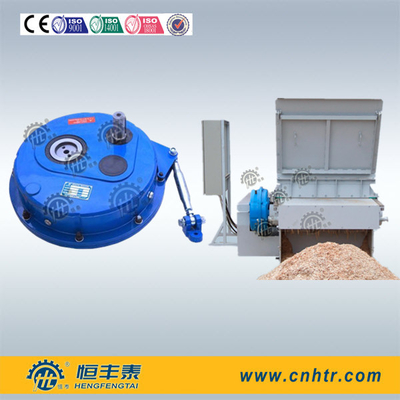

Helical Shaft Mounted Speed Reducer HXG/TA Two Stage Transmission Gearbox 1
