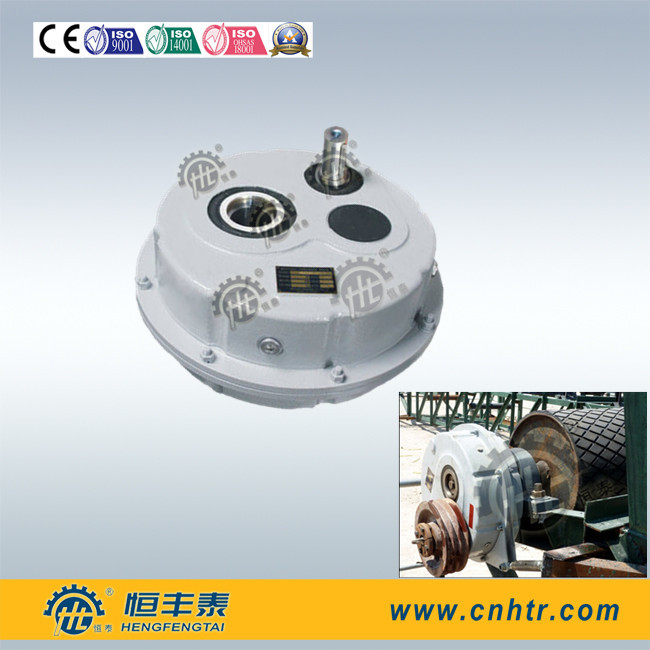

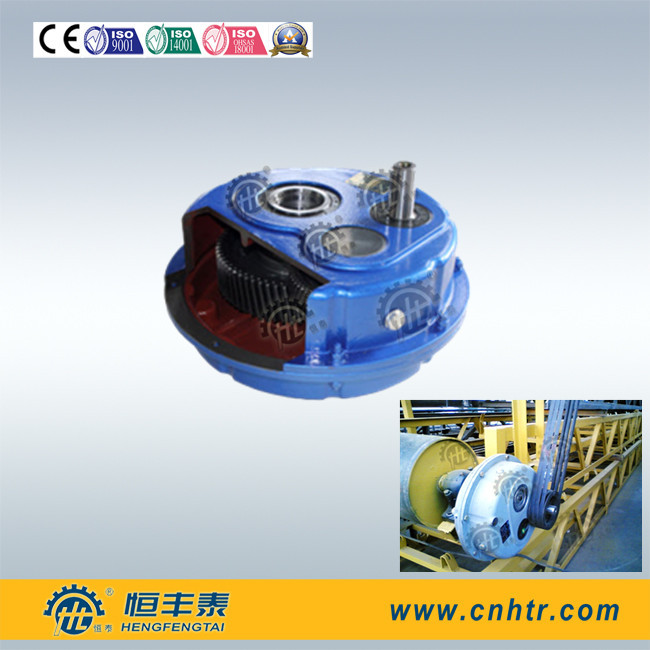

Mining Conveyor helical gear reducer speed reduction gearbox torque arm

  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai
Certification TUV,CE,ISO
Model Number HXG 35-125
Minimum Order Quantity 10 Pieces
Price USD 100-1700
Packaging Details 1pcs in small box,7-8pcs in wooden crate.
Delivery Time 35 Days
Payment Terms T/T; L/C
Supply Ability 1000 Pieces per Month
Product Details
Output 35，40，45，50，60，70，80，100,125 Mm Input 19，28，38，48，55mm
Key Flat Key Input Connect Pulley
Output Connect Roller Speed For Conveyor 70~120 RPM
High Light

helical speed reducer

,

inline helical gearbox
Leave a Message
Product Description

Mining Conveyor helical gear reducer speed reduction gearbox torque arm







Place of Orign



Zhejiang, China



Trade Mark



Hengtai Gearbox



Mounting Position



Shaft Mounted



Color



Ral 5010& 7031& 7040



Certification



CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS



Packing Detials



Wooden Case,

Standard Export Package







Description:



Keyed Hollow Output Shaft Helical Gear Reducer is a shaft mounted gearbox which can be optionally fitted with a backstop option (except for HXG30). It is appreciated that the backstop option prevents conveyor from back driving once the conveyor inclines.



This Keyed Hollow Output Shaft Helical Gear Reducer is wildly used in mining conveyor fields such as:

Jaw Crusher conveyor gearbox, Stone Crusher conveyor gearbox, Impact Crusher conveyor gearbox, Material Vibrating Screen conveyor gearbox, Material Feeder conveyor gearbox and so on.



Ps: Scan QR code to connect me for more services.




Specification:





Keyed Hollow Output Shaft Helical Gear Reducer





Mode

l

 Ratio Standard bore (mm) Power(Kw) Rated torque(N.m)
30

5;
7;
10;

12.5;
15;
20;
25;
31

30

 3 180
35

35

 5.5 420
40

40; 45

 15 950
45

45; 50; 55

 22.5 1400
50

50; 55; 60

 37 2300
60

60; 65; 70

 55 3600
70

70; 85;

 78 5100
80

80; 100

 110 7000
100

100; 120

 160 11000
125

125; 135

 200 17000



TA Helical parallel shaft mounted gear motor Spare Parts List



1.Casing



11.Bearing



21.Hex.head screw



31.Spacer ring



41.Pin for bracket



2.Cover



12.Bearing



22.Spring washer



32.Spacer ring





42.Pin for support



3.Rubber cap



13.Bearing



23.Hexagonal nut



33.Support



43.Cotter pin



4.Output shaft



14.Oilseal



24.Hexagonal head screw



34.Key





5.Gearwheel



15.Oilseal



25.Breather plug



35.Support





6.Input shaft



16.Rubber cap



26.Level plug



36.Bracket





7.Spacer ring



17.Circlip



27.Drain plug



37.Torque arm





8.Spring washer



18.Key



28.Rubber Cap



38.Right tie-rod





9.Gasket



19.Key



29.Spacer ring



39.Left tie-rod





10.Gasket



20.Dowel Pin



30.Clutch element



40.Hexagonal nut







Application:

Washing & Screening Machine

Vibrating Screen
Belt Conveyor
Vibrating Feeder
Screw Sand Washing Machine
Wheel Sand Washing Machine



Stone Crushing Plant Equipments :

  • Vibrating Screen
  • Primary Crusher
  • Secondary Crusher
  • Belt Conveyors
  • Control Units
  • Drive Motor

Product informations:



Mining Conveyor helical gear reducer speed reduction gearbox torque arm 0

Mining Conveyor helical gear reducer speed reduction gearbox torque arm 1
