Mining Helical Gear Reducer 20CrMnTi Gear Motor , High Reduction Gearbox

  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai
Certification TUV,CE,ISO,SGS
Model Number HXG 30-125
Minimum Order Quantity 10 Pieces
Price USD 200-2700
Packaging Details 1pcs in one small box,7-8 small box packed in one crate pallet.
Delivery Time 25 Days
Payment Terms T/T; L/C
Supply Ability 800 Pieces per Month
Product Details
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

Mining Helical Gear Reducer 20CrMnTi Gear Motor , High Reduction Gearbox





Quick Details:







Helical Gear Reducer Overhang Mining Gearbox





Model



 Ratio Standard bore (mm) Power(Kw) Rated torque(N.m)
30

5;
7;
10;

12.5;
15;
20;
25;
31

30

 3 180
35

35

 5.5 420
40

40; 45

 15 950
45 45; 50; 55 22.5 1400
50 50; 55; 60 37 2300
60 60; 65; 70 55 3600
70

70; 85;

 78 5100
80

80; 100

 110 7000
100

100; 120

 160 11000
125

125; 135

 200

17000





Description:



TA 70 Helical Gear Reducer Overhang Mining Gearbox is a shaft mounted gearbox which can be optionally



fitted with a backstop option (except for HXG30). It is appreciated that the backstop option prevents conveyor



from back driving once the conveyor inclines.



This TA 70 Helical Gear Reducer Overhang Mining Gearbox is wildly used in mining conveyor fields such as:



Jaw Crusher conveyor gearbox, Stone Crusher conveyor gearbox, Impact Crusher conveyor gearbox,



Material Vibrating Screen conveyor gearbox, Material Feeder conveyor gearbox and so on.




Your benefits:


1. Small volume


2. Widely application





3. Simple structure and convenient to be installed and maintained



4. All input/ output shafts are plated so that can prevent them to rusting.




5. Anti-leaking oil.

The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.




6. High efficiency.

Our gearbox units now are in higher load capacity as the gears have been redesigned.



7. Long service life.

Life of main parts of gearbox (except wearing parts) should not be less than 20, 000 hours.



8. Strong capacity of being overloaded.

Our gearbox units now are in higher load capacity as the gears have been redesigned.




9. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is



safe from contamination.





Features:


Model Number



Input shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque arm length

Input Speed

Reduction Ratio:



Ta35-35D



19mm

30mm



1000Nm

220mm











1400rpm





900rpm





500rpm



5:1



7:1



10:1



12.5:1



15:1



20:1



25:1



31:1



Ta40-40D



24mm

40mm



1350Nm

240mm

Ta45-45D



28mm

45mm



2050Nm

260mm

Ta50-50D



42mm

50mm



2100Nm

280mm

Ta60-60D



48mm

60mm



3500Nm

300mm

Ta70-70D



48mm

70mm



4900Nm

320mm

Ta80-80D



55mm

80mm



6600Nm

380mm

Ta100-100D



55mm

100mm



10500Nm

520mm

Ta124-125D



60mm

125mm



16000Nm

560mm



TA Helical parallel shaft mounted gear motor Spare Parts List



1.Casing



11.Bearing



21.Hex.head screw



31.Spacer ring



41.Pin for bracket



2.Cover



12.Bearing



22.Spring washer



32.Spacer ring





42.Pin for support



3.Rubber cap



13.Bearing



23.Hexagonal nut



33.Support



43.Cotter pin



4.Output shaft



14.Oilseal



24.Hexagonal head screw



34.Key





5.Gearwheel



15.Oilseal



25.Breather plug



35.Support





6.Input shaft



16.Rubber cap



26.Level plug



36.Bracket





7.Spacer ring



17.Circlip



27.Drain plug



37.Torque arm





8.Spring washer



18.Key



28.Rubber Cap



38.Right tie-rod





9.Gasket



19.Key



29.Spacer ring



39.Left tie-rod





10.Gasket



20.Dowel Pin



30.Clutch element



40.Hexagonal nut






Application:

Stone Crushing Plant Equipments :

  • Vibrating Screen
  • Primary Crusher
  • Secondary Crusher
  • Belt Conveyors
  • Control Units
  • Drive Motor



Product Images:

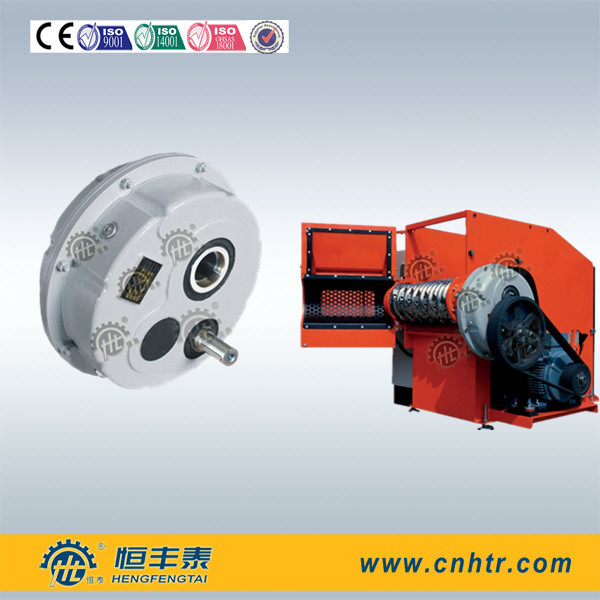

Mining Helical Gear Reducer 20CrMnTi Gear Motor , High Reduction Gearbox 0

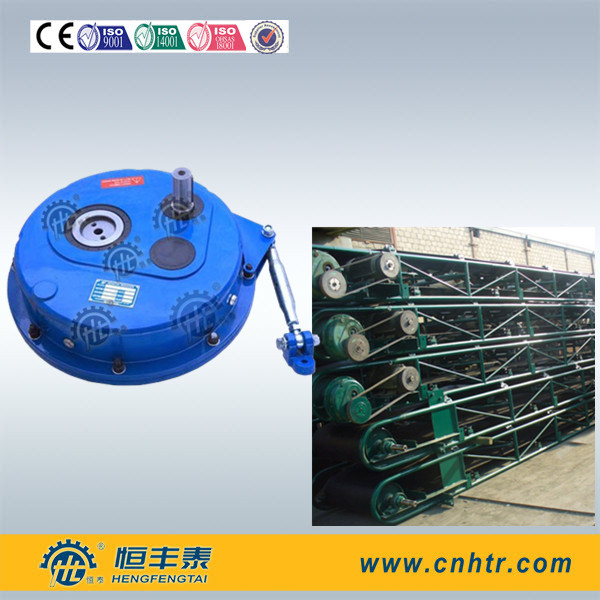

Mining Helical Gear Reducer 20CrMnTi Gear Motor , High Reduction Gearbox 1
