Grant Helical Speed Gear Reducer Coal Miner Gear With Torque Arm

  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai
Certification ce,iso,tuv,sgs
Model Number HXGF 30-100
Minimum Order Quantity 10 Pieces
Price USD 100-1700
Packaging Details Standard 7-8 pcs per crate.
Delivery Time 30 Days
Payment Terms T/T; L/C
Supply Ability 1000 Pieces per Month
Product Details
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Grant Helical Speed Gear Reducer Coal Miner Gear With Torque Arm



Quick Details:





Place of Orign



Zhejiang, China



Trade Mark



Hengtai Gearbox



Mounting Position



Shaft Mounted



Color



Ral 5010& 7031& 7040



Certification



CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS



Packing Detials



Wooden Case,

Standard Export Package



Description:

Our Torque Arm Helical Gear Reducer Conveyor Gearbox provides a convenient installation and removal

method for speed reduction by mounting directly on the drive shaft. The Torque Arm Helical Gear Reducer

Conveyor Gearbox features carburized gear teeth with optimal gear geometry and wide gear faces, allowing

maximum loading and highest efficiency torque output, for higher rating capacity in the most compact

design.


This Torque Arm Helical Gear Reducer Conveyor Gearbox is wildly used in mining conveyor fields such as Jaw

Crusher conveyor gearbox, Stone Crusher conveyor gearbox, Impact crusher conveyor gearbox,

Material Vibrating Screen conveyor gearbox, Material Feeder conveyor gearbox and so on.


Ps: Scan QR code to connect me for more services.



Torque

Model(single/double)

HXGF30

HXGF40

HXGF50

HXGF55

HXGF65

HXGF75

HXGF85

HXGF100

Nm(100rpm)

256

277

401

468

632

783

983

1194

1444

1881

2407

2970

3457

4380

5940

7449




Dimension



SIZES

A

B

C

D

E

F

Input Shaft Keyway

H

J

K

P

T

U

V

W

X

Y

Hub Dia

STD

ALT

B

134

30

40

63

59

80

19j6

6x3.5x50

104

131

55

10

186

226

81

75

25

79

C

142

40

50

72

65

90

22j6

6x3.5x5.6

108

156

59

10

218

270

96

90

31

95

D

152

50

55

77

68

100

25j6

8x4x63

118

188

76

12

258

328

117

110

37

116

E

170

55

65

85

76

115

28j6

8x4x70

130

222

90

12

278

377

129

125

43

133

F

189

65

75

90

87

130

32k6

10x5x70

149

242

98

16

317

414

143

141

50

150

G

212

75

85

105

110

145

42k6

12x5x90

172

277

110

16

365

468

162

156

56

166

H

242

85

100

116

115

170

48K6

14x5.5x100

190

330

88

16

434

550

195

189

62

200







Your benefits:


1. Small volume

2. Widely application

3. All input/ output shafts are plated so that can prevent them to rusting.


4. Simple structure and convenient to be installed and maintained


5. The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is

safe from contamination.

6. High efficiency.
Our gearbox units now are in higher load capacity as the gears have been redesigned.

7. Strong capacity of being overloaded.
Our gearbox units now are in higher load capacity as the gears have been redesigned.

8. Long service life.
Life of main parts of gearbox (except wearing parts) should not be less than 20, 000 hours.

9. Anti-leaking oil.
The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the

gearbox.



Applications:


Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:


Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture

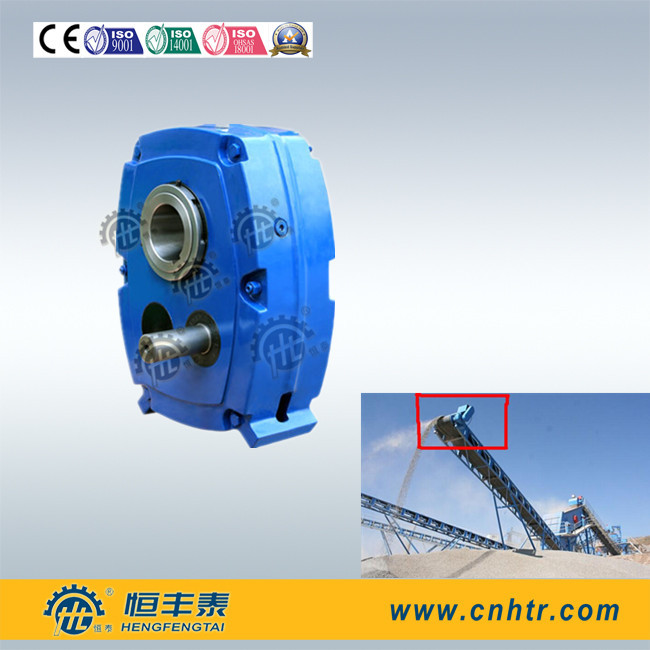

Grant Helical Speed Gear Reducer Coal Miner Gear With Torque Arm 0

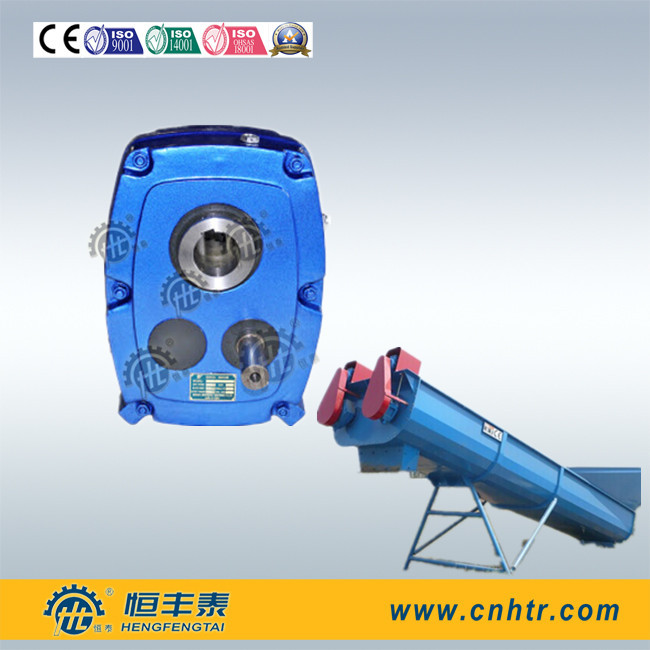

Grant Helical Speed Gear Reducer Coal Miner Gear With Torque Arm 1
