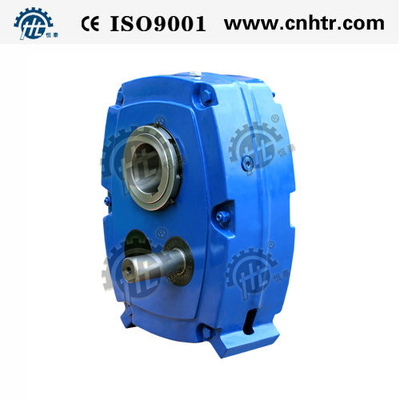

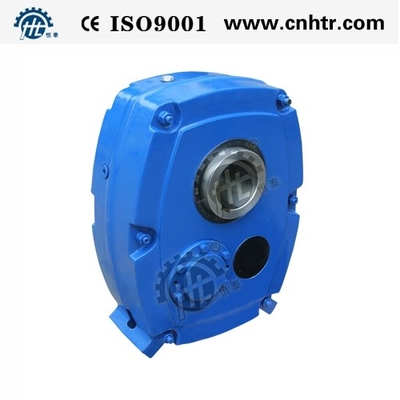

Gear Reduction ratio 5 13 20 Fenner SMSR Shaft Mounted Gearbox Two Stage Power Transmission

  • img.alt
  • img.alt
Place of Origin China
Brand Name Hengtai
Certification TUV,SGS,ISO,CE
Model Number SMSR B,C,D,E,F,G,H,J,S
Minimum Order Quantity 2 Pieces
Price USD 120-1000
Packaging Details Standard wooden case package for SMSR
Delivery Time 25 Days
Payment Terms T/T; L/C
Supply Ability 800 Pieces per Month
Product Details
Ratio 5-20 Model Smsr B,C,D,E,F,G,H,J,S
Output Shaft 30-120mm Input Shaft 19-55mm
Material For Housing HT250 Color Blue, Grey
High Light

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

 Quick Details:




Place of Orign



Zhejiang, China



Trade Mark



Hengtai Gearbox



Mounting Position



Shaft Mounted



Color



Ral 5010& 7031& 7040



Certification



CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS



Packing Detials



Wooden Case,

Standard Export Package




Description:


Model
Number


Input
shaft Diameter

Output shaft hollow bore diameters:


Output torque
range

Torque
arm length

Input Speed

Reduction Ratio:


C

19mm

30mm



277Nm

220mm



1400rpm
900rpm
500rpm



5:1
13:1
20:1

D

22mm

40mm



468Nm

240mm

E

25mm

50mm

783Nm

260mm



F

28mm

55mm

1194Nm

280mm



G

32mm

75mm

1881Nm

300mm



H

42mm

85mm

2970Nm

320mm



J

48mm

100mm

4680Nm

380mm



S

55mm

120mm

7449Nm

520mm




Dimensions:


SIZES

A

B

C

D

E

F

Input Shaft Keyway

H

J

K

P

T

U

V

W

X

Y

Hub Dia

STD

ALT

B


134

30

40

63

59

80

19j6

6x3.5x50

104

131

55

10

186

226

81

75

25

79

C


142

40

50

72

65

90

22j6

6x3.5x5.6

108

156

59

10

218

270

96

90

31

95

D

152

50

55

77

68

100

25j6

8x4x63

118

188

76

12

258

328

117

110

37

116

E


170

55

65

85

76

115

28j6

8x4x70

130

222

90

12

278

377

129

125

43

133

F


189

65

75

90

87

130

32k6

10x5x70

149

242

98

16

317

414

143

141

50

150

G


212

75

85

105

110

145

42k6

12x5x90

172

277

110

16

365

468

162

156

56

166

H


242

85

100

116

115

170

48K6

14x5.5x100

190

330

88

16

434

550

195

189

62

200



Applications:


Perfect for screw conveyors, belt conveyor bulk handing machinery and process equipment for:


Baggage handing



Pulp, paper, and forestry



Aggregate and mining



Mixers and process equipment



Grain and agriculture
