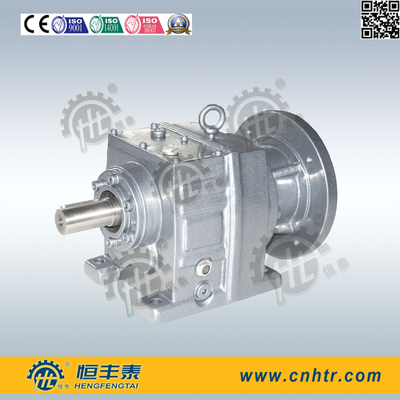

Screw Conveyor Gearbox Helical Gear Reducer With Motor , High Speed

  • img.alt
Place of Origin Zhejiang, China
Brand Name Hengfengtai Helical Gear Reducer
Certification CE; ISO9001; ISO4001; OHSAS18001;TUV; SGS
Model Number HR 24-167
Minimum Order Quantity 5 pcs
Price USD 500-1000
Packaging Details Wooden Case, Standard Export Package
Delivery Time 25 Days
Payment Terms T/T; L/C
Supply Ability 800 Pcs / Month
Product Details
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

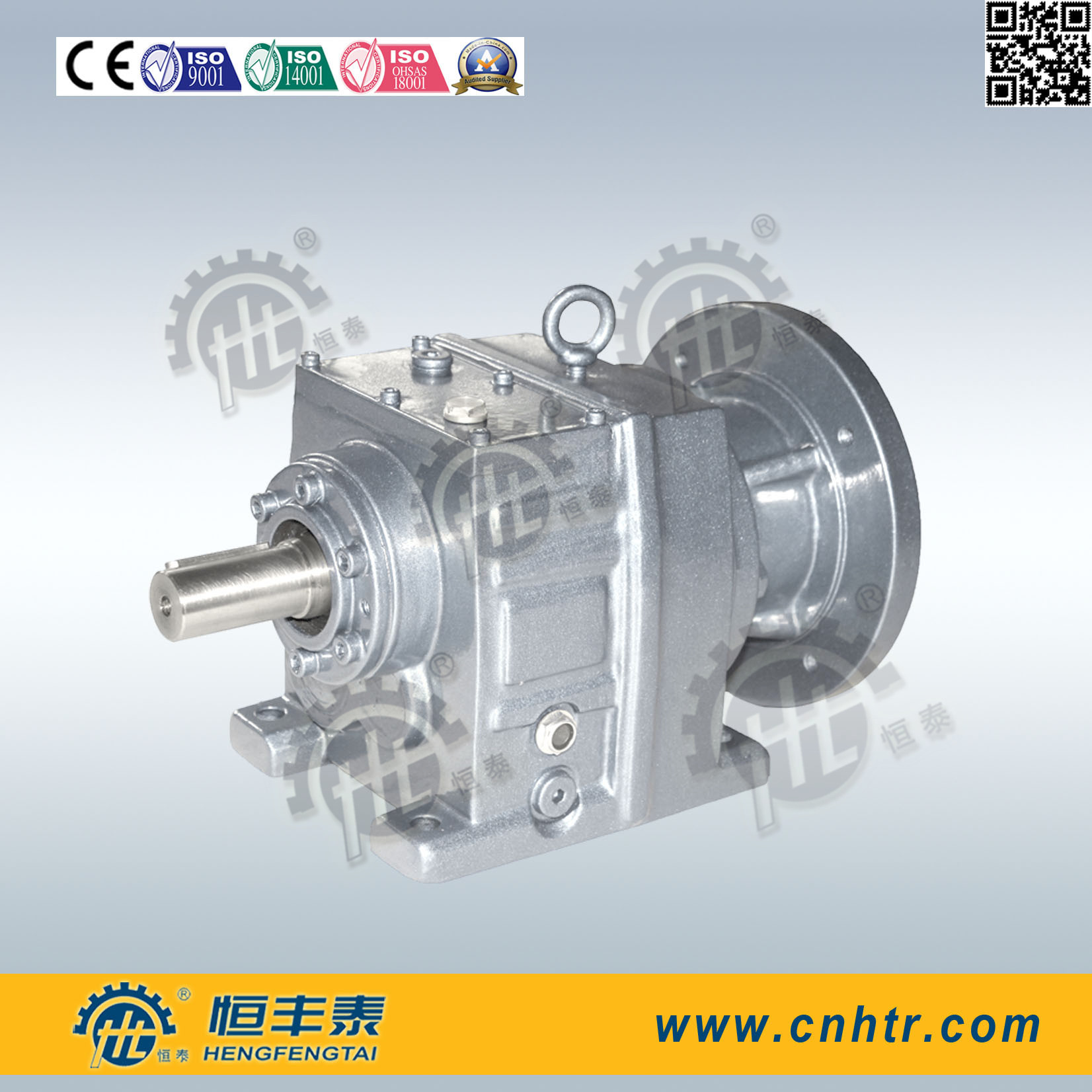

Screw Conveyor Gearbox Helical Gear Reducer With Motor , High Speed







Quick Details:





Trade Mark



Hengtai Gearbox



Mounting Position



Foot/ hollow(keyed )



Output Speed



3.3-1089 Rpm



Output Torque



110-15300 N.M



Rated Power



0.12-160 Kw



Transmission Ratio



3.4-280



Gear Arrangement



Helical Gear Reducer





Description:



A design which integrates mounting feet into the gearbox housing means that Screw Conveyor Helical Gear



Reducer With CE Certification Gearbox motor offers advantages in terms of high levels of operating stiffness and



rigidity.





The usage of tapered roller bearings adds to their robust performances, by allowing axial and side loads to be



tolerated on their keyed cylindrical output shafts.





The design for foot mounting means that the range is particularly suitable for spiral classifier applications. This



suitability is enhanced by a wide range of accessories, including adaptors for electric and hydraulic motors.





Specifications:





Model



 27 37 47 57 67 77



Structure form



 HRHR..FHRF



Input power



 0.12-3 0.12-3 0.12-5.5 0.12-7.5 0.12-7.5 0.18-11



Ratio



 3.37-136 3.4-133.3 3.87-182.6 4.32-183.2 4.32-180.7 5.28-200.9



Permissible torque



 110 170 255 380 510 700



weight



 6.2 9.4 11 20 28 40



Model



 87 97 107 137 147 167



Structure form



 HRHR..FHRF



Input power



 0.55-22 0.55-37 2.2-55 5.5-75 11-110 11-160



Ratio



 5.33-245.7 4.52-280.6 4.98-255.4 5.22-223.2 4.93-162.1 10.43-224.6



Permissible torque



 1320 2550 3670 6800 11050 15300



weight



 70 112 169 245 440 770

















































































Your benefits:

1. Effective cooling systems.

2. Extremely robust gear unit housing.

3. Reduced costs and weight due to high power density and finely stepped sizes.

4. CCW and CW versions may be implemented in a single gear unit version.

5. Simple structure and convenient to be installed and maintained

6. High efficiency:
Single-stage greater than 96.5% greater than 93%, two-stage, three more than 90%.

7. High efficiency.
Our gear box units now are in higher load capacity as the gears have been redesigned.

8. Strong capacity of being overloaded.
Heavy duty roller bearings for maximum strength and extended life.

9. Long service life.
Life of main parts of gear box (except wearing parts) should not be less than 20, 000 hours.
