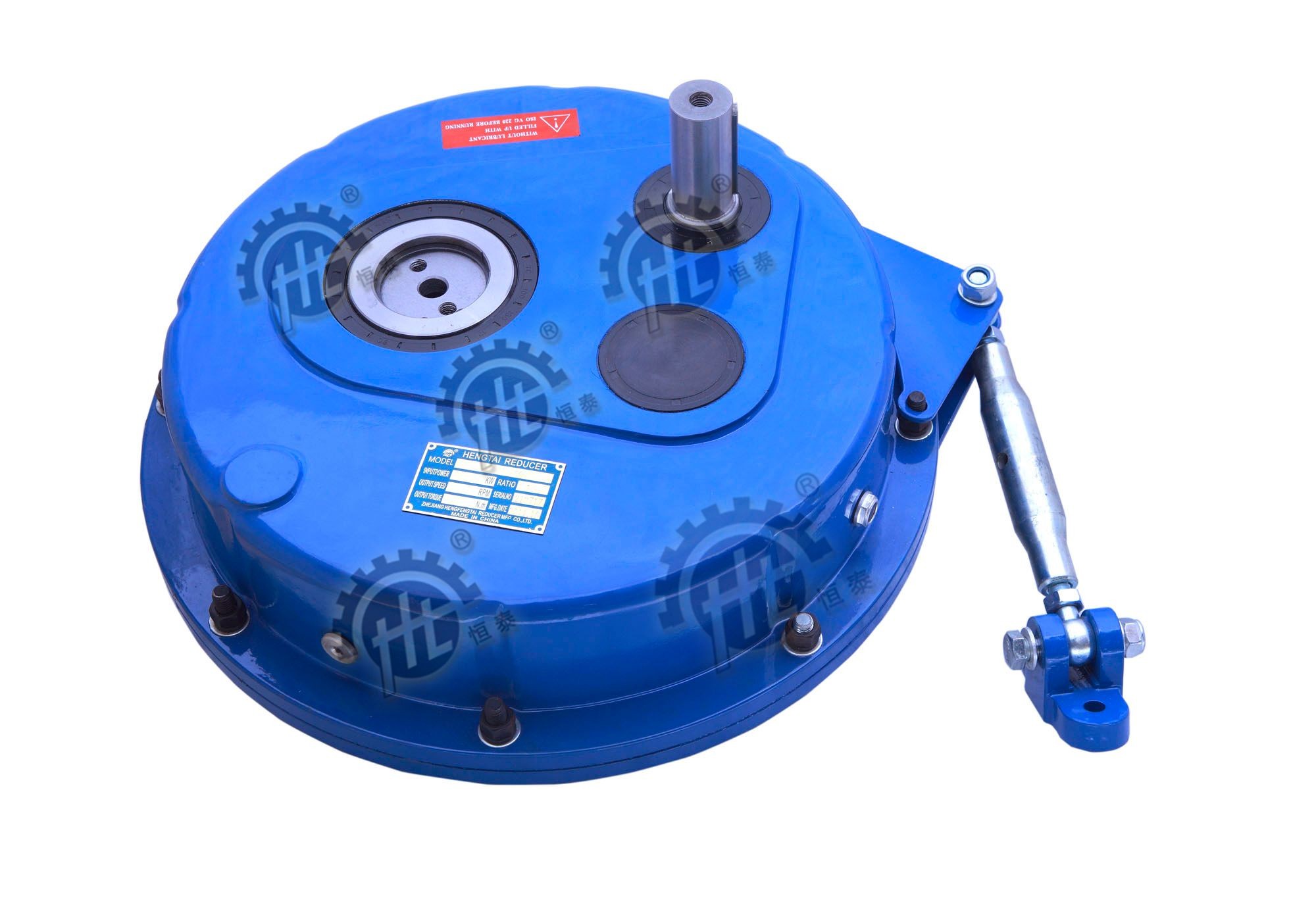

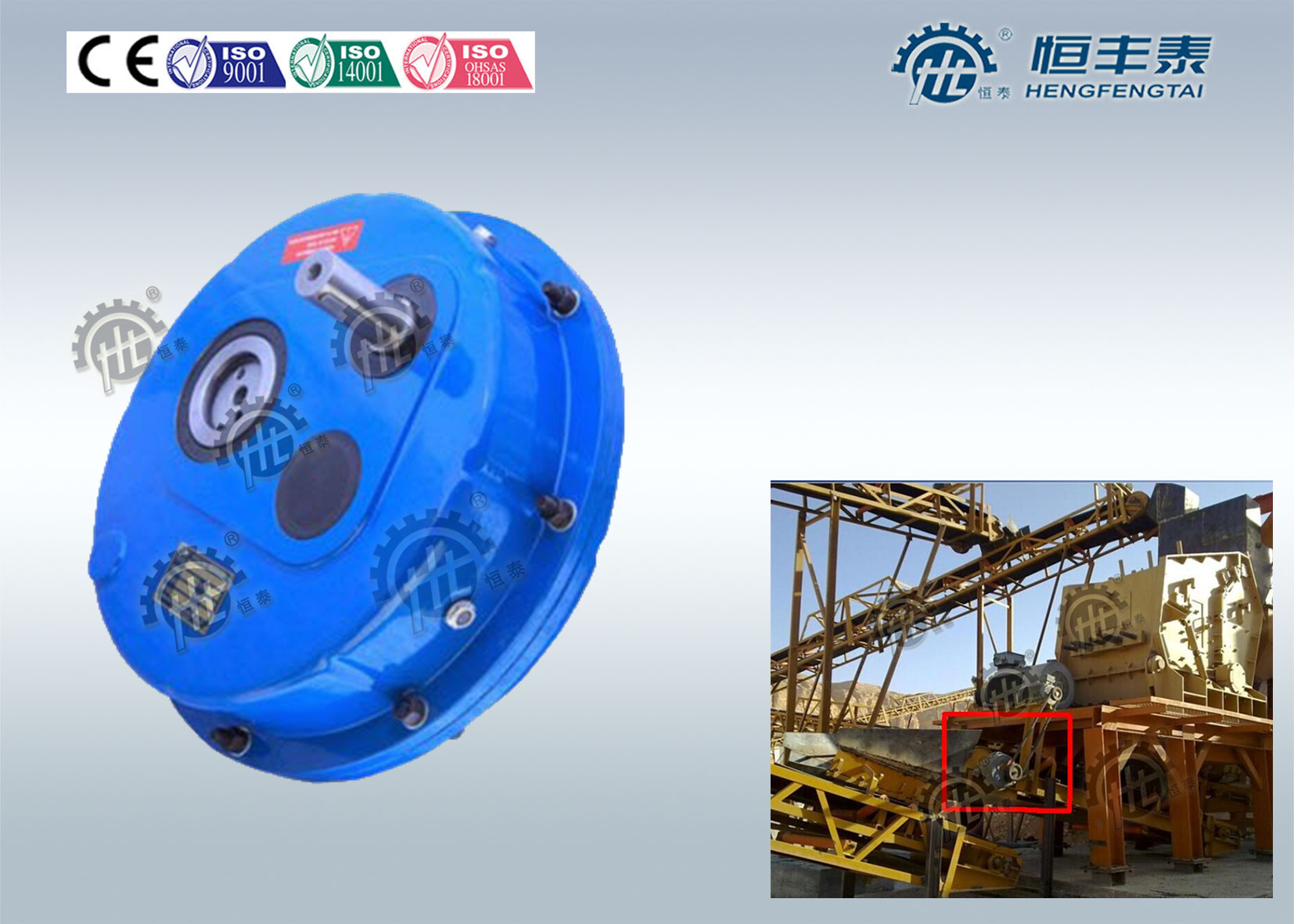

Bonfiglioli TA Shaft Mounted Gear Reducer for Belt Conveyor With Backstop

  • img.alt
  • img.alt
Place of Origin Wenzhou,Zhejiang,China
Brand Name HT
Certification CE, ISO9001:2008, TUV, SGS
Model Number TA series
Minimum Order Quantity 20 PIECES
Price PLS REFER TO PRICE TABLE
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time DEPENDS ON QUANTITY
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
Reduction Ratio 15/1 Diameter Of Shaft 35-135mm
Rated Power Up To 200KW Output Torque Up To 20000Nm
Standard Spare Parts Torque Arm Alternative Spare Parts Back Stop
High Light

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

 Descriptions:





Shaft Mounted Speed Reducer for Belt Conveyor with Backstop Bonfiglioli TA series with great material.





Quick Details:



  • Model Number: HXG30-HXG125
  •
  • Ratio: 15
  •
  • Output Torque: 180~17000 Nm
  •
  • Rated Power: 0.92~226 Kw
  •
  • Output Speed: 15.1~280 rpm
  •
  • Input Speed: 500~1400 rpm





Housing: Cast Iron HT250



Gears: 20CrMnTi, the surface hardness after carburizing is 58-63HRC





The grade of Gear WE CAN DO:



Standard ISO GB ANSI AGMA JIS DIN BS FN
Grade 6 6 3 12 2 6 A2 C





Your benefits:

  1. Small volume
  2. Simple structure and convenient to be installed and maintained
  3. Strong capacity of being overloaded
  4. Long service life



Specifications:



Shaft Mounted Speed Reducer for Belt Conveyor with Backstop Bonfiglioli TA series



Ratio Input Speed (rpm)

Output Speed

(rpm)

 Model Rated output torque(Nm) Rated input power(Kw)

Overhung loads

(N)
15/1 1400 93 HXG35-35D 350 3.6 500

HXG40-40D

HXG40-45D

 750 7.7 850

HXG45-45D

HXG45-50D

HXG45-55D

 1200 12.3 1150

HXG50-50D

HXG50-55D

HXG50-60D

 1900 19.5 1700

HXG60-60D

HXG60-70D

 3200 33.0 2600

HXG70-70D

HXG70-85D

 4400 45.0 3400

HXG80-80D

HXG80-100D

 6100 63.0 4200

HXG100-100D

HXG100-125D

 9500 98.0 5000

HXG125-125D

HXG125-135D

 12500 128.0 5500





THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER



Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution







































Package for TA:



Bonfiglioli TA Shaft Mounted Gear Reducer for Belt Conveyor With Backstop 0

Bonfiglioli TA Shaft Mounted Gear Reducer for Belt Conveyor With Backstop 1
