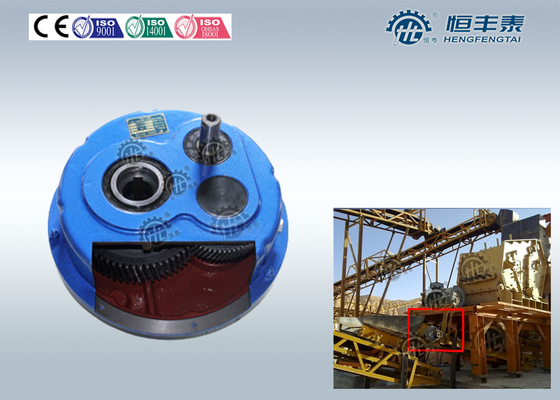

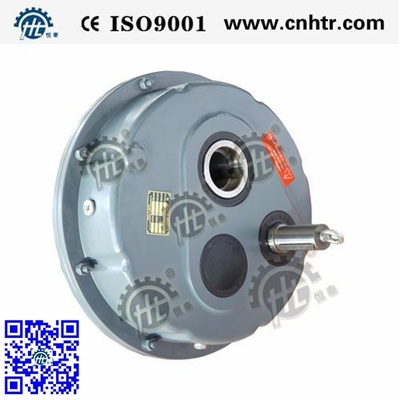

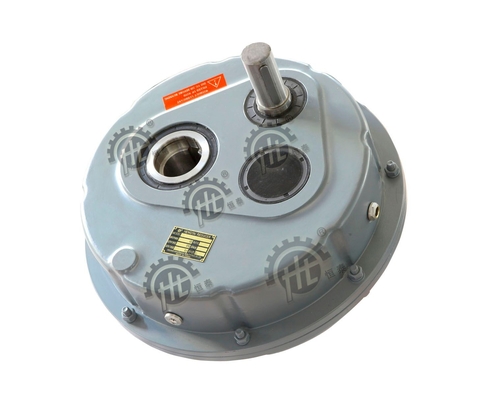

TA Shaft Mounted Speed Reducer ratio 15 power 2.2~75KW Cast Iron for Pulley Conveyor Belt
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | Hengtai Reducer |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXG series |
| Minimum Order Quantity | 1 PIECES |
| Price | EURO 120-1500 PCS |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 10~25 days according to quantity |
| Payment Terms | T/T or LC |
| Supply Ability | TWO THOUSAND PCS PER MONTH |
Product Details
| Speed Ratio | 15/1 | Input Speed | 500 To 1800RPM |
|---|---|---|---|
| Output Speed | 5~360 RPM | Rated Output Torque | Up To17000Nm |
| Rated Input Power | 2.2~75KW | Color | Blue RAL5010 |
| Spares | Backstop, Torque Arm | ||
| High Light | hollow shaft gear reducer,Shaft mounted Gear Reducer |
||
Product Description
Descriptions:
TA Size 35~125 Ratio 15, 20 Shaft Mounted Speed Reducer With Anti-back And Pulley with great material.
The grade of Gear WE CAN DO:
| Standard | ISO | GB | ANSI | AGMA | JIS | DIN | BS | FN |
| Grade | 6 | 6 | 3 | 12 | 2 | 6 | A2 | C |
Housing: Cast Iron HT250
Gears: 20CrMnTi, the surface hardness after carburizing is 58-63HRC
Quick Details:
- Model Number: HXG30-HXG125
- Ratio: 15
- Output Torque: 180~17000 Nm
- Rated Power: 0.92~110 Kw
- Output Speed: 15.1~280 rpm
- Input Speed: 500~1400 rpm
Your benefits:
- Small volume
- Simple structure and convenient to be installed and maintained
- Strong capacity of being overloaded
- Long service life
Applications:
TA Size 45 Ratio 20 Shaft Mounted Speed Reducer With Anti-back And Pulley, is widely used for mechanical transmission such as:
1. Argriculture
2. Commerce
3. Posts and telecommunications industry
4. Food industry
5. Tobacco industry,
6. Automotive industry
7. Cement industry
8. Mining industry
9. Tourism industry etc
Specifications:
TA Size 45 Ratio 20 Shaft Mounted Speed Reducer With Anti-back And Pulley
| Ratio | Input Speed (rpm) |
Output Speed (rpm) |
Model | Rated output torque(Nm) | Rated input power(Kw) |
Overhung loads (N) |
| 15/1 | 1400 | 93 | HXG35-35D | 350 | 3.6 | 500 |
|
HXG40-40D HXG40-45D |
750 | 7.7 | 850 | |||
|
HXG45-45D HXG45-50D HXG45-55D |
1200 | 12.3 | 1150 | |||
|
HXG50-50D HXG50-55D HXG50-60D |
1900 | 19.5 | 1700 | |||
|
HXG60-60D HXG60-70D |
3200 | 33.0 | 2600 | |||
|
HXG70-70D HXG70-85D |
4400 | 45.0 | 3400 | |||
|
HXG80-80D HXG80-100D |
6100 | 63.0 | 4200 | |||
|
HXG100-100D HXG100-125D |
9500 | 98.0 | 5000 | |||
|
HXG125-125D HXG125-135D |
12500 | 128.0 | 5500 |
