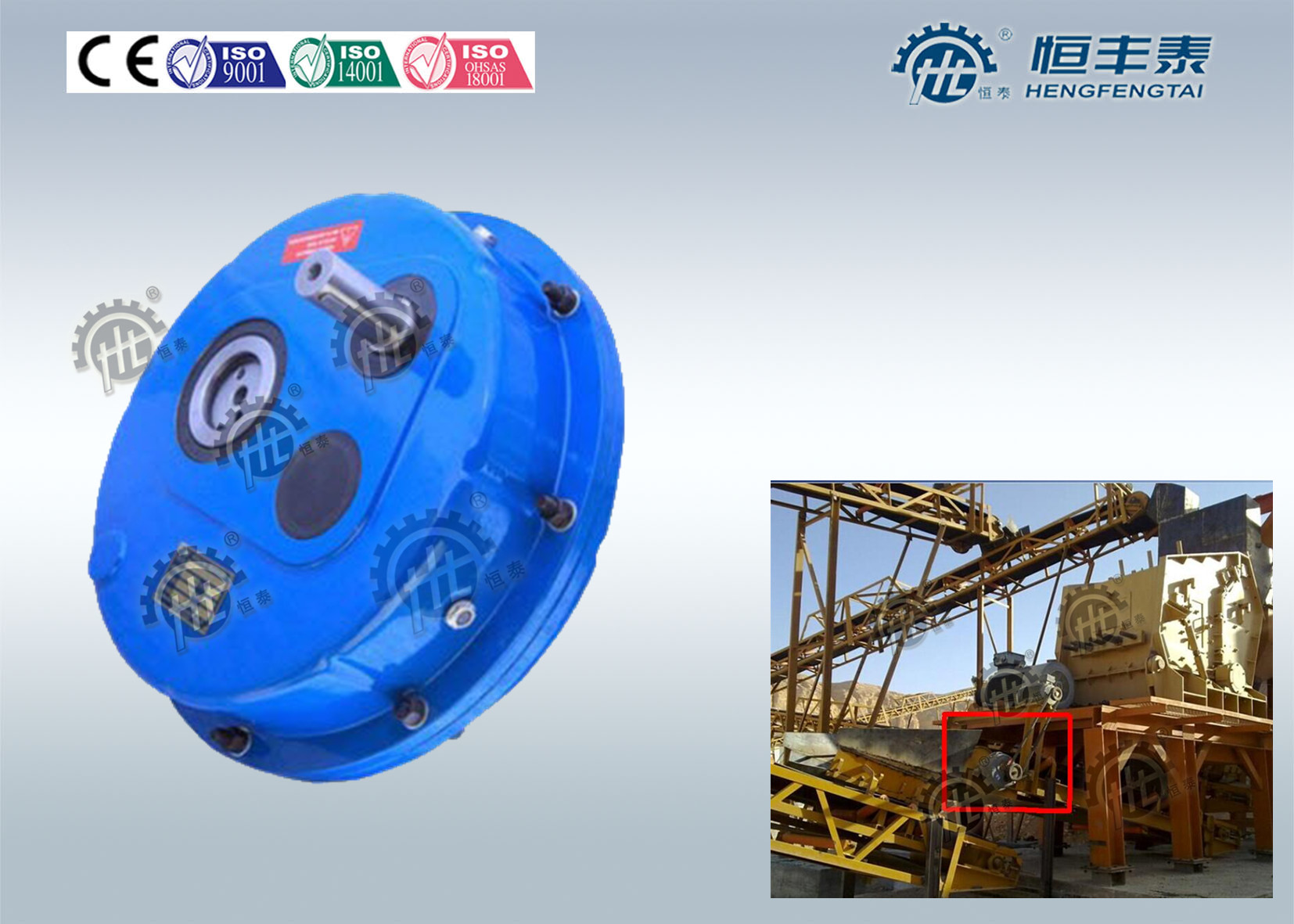

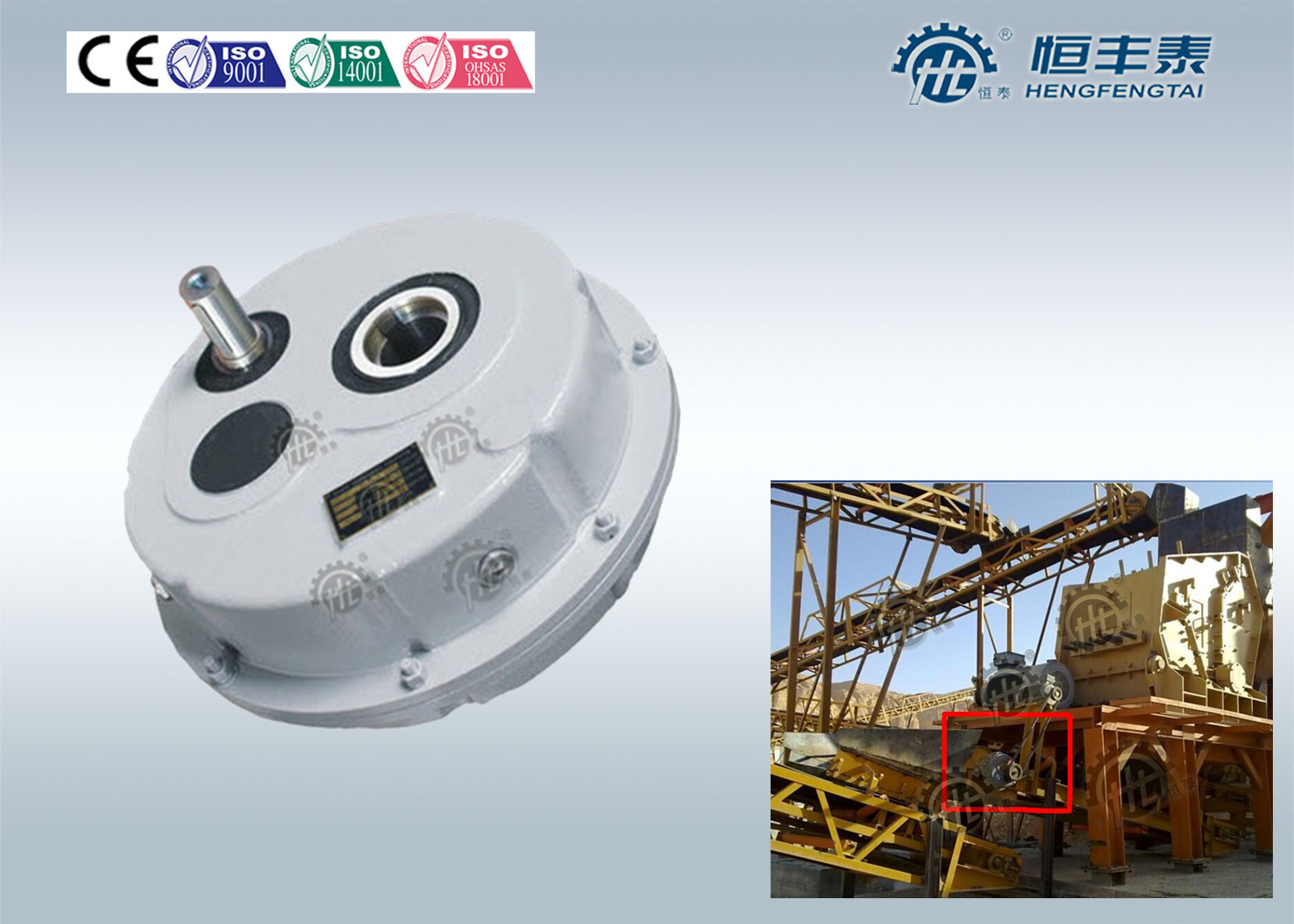

Conveyor Belt Gearbox Shaft Mounted Speed Reducer 25 Ratio Cast
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HT |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HXG series |
| Minimum Order Quantity | 5 pcs |
| Price | USD230-6000 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 30 days |
| Payment Terms | T/T or LC, Western Union |
| Supply Ability | 1000pcs /month |
Product Details
| Bearing | HRB | Material | Cast Iron |
|---|---|---|---|
| Models | Hxg70-85 | Housing OD | 550mm |
| Colar | Ral5010 | Hold Back | Yes |
| High Light | hollow shaft gear reducer,shaft mounted gearbox |
||
Product Description
Conveyor Belt Gearbox Shaft Mounted Speed Reducer 25 Ratio Cast
Descriptions:
Conveyors Gearbox Hollow Output Shaft 70 mm Shaft Mounted Speed Reducer With Density Ratio are
in great material.
Housing: Cast Iron HT250
Gears: 20CrMnTi, the surface hardness after carburizing is 58-63HRC
Quick Details:
- Model Number: HXG30-HXG125
- Ratio: 7-31
- Output Torque: 180~17000 Nm
- Rated Power: 0.92~226 Kw
- Output Speed: 15.1~280 rpm
- Input Speed: 500~1400 rpm
Specifications:
Conveyors Gearbox Hollow Output Shaft 70 mm Shaft Mounted Speed Reducer With Density Ratio
Hot sale for ratio 15
| Ratio | Input Speed (rpm) |
Output Speed (rpm) |
Model | Rated output torque(Nm) | Rated input power(Kw) |
Overhung loads (N) |
| 15/1 | 1400 | 93 | HXG35-35D | 350 | 3.6 | 500 |
|
HXG40-40D HXG40-45D |
750 | 7.7 | 850 | |||
|
HXG45-45D HXG45-50D HXG45-55D |
1200 | 12.3 | 1150 | |||
|
HXG50-50D HXG50-55D HXG50-60D |
1900 | 19.5 | 1700 | |||
|
HXG60-60D HXG60-70D |
3200 | 33.0 | 2600 | |||
|
HXG70-70D HXG70-85D |
4400 | 45.0 | 3400 | |||
|
HXG80-80D HXG80-100D |
6100 | 63.0 | 4200 | |||
|
HXG100-100D HXG100-125D |
9500 | 98.0 | 5000 | |||
|
HXG125-125D HXG125-135D |
12500 | 128.0 | 5500 |
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent and 5 items which are accepted by National SIPO wait for approval
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
