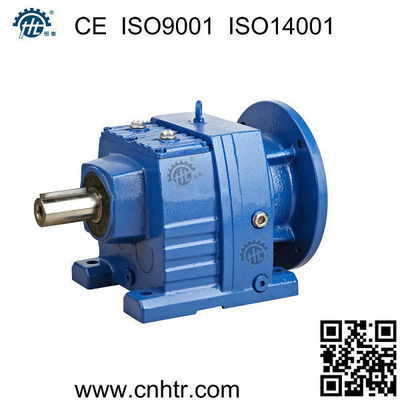

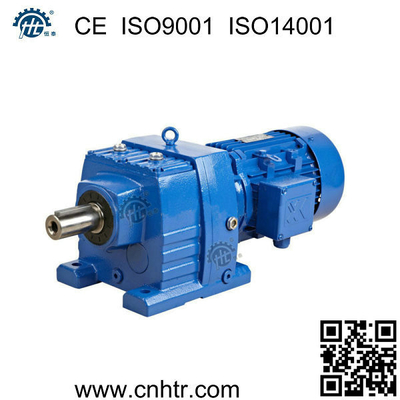

SEW type Coaxial gear motor reduction gearbox reducer with IEC or NEMA input flange

  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name Hengtai Reducer
Certification ISO9001, ISO14001, CE
Model Number HR37-HR167
Minimum Order Quantity 1 PCS
Price USD100.00
Packaging Details 8 PCS packed in 1 pallet, standard export wooden case.
Delivery Time 15 work days send goods after order down.
Payment Terms TT, L/C, Western Union
Supply Ability 5000 pcs / month
Product Details
Shaft 25-110 Mm Motor Flange IEC Or NEMA
Warranty 15 Months
High Light

inline helical gearbox

,

helical bevel gearbox
Leave a Message
Product Description

SEW type Coaxial gear motor reduction gearbox reducer with IEC or NEMA input flange:





Specifications:



1). Same with SEW R series gearmotors

2). IEC or NEMA motor input flange

3). Foot or flange mounted





Technicals:



Power range:   0.12-110 KW

Input motor:     4 poles, 6 poles,50-60Hz, IP54-IP55, 380V, 220/380V, 380/660V

Output speed: 3.5-450 rpm

Output torque: 110-15300 N.m




Model details:



Model

Shaft diameter

Power

Ratio

Permit torque

Weight

HR37

25 mm

0.12-3 KW

3.4-133.3

170 N.m

15 kg

HR47

30 mm

0.12-5 KW

3.87-182.6

255 N.m

20 kg

HR57

35 mm

0.12-7.5 KW

4.32-183.2

380 N.m

25 kg

HR67

35 mm

0.12-7.5 KW

4.32-180.7

510 N.m

30 kg

HR77

40 mm

0.18-11 KW

5.28-200.9

700 N.m

40 kg

HR87

50 mm

0.55-22 KW

5.33-245.7

1320 N.m

70 kg

HR97

60 mm

0.55-37 KW

4.52-280.6

2550 N.m

112 kg

HR107

70 mm

2.2-55 KW

4.98-255.4

3670 N.m

169 kg

HR137

90 mm

5.5-75 KW

5.22-223.2

6800 N.m

245 kg

HR147

110 mm

11-110 KW

4.93-162.1

11050 N.m

420 kg

HR167

120 mm

11-160 KW

10.43-224.6

15300 N.m

750 kg





How long time for Delivery?



      1-10 pcs: 20 days

    20-50 pcs: 25 days

  50-100 pcs: 30 days

101-200 pcs: 40 days





Payment:



1).TT 30% for order confirmed, TT 70% before delivery or see B/L documents copy.

2).L/C 100% at sight.





Warranty:



12-18 months according to application and model selection.





How to do order it?


1). Confirmed requirements, like your power KW, output speed RPM, gear ratio··· (Buyer)
2). Choose model and send quotation/price (Seller)
3). Negotiate the price, delivery time, payment terms, and others. (Seller and buyer)
4). Confirmed order (Buyer)
5). Send PI/proforma invoice (Seller)
6). Send payment (Buyer)
7). Production, delivery, shipment documents (Seller)
8). Receive goods (Buyer)
