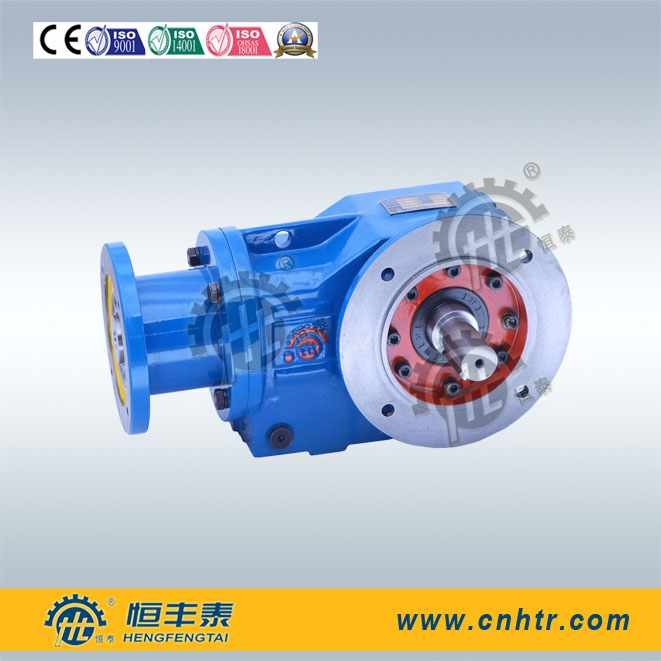

High Torque Bevel Gear Reducer

  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HK series
Minimum Order Quantity FIVE PIECES
Price USD300-USD8000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 25-35 days
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
Power 25kw Model Sew K 87
Mounting Electric Motor Mounted Shaft Solid Shaft
High Light

motor speed reducer

,

shaft mounted gear reducer
Leave a Message
Product Description

4 Poles Electric Motor 1450 Rpm Bevel Gear Reducer Mobile Crusher Conveyor  Belt



Quick Details



Torque Range
100 Nm... 14.000 Nm

Transmissible Mechanical Power (n1= 1400 min-1)
0,22 ... 150 kW

RAO Applied Force (n1= 1400 min-1)
20 kW .... 276 kW

Reduction Ratios Range
5,4 ... 1715







Descriptions:



Output Configuration
Foot or on the shaft mount.
Two female axis by size.
Female axis with cobbler.
Single or double axis.

Input Configuration
IEC-Electromotors
Axis

Types of engines that can be applied
IEC-engines with or without brake
one or two speed

Brake technical properties
Three phase brakes and DC brakes with lifters

Extra Motor Equipment
Thermostates, Thermistores
Autonomous feed Ventilators
Encoders





Specification:



           model

37

47

57

67

77

87

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

0.12~3

0.12~3

0.12~4

0.18~5.5

0.37~11

0.75~22

Transmission Ratio   i

4.09~106.6

4.66~131.7

4.68~143.5

7.1~646.2

7.11~192.7

7.42~195.2

Allowed Torque  Nm

170

340

510

705

1320

2300

Weight   kgs

12

22

30

37

63

94



            model

97

107

127

157

167

187

Structure

K,KA,KF,KAF,KAZ,KAT,KAB

Input Power KW

1.1~30

3~45

7.5~90

11~160

15~200

15~200

Transmission Ratio   i

8.88~176.5

8.72~147.2

8.6~144.4

12.7~151.1

17.3~161

17.1~180.7

Allowed Torque  Nm

3670

6800

11050

15300

27200

42500

Weight   kgs

145

275

420

680

1130

1870





Benifits:

  • easy to operate handwheel speed control as standard
  • optional electric remote speed control
  • wide selection of motors and brake-motors
  • analog and digital speed indicators available
  • rugged cast iron body
  • ground and polished driving disc for minimum wear
  • special cam mechanism only transmits the required torque, minimizing wear
  • asbestos-free non-hygroscopic friction disc material for long and safe working life



High Torque Bevel Gear Reducer 0







High Torque Bevel Gear Reducer 1
