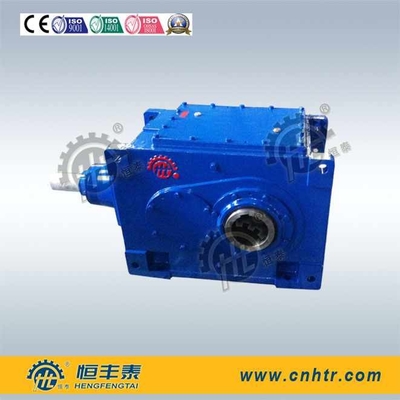

Two Stage Helical Gear Speed Reducer Hollow Shaft High Torque

  • img.alt
Place of Origin Wenhou city ,Zhejiang ,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number H.B
Minimum Order Quantity 5 PIECES
Price USD1000-USD70000
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 40days
Payment Terms T/T or LC
Supply Ability 100 PCS PER MONTH
Product Details
Model B2HH11 Output Shaft Solid
Stage 2 Reduction Stage Apply Mining Ball Mill
Input Speed 750-1500 Rpm Shaft Hollow Shaft
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

Two Stage Helical Gear Speed Reducer Hollow Shaft High Torque





Quick Details:


  • Gearing Arrangement: Helical
  •
  • Output Torque: 450000 N.m
  •
  • Rated Power: 1.1-5100KW
  •
  • Input Speed: 750-1500 rpm
  •
  • Output Speed: 1.67-1200RPM
  •
  • Place of Origin: Zhejiang, China (Mainland)
  •
  • Model Number: H1SH3-H4SH26
  •
  • Ratio: 1.25-450
  •
  • Output shaft diameter: 30-420MM





Other name:


Helical gear reducer applied for conveyor


parallel shaft mounted gear box


Progressive ratio helical shaft gear reducer





Description:


Type

Stage

Model

Ratio

Nominal Power (KW)

Nominal Torque(N.m)

Shaft

Mounting

B Series Bevel-helical Gear Unit

Double-stage

4--18

5--14

41-4,436

5,800-226,000

S. Solid Shaft                                   H. Hollow Shaft                                 D.Hollow Shaft for Shrink Disk

H:Horizontal   V:Vertical M:Horizontal Design Without Feet

Three-Stage

4--26

12.5-90

62-4,452

70,100-952,000

Four-Stage

5--26

80-400

2.6-1,652

10.6-945,000




Applications:

  • Conveyor systems
  • Cooling towers and compressors
  • Extruders
  • Agitators (mixers)
  • Cement industry
  • Crane systems
  • Sewage plants
  • Mining
  • Forestry and paper industry
  • Sugar industry
  • Steel industry


Specification:



Series

Transmission Ratio  (i)

models

H1

1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2

6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15,



H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26



H3

25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,



H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26



H4

100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,



H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26






Two Stage Helical Gear Speed Reducer Hollow Shaft High Torque 0

Two Stage Helical Gear Speed Reducer Hollow Shaft High Torque 1
