Plastic Machine Ta Shaft Mounted Speed Reducer For Recycling and Shredding

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001
Model Number TA
Minimum Order Quantity 10 pcs
Price Usd 200-1500
Packaging Details 1pcs packed in one small box, 7- 8 small box packed in one crate.200pcs enter in 20" container.
Delivery Time 7-30 days
Payment Terms T/T or LC, Western Union
Supply Ability 1000pcs/month
Product Details
Application Recycling And Shredding Torque High Torque
Input Speed Up To 2000RPM Output Speed Up To 300RPM
Material For Gears 20CrMnTi Housing Treatment Smooth
High Light

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

 Descriptions:


The Hxg Round Shaft Mounts are available in 10 sizes: 30,35,40,45,50,60,70,80,100,125
with power ratings of upto 156 kW at 45 RPM

Hxg 30 - Bores 30 mm
Hxg 35- Bores 35 & 40 mm
Hxg 40 - Bores 40 & 45 mm
Hxg 45 - Bores 45, 50 & 55 mm
Hxg 50 - Bores 50, 55 & 60 mm
Hxg 60 - Bores 60 & 70 mm
Hxg 70 - Bores 70 & 85 mm
Hxg 80 - Bores 80 & 100 mm
Hxg 100 - Bores 100 & 125 mm
Hxg 125 - Bores 125 & 135 mm

Specifications:



Model Number


Input shaft Diameter

Output shaft hollow bore diameters:


Output torque
range

Torque arm length

Input Speed

Reduction Ratio:


Ta35-35D


19mm

30mm


1000Nm

220mm






1400rpm


900rpm


500rpm


5:1

7:1

10:1

12.5:1

15:1

20:1

25:1

31:1


Ta40-40D


24mm

40mm


1350Nm

240mm

Ta45-45D


28mm

45mm


2050Nm

260mm

Ta50-50D


42mm

50mm


2100Nm

280mm

Ta60-60D


48mm

60mm


3500Nm

300mm

Ta70-70D


48mm

70mm


4900Nm

320mm

Ta80-80D


55mm

80mm


6600Nm

380mm

Ta100-100D


55mm

100mm


10500Nm

520mm

Ta124-125D


60mm

125mm


16000Nm

560mm



Your benefits:


A. Output Keyed hollow shaft Up to three bore options per frame size
B. Gear case Sturdy cast housing suitable for outdoor installation
C. Backstop Available on all frame sizes - externally accessible
D. Concrete batching plant,crushes stone,sand making production line.
E. Especially designed for belt conveyor drives
F. Easy shaft-mounting design
G. Strong casing
H. Strengthened casing for heavy duty applications.
I. High resistant gears made in top quality steel.
J. Largely proportioned bearings.
K. High quality sealing for improved leaking prevention


Product images&Catalogue informations:

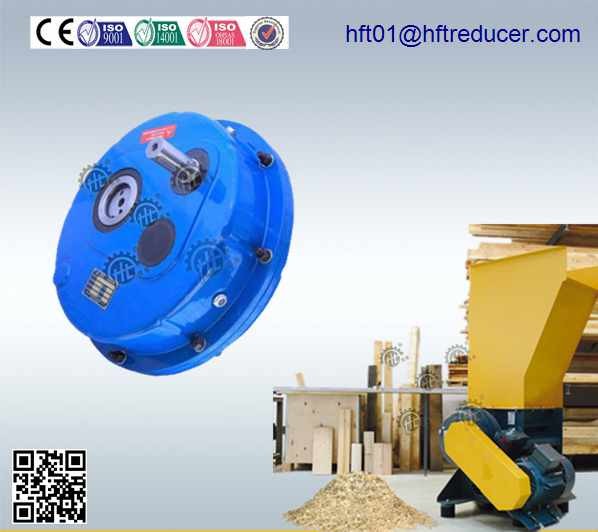

Plastic Machine Ta Shaft Mounted Speed Reducer For Recycling and Shredding 0

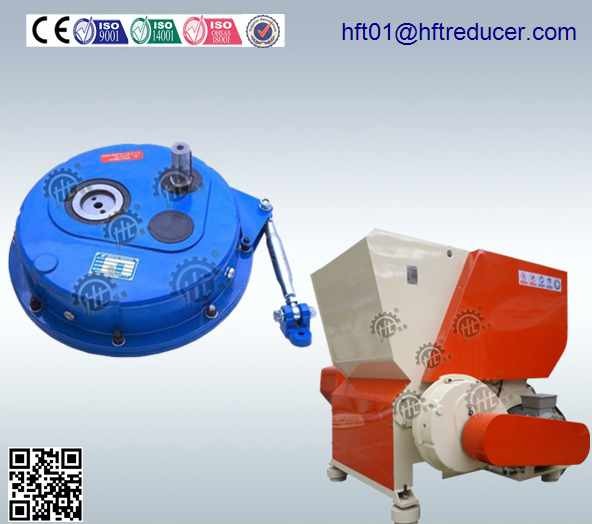

Plastic Machine Ta Shaft Mounted Speed Reducer For Recycling and Shredding 1
