HXG Round Helical Parallel Shaft Mounted Speed Reducer , Inline Gearbox Reducer

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name Hengtai
Certification CE,ISO9001:2008, TUV, SGS
Model Number HXG
Minimum Order Quantity 10 pcs
Price Usd 200-5000
Packaging Details 1pcs packed in one small box, 7- 8 small box packed in one crate.200pcs enter in 20" container.
Delivery Time 20 days
Payment Terms T/T or LC, Western Union
Supply Ability 1000pcs/month
Product Details
Sharp Round Gear Ratio 15:1
Input Speed 1500RPM Sizes HXG35-120
Application Mining Equipment Oil Seals NAK
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

 Descriptions:


The Hxg Round Shaft Mounts are available in 10 sizes: 30,35,40,45,50,60,70,80,100,125
with power ratings of upto 156 kW at 45 RPM

 Hxg 30 - Bores 30 mm
Hxg 35- Bores 35 & 40 mm
Hxg 40 - Bores 40 & 45 mm
Hxg 45 - Bores 45, 50 & 55 mm
Hxg 50 - Bores 50, 55 & 60 mm
Hxg 60 - Bores 60 & 70 mm
Hxg 70 - Bores 70 & 85 mm
Hxg 80 - Bores 80 & 100 mm
Hxg 100 - Bores 100 & 125 mm
Hxg 125 - Bores 125 & 135 mm

Specifications:

TA Helical parallel shaft mounted gear motor Spare Parts List


1.Casing


11.Bearing


21.Hex.head screw


31.Spacer ring


41.Pin for bracket


2.Cover


12.Bearing


22.Spring washer


32.Spacer ring



42.Pin for support


3.Rubber cap


13.Bearing


23.Hexagonal nut


33.Support


43.Cotter pin


4.Output shaft


14.Oilseal


24.Hexagonal head screw


34.Key




5.Gearwheel


15.Oilseal


25.Breather plug


35.Support




6.Input shaft


16.Rubber cap


26.Level plug


36.Bracket




7.Spacer ring


17.Circlip


27.Drain plug


37.Torque arm




8.Spring washer


18.Key


28.Rubber Cap


38.Right tie-rod




9.Gasket


19.Key


29.Spacer ring


39.Left tie-rod




10.Gasket


20.Dowel Pin


30.Clutch element


40.Hexagonal nut






Type

Torque NM

TA 30

150

TA 35

400

TA 40

900

TA 45

1.35

TA 50

2.1

TA 60

3.5

TA 70

4.9

TA 80

6.6

TA 100

10.5

TA 125

16



Your benefits:

1.Experience: 10years HXG shaft mounted reducer manufacturing and export experience provide with steady quality level.
Annual output 30000pcs HXG/TA export to Middle east,Africa,South America,Euro market familiar with all related import/export Custom Clearance documents helps save your cost.

2.Model:All size available from HXG/TA30-125.Ratio from 5-30,hot sale ratio 15 fits all your needs.

3.Package:1pcs packed in one small box with hook can easily pick up one by one. 8-12pcs packed in one standard export strong wooden crate can transport with fork easily.

4.Surface painting: Perfect clean and high quality gearbox surface painting with inferior smooth grey color RAL7031 or RAL5010 or depends on your need.

5.Spare parts: Machining with high precision CNC hobbing and CNC teeth grinding on gears and pinions.Perfect surface finish and high precision degree provides good reputation and bring you good profit.


Main Applications:


Stone Crushing Plant Equipments :

  • Vibrating Screen
  • Primary Crusher
  • Secondary Crusher
  • Belt Conveyors
  • Control Units
  • Drive Motor


Quality Control System:

  • 100% products Inspected by CMM
  • Gear Inspection Center
  • Material Inspection Lab
  • Trial Running Inspection
  • Leakage Inspection

Product images&Catalogue informations:

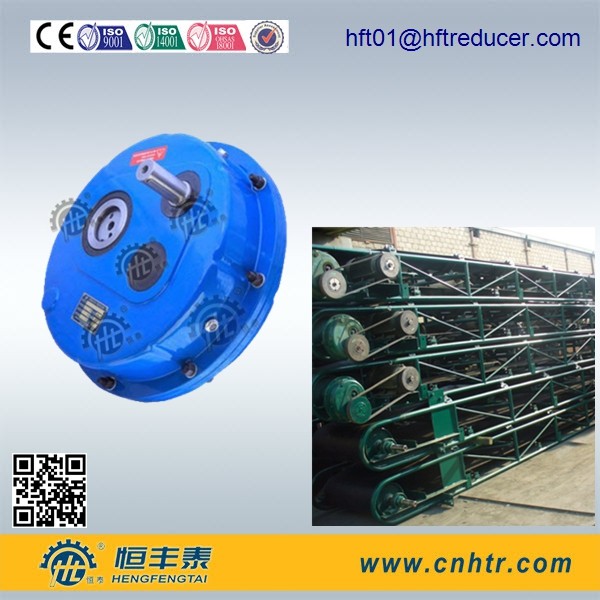

HXG Round Helical Parallel Shaft Mounted Speed Reducer , Inline Gearbox Reducer 0

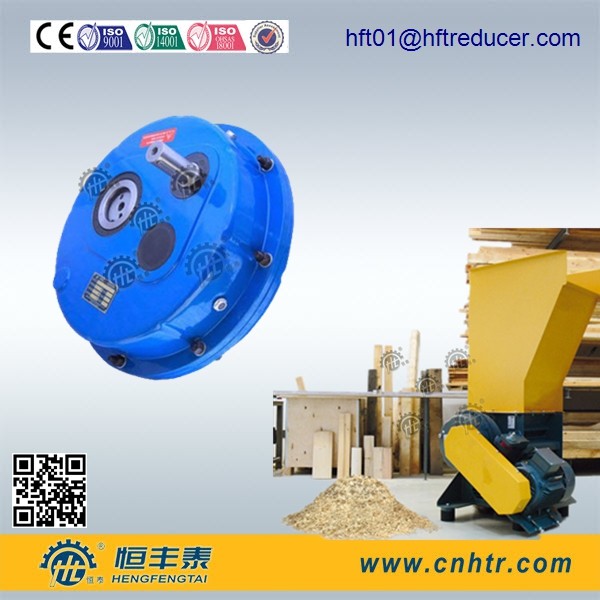

HXG Round Helical Parallel Shaft Mounted Speed Reducer , Inline Gearbox Reducer 1
HXG Round Helical Parallel Shaft Mounted Speed Reducer , Inline Gearbox Reducer 2

Other informations of Hengtai Reducer:


HXG Round Helical Parallel Shaft Mounted Speed Reducer , Inline Gearbox Reducer 3HXG Round Helical Parallel Shaft Mounted Speed Reducer , Inline Gearbox Reducer 4
