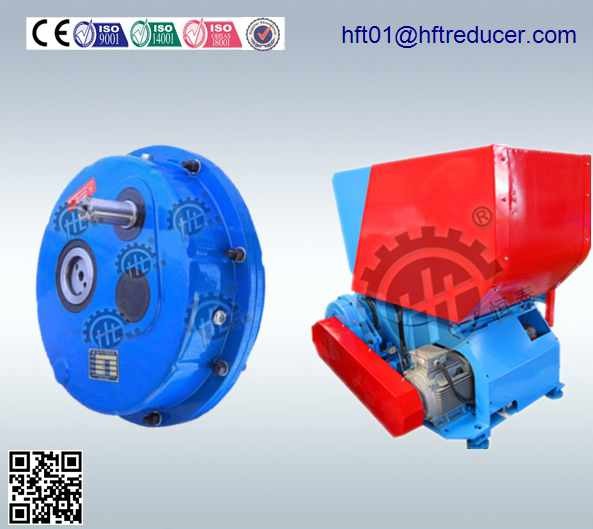

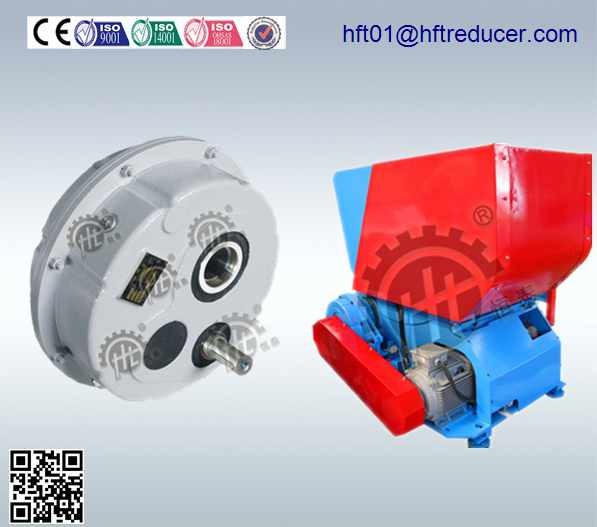

Mining Shaft Mounted inline gearbox reducer electric motor HXG gear reducer

  • img.alt
  • img.alt
Place of Origin Wenzhou,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,TUV,SGS
Model Number HXG series
Minimum Order Quantity 1 pcs
Price Usd 200-2000
Packaging Details 1pcs packed in one small box, 7- 8 small box packed in one crate.200pcs enter in 20" container.
Delivery Time 15-30 days
Payment Terms T/T or LC, Western Union
Supply Ability 2000pcs/month
Product Details
Material Cast Iron Ratio 5:1 To 30 : 1
Input Shaft Up To 60mm Application Mining
Main Market Middle East
High Light

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

Torque table:


Type

Torque NM

TA 30

150

TA 35

400

TA 40

900

TA 45

1.35

TA 50

2.1

TA 60

3.5

TA 70

4.9

TA 80

6.6

TA 100

10.5

TA 125

16


     Product Description:


    Model Number


    Input shaft Diameter

    Output shaft hollow bore diameters:


    Output torque
    range

    Torque arm length

    Input Speed

    Reduction Ratio:


    Hxg35-35D


    19mm

    30mm


    1000Nm

    220mm






    1400rpm


    900rpm


    500rpm


    5:1

    7:1

    10:1

    12.5:1

    15:1

    20:1

    25:1

    31:1


    Hxg40-40D


    24mm

    40mm


    1350Nm

    240mm

    Hxg45-45D


    28mm

    45mm


    2050Nm

    260mm

    Hxg50-50D


    42mm

    50mm


    2100Nm

    280mm

    Hxg60-60D


    48mm

    60mm


    3500Nm

    300mm

    Hxg70-70D


    48mm

    70mm


    4900Nm

    320mm

    Hxf80-80D


    55mm

    80mm


    6600Nm

    380mm

    Hxg100-100D


    55mm

    100mm


    10500Nm

    520mm

    Hxg125-125D


    60mm

    125mm


    16000Nm

    560mm


    Benefits:
    1.Experience: 10years HXG shaft mounted reducer manufacturing and export experience provide with steady quality level.
    Annual output 30000pcs HXG/TA export to Middle east,Africa,South America,Euro market familiar with all related import/export Custom Clearance documents helps save your cost.

    2.Model:All size available from HXG/TA30-125.Ratio from 5-30,hot sale ratio 15 fits all your needs.

    3.Package:1pcs packed in one small box with hook can easily pick up one by one. 8-12pcs packed in one standard export strong wooden crate can transport with fork easily.

    4.Surface painting: Perfect clean and high quality gearbox surface painting with inferior smooth grey color RAL7031 or RAL5010 or depends on your need.

    5.Spare parts: Machining with high precision CNC hobbing and CNC teeth grinding on gears and pinions.Perfect surface finish and high precision degree provides good reputation and bring you good profit.


    Applications:
    Stone Crushing Plant Equipments :
    Vibrating Screen
    Primary Crusher
    Secondary Crusher
    Belt Conveyors
    Control Units
    Drive Motor

    Quality Control System:
    100% products Inspected by CMM
    Gear Inspection Center
    Material Inspection Lab
    Trial Running Inspection
    Leakage Inspection

    If you are interested in our products or have any questions, please feel free to contact us.

    Mining Shaft Mounted inline gearbox reducer electric motor HXG gear reducer 0
    Mining Shaft Mounted inline gearbox reducer electric motor HXG gear reducer 1


    Other informations of Hengtai Reducer:
    Mining Shaft Mounted inline gearbox reducer electric motor HXG gear reducer 2
    Mining Shaft Mounted inline gearbox reducer electric motor HXG gear reducer 3
