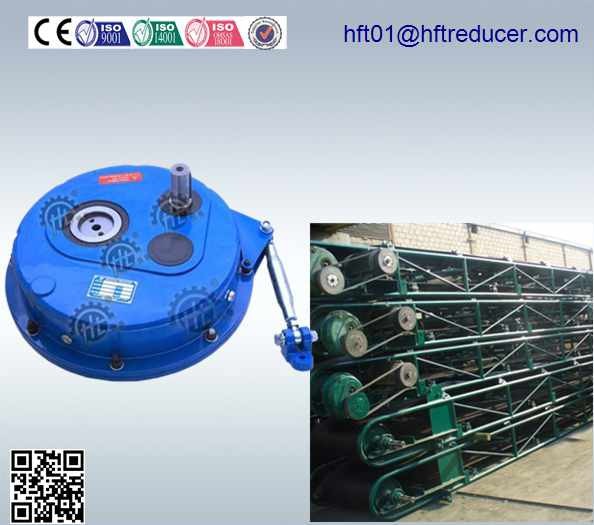

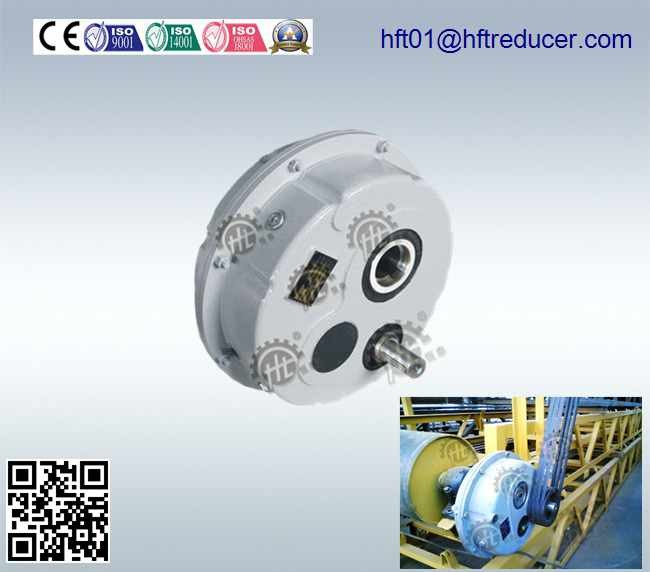

Gear Reduction Box TA Shaft Mounted Speed Reducer For Automatic Transmission

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name Hengtai
Certification CE,ISO9001:2008, TUV,SGS
Model Number TA series
Minimum Order Quantity 100 pcs
Price Usd 200-1500 PCS
Packaging Details 1pcs packed in one small box, 7- 8 small box packed in one crate.200pcs enter in 20" container.
Delivery Time 20 days
Payment Terms T/T or LC, Western Union
Supply Ability 1000pcs/month
Product Details
Gear Ratio 15/1 Ratio Range 5/1-30/1
Dia. Of Bore Up To 125mm Housing Material Cast Iron
Rated Torque 20000Nm Weight Up To 200KG
High Light

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

Descriptions:

Torque range (n1 = 900 min-1)

150 Nm … 16.000 Nm

Mechanical rating (n1 = 900 min-1)

1, 1 kW … 156 kW

Gear ratios

iN = 5, 0 … 31, 5

Output shaft

Keyed hollow shaft Upto three bore options per frame size

Gearcase

Sturdy cast housing suitable for outdoor installation

Backstop

Available on all frame sizes – externally accessible



Model Number


Input shaft Diameter

Output shaft hollow bore diameters:


Output torque
range

Torque arm length

Input Speed

Reduction Ratio:


Hxg35-35D


19mm

30mm


1000Nm

220mm






1400rpm


900rpm


500rpm


5:1

7:1

10:1

12.5:1

15:1

20:1

25:1

31:1


Hxg40-40D


24mm

40mm


1350Nm

240mm

Hxg45-45D


28mm

45mm


2050Nm

260mm

Hxg50-50D


42mm

50mm


2100Nm

280mm

Hxg60-60D


48mm

60mm


3500Nm

300mm

Hxg70-70D


48mm

70mm


4900Nm

320mm

Hxg80-80D


55mm

80mm


6600Nm

380mm

Hxg100-100D


55mm

100mm


10500Nm

520mm

Hxf125-125D


60mm

125mm


16000Nm

560mm


    Your benefits:

    1.Experience: 10years HXG shaft mounted reducer manufacturing and export experience provide with steady quality level.
    Annual output 30000pcs HXG/TA export to Middle east,Africa,South America,Euro market familiar with all related import/export Custom Clearance documents helps save your cost.

    2.Model:All size available from HXG/TA30-125.Ratio from 5-30,hot sale ratio 15 fits all your needs.

    3.Package:1pcs packed in one small box with hook can easily pick up one by one. 8-12pcs packed in one standard export strong wooden crate can transport with fork easily.

    4.Surface painting: Perfect clean and high quality gearbox surface painting with inferior smooth grey color RAL7031 or RAL5010 or depends on your need.

    5.Spare parts: Machining with high precision CNC hobbing and CNC teeth grinding on gears and pinions.Perfect surface finish and high precision degree provides good reputation and bring you good profit.


    Applications:
    Grinding Plant
    Ultra Fine Vertical Grinding Mill
    Mobile Jaw Crusher
    VM – Vertical Grinding Mill
    European Type Grinding Mill
    Micro Powder Mill
    Trapezium Mill
    Raymond Mill
    Ball Mill
    European Hammer Mill
    Washing & Screening Machine
    Vibrating Screen
    Belt Conveyor
    Vibrating Feeder
    Screw Sand Washing Machine
    Wheel Sand Washing Machine

    Competitive Advantage:
    Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:
    Main product: reducer, Mixing equipments, settle tank, aluminum process equipments and etc.

    R&D: participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
    Factory Scale:  Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.
    Turnover of last year: 60m USD

    Product Catalogue informations:

    Gear Reduction Box TA Shaft Mounted Speed Reducer For Automatic Transmission 0

    Other informations of Hengtai Reducer:
    Gear Reduction Box TA Shaft Mounted Speed Reducer For Automatic Transmission 1
    Gear Reduction Box TA Shaft Mounted Speed Reducer For Automatic Transmission 2

    For more informations,welcome to contact with us

    Zhejiang Hengfengtai Reducer Mfg Co.,Ltd

    Add:No.1489 1St Avenue Binhai Industrial Zone Wenzhou Zhejiang

    Tel:0086-577-86119817

    Fax:0086-577-86118098

    Mob:0086-18858718816
