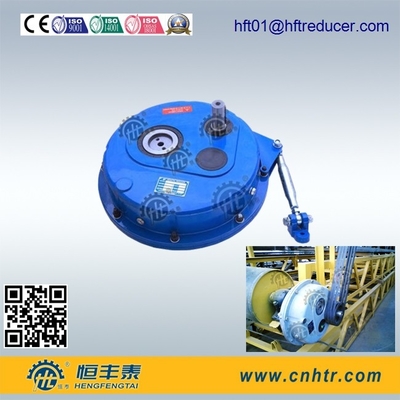

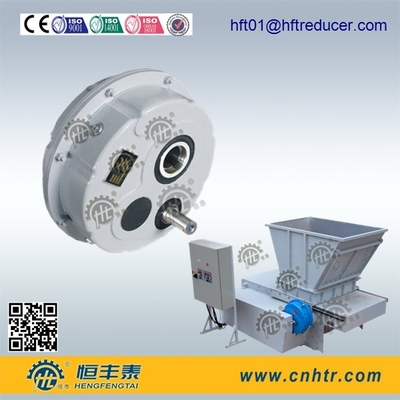

TA Big Torque Shaft Mounted Speed Reducer With Hollow Shaft And Two Stage

  • img.alt
  • img.alt
Place of Origin Wenzhou,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001
Model Number TA series
Minimum Order Quantity 100 pcs
Price Usd 200-5000
Packaging Details 1pcs packed in one small box, 7- 8 small box packed in one crate.200pcs enter in 20" container.
Delivery Time 20 days
Payment Terms T/T or LC, Western Union
Supply Ability 1000pcs/month
Product Details
Material Cast Iron Ratio 15:1
Input Shaft 48mm Mineral Oil Change Time 65hours
Lubricate Synthetic Oil Oil Volume 10L
High Light

hollow shaft gear reducer

,

shaft mounted gearbox
Leave a Message
Product Description

Descriptions:

Torque range (n1 = 900 min-1)

150 Nm … 16.000 Nm

Mechanical rating (n1 = 900 min-1)

1, 1 kW … 156 kW

Gear ratios

iN = 5, 0 … 31, 5

Output shaft

Keyed hollow shaft Upto three bore options per frame size

Gearcase

Sturdy cast housing suitable for outdoor installation

Backstop

Available on all frame sizes – externally accessible




·         CASE MATERIAL IS GG20 CASTING MATERIAL

·         CASE HAVE MORE STRENGTH AND ESTHETIC VIEW

·         PLACE FOR BEARINGS ARE MACHINED ACCORDING TO STANDARDS

·         LONG LIFE CYCLE IS CONSIDERED FOR SELECTING BEARINGS

·         GEARS MATERIAL IS SAE 8620 FORGING MATERIALS AND ISOTHERMIC TEMPERING IS APPLIED

·         CARBURIZING IS APPLIED ACCORDING TO MODULE OF GEARS AND ADJUSTING HARDNESS DEPTH

·         GRINDING AND SCRAPING ARE APPLIED TO GEARS

·         SHAFT MATERIAL IS SAE 1050 STEEL AND TOLERANCES ARE ADJUSTED ACCORDING TO STANDARD NORMS





Specifications:


Model Number


Input shaft Diameter

Output shaft hollow bore diameters:


Output torque
range

Torque arm length

Input Speed

Reduction Ratio:


Ta35-35D


19mm

30mm


1000Nm

220mm






1400rpm


900rpm


500rpm


5:1

7:1

10:1

12.5:1

15:1

20:1

25:1

31:1


Ta40-40D


24mm

40mm


1350Nm

240mm

Ta45-45D


28mm

45mm


2050Nm

260mm

Ta50-50D


42mm

50mm


2100Nm

280mm

Ta60-60D


48mm

60mm


3500Nm

300mm

Ta70-70D


48mm

70mm


4900Nm

320mm

Ta80-80D


55mm

80mm


6600Nm

380mm

Ta100-100D


55mm

100mm


10500Nm

520mm

Ta124-125D


60mm

125mm


16000Nm

560mm


Your benefits:

1.Experience: 10years HXG shaft mounted reducer manufacturing and export experience provide with steady quality level.
Annual output 30000pcs HXG/TA export to Middle east,Africa,South America,Euro market familiar with all related import/export Custom Clearance documents helps save your cost.

2.Model:All size available from HXG/TA30-125.Ratio from 5-30,hot sale ratio 15 fits all your needs.

3.Package:1pcs packed in one small box with hook can easily pick up one by one. 8-12pcs packed in one standard export strong wooden crate can transport with fork easily.

4.Surface painting: Perfect clean and high quality gearbox surface painting with inferior smooth grey color RAL7031 or RAL5010 or depends on your need.

5.Spare parts: Machining with high precision CNC hobbing and CNC teeth grinding on gears and pinions.Perfect surface finish and high precision degree provides good reputation and bring you good profit.


Applications:


Grinding Plant

Ultra Fine Vertical Grinding Mill
Mobile Jaw Crusher
VM – Vertical Grinding Mill
European Type Grinding Mill
Micro Powder Mill
Trapezium Mill
Raymond Mill
Ball Mill
European Hammer Mill


Washing & Screening Machine

Vibrating Screen
Belt Conveyor
Vibrating Feeder
Screw Sand Washing Machine
Wheel Sand Washing Machine

Competitive Advantage:

Manufacture capacity

  • 350 personnel in Production Department, among them, 5 senior technicians, 10 junior technicians, and 82 have professional operation certificate.
  • 2 manufacture plants with area more than 50000 square meters.
  • More than 300sets of advanced imported equipments: German CNC,  Hobbing Machine, Grinding Machine, CNC plane mill, CNC boring machine, and CNC lathe machine etc


Quality Control System

  • ISO 9001-2000 Certificate
  • ISO 14001 Certificate
  • GB/T 28000 Certificate
  • CMM Inspection on each batch of gears
  • Gear Inspection Center
  • Material Inspection Lab
  • Trial Run Inspection
  • Leakage Inspection
  • and etc



Product Catalogue informations:

TA Big Torque Shaft Mounted Speed Reducer With Hollow Shaft And Two Stage 0


TA Big Torque Shaft Mounted Speed Reducer With Hollow Shaft And Two Stage 1

TA Big Torque Shaft Mounted Speed Reducer With Hollow Shaft And Two Stage 2

Other informations of Hengtai Reducer:


TA Big Torque Shaft Mounted Speed Reducer With Hollow Shaft And Two Stage 3

TA Big Torque Shaft Mounted Speed Reducer With Hollow Shaft And Two Stage 4
