Anti Backlash Shaft Mounted Speed Reducer Power Transmission Gearbox
| Place of Origin | Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008, TUV, SGS, etc |
| Model Number | HXG series |
| Minimum Order Quantity | 100 pcs |
| Price | Usd 200-5000 |
| Packaging Details | 1pcs packed in one small box, 7- 8 small box packed in one crate.200pcs enter in 20" container. |
| Delivery Time | 20 days |
| Payment Terms | T/T or LC, Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Ratio | 15:1 | Materia, | Grey Iron |
|---|---|---|---|
| Input Shaft | 48mm | Allowed Torque | Up To 16000Nm |
| Input Speed | 1400rpm | Output Speed | 93rpm |
| High Light | shaft mounted gearbox,Shaft mounted Gear Reducer |
||
Product Description
Anti Backlash Shaft Mounted Speed Reducer Power Transmission Gearbox
Descriptions:
Model Number: Hxg30-Ta125
Hxg30-30D
Hxg40-40D
Hxg45-45D
Hxg50-50D
Hxg60-60D
Hxg70-70D
Hxg80-80D
Hxg100-100D
Hxg125-125D
Specifications:
Model Number | Input shaft Diameter | Output shaft hollow bore diameters: | Output torque | Torque arm length | Input Speed | Reduction Ratio: |
Hxg 35-35D | 19mm | 30mm | 1000Nm | 220mm | | |
Hxg 40-40D | 24mm | 40mm | 1350Nm | 240mm | ||
Hxg 45-45D | 28mm | 45mm | 2050Nm | 260mm | ||
Hxg 50-50D | 42mm | 50mm | 2100Nm | 280mm | ||
Hxg 60-60D | 48mm | 60mm | 3500Nm | 300mm | ||
Hxg 70-70D | 48mm | 70mm | 4900Nm | 320mm | ||
Hxg 80-80D | 55mm | 80mm | 6600Nm | 380mm | ||
Hxg100-100D | 55mm | 100mm | 10500Nm | 520mm | ||
Hxg125-125D | 60mm | 125mm | 16000Nm | 560mm |

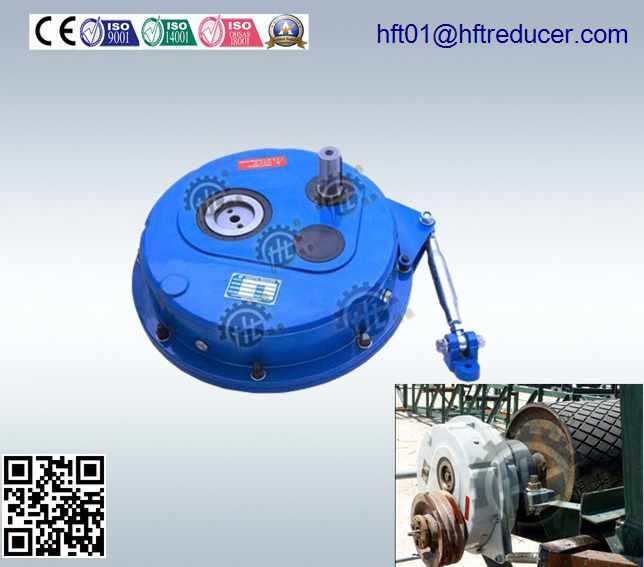

Applications:
Washing & Screening Machine
Vibrating Screen
Belt Conveyor
Vibrating Feeder
Screw Sand Washing Machine
Wheel Sand Washing Machine
Competitive Advantage:
R&D: participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.
Turnover of last year: 60m USD
Manufacture capacity
350 personnel in Production Department, among them, 5 senior technicians, 10 junior technicians, and 82 have professional operation certificate.
2 manufacture plants with area more than 50000 square meters.
More than 300sets of advanced imported equipments: German CNC, Hobbing Machine, Grinding Machine, CNC plane mill, CNC boring machine, and CNC lathe machine etc
Quality Control System
ISO 9001-2000 Certificate
ISO 14001 Certificate
GB/T 28000 Certificate
CMM Inspection on each batch of gears
Gear Inspection Center
Material Inspection Lab
Trial Run Inspection
Leakage Inspection
and etc
