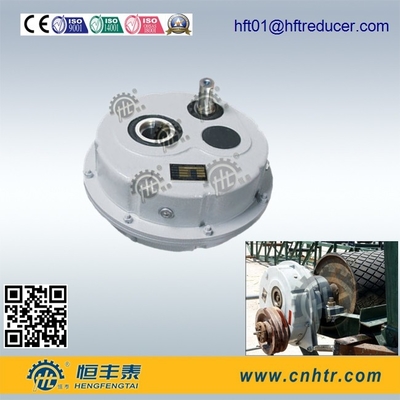

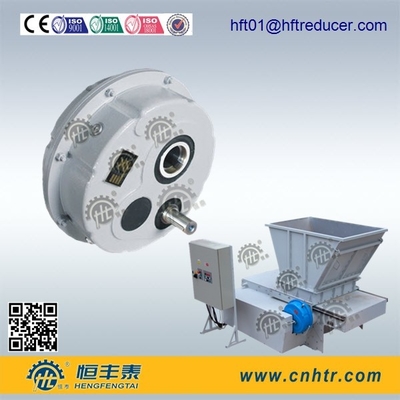

HXG Shaft Mounted Gearbox With Tie Rod for Sand Production Line

  • img.alt
  • img.alt
Place of Origin Wenzhou,Zhejiang
Brand Name Hengtai
Certification CE,ISO9001:2008,TV,SGS
Model Number HXG series
Minimum Order Quantity 50 pcs
Price USD 150-5000
Packaging Details 1pcs packed in one small box, 7- 8 small box packed in one crate.200pcs enter in 20" container.
Delivery Time 20 days
Payment Terms T/T or LC, Western Union
Supply Ability 1000pcs/month
Product Details
Ratio 15/1, 20/1,25/1 Torque Up To 17000Nm
Input Shaft 42mm Tie Rod Yes
Back Stop Yes Color Blue, Grey
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Descriptions:


Torque range (n1 = 900 min-1)

150 Nm … 16.000 Nm

Mechanical rating (n1 = 900 min-1)

1, 1 kW … 156 kW

Gear ratios

iN = 5, 0 … 31, 5

Output shaft

Keyed hollow shaft Upto three bore options per frame size

Gearcase

Sturdy cast housing suitable for outdoor installation

Backstop

Available on all frame sizes – externally accessible


The Factory supplies Components and Services for Bulk Material Handling Systems for Stone Quarries, Cement Factories, Sand Washing Plants, Ready Mix Plants and Conveyor System for Industrial Automation for harsh climactic conditions.
Aggregates Mining company with contemporary crushing plants and Mine machineries

Crusher Plant Aggregate & Sand

crushers spares ta shaft mounted gear reducer

Specifications:


Model Number


Input shaft Diameter

Output shaft hollow bore diameters:


Output torque
range

Torque arm length

Input Speed

Reduction Ratio:


Hxg 35-35D


19mm

30mm


1000Nm

220mm






1400rpm


900rpm


500rpm


5:1

7:1

10:1

12.5:1

15:1

20:1

25:1

31:1


Hxg 40-40D


24mm

40mm


1350Nm

240mm

Hxg 45-45D


28mm

45mm


2050Nm

260mm

Hxg 50-50D


42mm

50mm


2100Nm

280mm

Hxg 60-60D


48mm

60mm


3500Nm

300mm

Hxg 70-70D


48mm

70mm


4900Nm

320mm

Hxg 80-80D


55mm

80mm


6600Nm

380mm

Hxg100-100D


55mm

100mm


10500Nm

520mm

Hxg124-125D


60mm

125mm


16000Nm

560mm



Type

Torque NM

TA 30

150

TA 35

400

TA 40

900

TA 45

1.35

TA 50

2.1

TA 60

3.5

TA 70

4.9

TA 80

6.6

TA 100

10.5

TA 125

16


Applications:

Washing & Screening Machine

Vibrating Screen
Belt Conveyor
Vibrating Feeder
Screw Sand Washing Machine
Wheel Sand Washing Machine

The Factory supplies Components and Services for Bulk Material Handling Systems for Stone Quarries, Cement Factories, Sand Washing Plants, Ready Mix Plants and Conveyor System for Industrial Automation for harsh climactic conditions.


Competitive Advantage:

R&D: participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
Factory Scale:  Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.
Turnover of last year: 60m USD

Manufacture capacity

  • 350 personnel in Production Department, among them, 5 senior technicians, 10 junior technicians, and 82 have professional operation certificate.
  • 2 manufacture plants with area more than 50000 square meters.
  • More than 300sets of advanced imported equipments: German CNC,  Hobbing Machine, Grinding Machine, CNC plane mill, CNC boring machine, and CNC lathe machine etc
  •
  • Marketing Network
  • 10 offices and branches at home and abroad.
  • 50 sales manager service for domestic and abroad market.
  • Depends on the quality products and reliable services, 10,000 customers at home and abroad have approved Hengfengtai products and brand meaning, established steady foundation with 5000 strength-oriented enterprises, products have exported to at least 30 different countries in the world from Asia, Europe and Africa.
