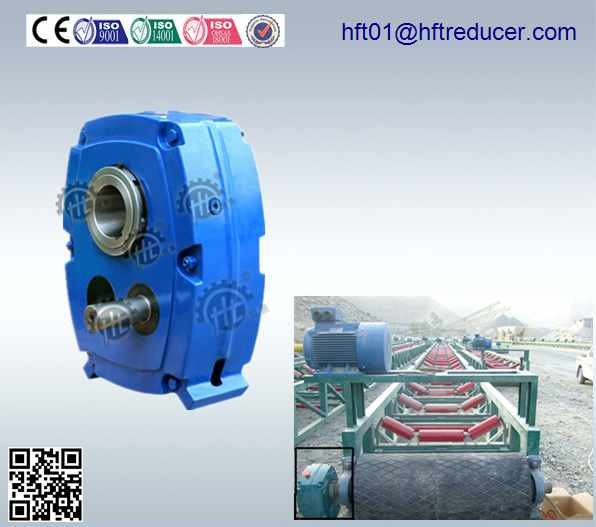

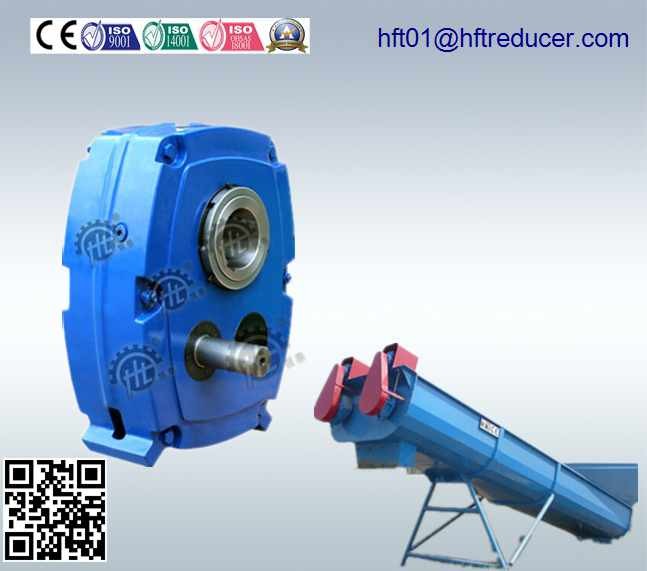

Hollow Shaft Mounted Speed Reducer High Torque 85mm Conveyor

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HT
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HXGF series
Minimum Order Quantity 5 pcs
Price USD130-2500
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time 20 days
Payment Terms T/T or LC, Western Union
Supply Ability 2000pcs/Month
Product Details
Output Bore 85mm Material Cast Iron
Input Shaft 48mm Ratio 5:1,13:1,20:1
Housing Height 550mm Models B,C,D,E,F,G,H,J.
High Light

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Hollow Shaft Mounted Speed Reducer High Torque 85mm Conveyor

Quick Details:

Model

Number



Input

shaft Diameter

Output shaft hollow bore diameters:



Output torque

range

Torque

arm length

Input Speed

Reduction Ratio:



B

19mm

30mm

277Nm

220mm





1400rpm

900rpm

500rpm





5:1

13:1

20:1

C

22mm

40mm

468Nm

240mm

D

25mm

50mm

783Nm

260mm

E

28mm

55mm

1194Nm

280mm

F

32mm

75mm

1881Nm

300mm

G

42mm

85mm

2970Nm

320mm

H

48mm

100mm

4680Nm

380mm

J

55mm

125mm

7449Nm

520mm




Permitted Torque:


Model(single/double) HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Nm(100rpm) 256 277 401 468 632 783 983 1194 1444 1881 2407 2970 3457 4380 5940

7449






Specifications:


Dimension(mm) HXGF Size
HXGF30 HXGF40 HXGF50 HXGF55 HXGF65 HXGF75 HXGF85 HXGF100
Standard size of shaft 30 40 50 55 65 75 85 100
Alternative size of shaft 40 50 55 65 75 85 100 120
Input shaft keyway 6x3.5x50 6x3.5x59 8x4x63 8x4x70 10x5x70 12x5x90 14x5.5x100

16x6x100





Applicable Industries:

  • Road Construction Machinery
  • Mining & Minerals Industry
  • Cement Industry
  • Chemical Industry
  • Coal Industry
  • Salt Industry
  • Ceramic Industry
  • Sugar Industry
  • Paper And Pulp Industry
  • Iron And Steel Industry
  • Pharmaceuticals Industry
  • Textile Industry
  • Leather And Plastic Industry
  • Food Processing Industry

Company:


Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:
Main product: reducer, Mixing equipments, settle tank, aluminum process equipments High&New Solar Thermal reducer, industrial robot reducer.

R&D: participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
Factory Scale:  Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.
Turnover of last year: 60m USD



Hollow Shaft Mounted Speed Reducer High Torque 85mm Conveyor 0



Hollow Shaft Mounted Speed Reducer High Torque 85mm Conveyor 1Hollow Shaft Mounted Speed Reducer High Torque 85mm Conveyor 2
