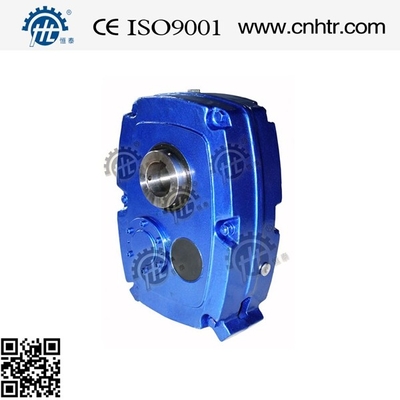

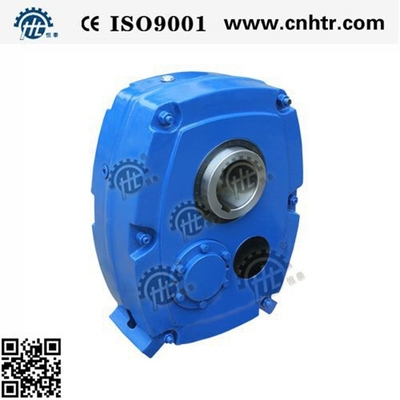

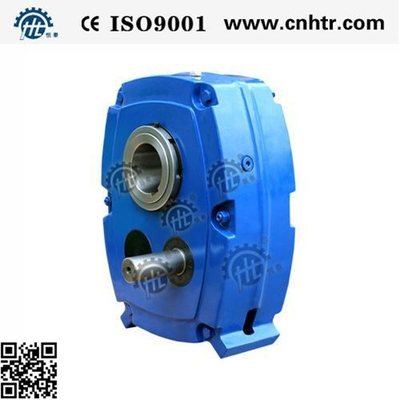

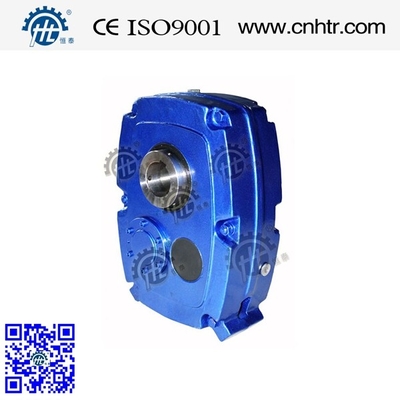

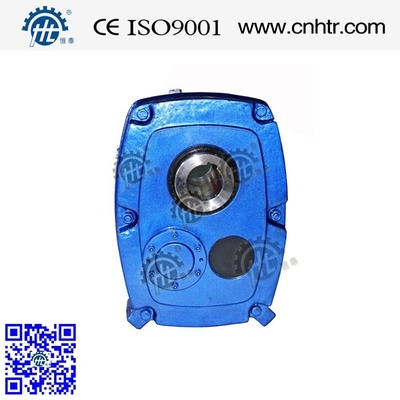

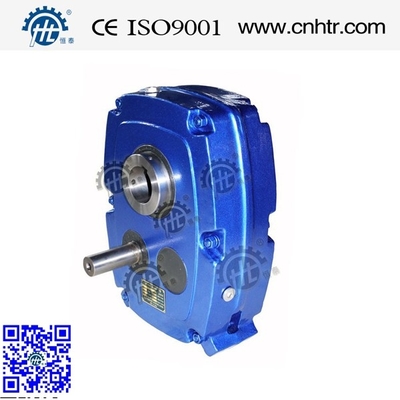

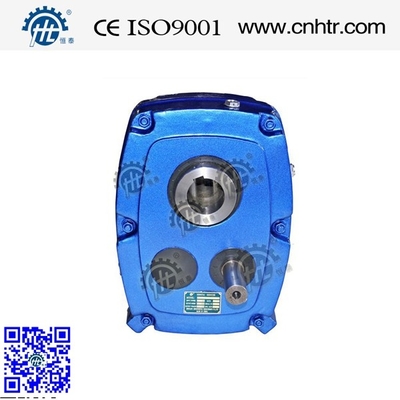

Same With Fenner Smsr Type HXGF Shaft Mounted Gearbox For Crusher Mining Application

  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin China
Brand Name HENGTAI
Certification CE,ISO,TUV,SGS, etc
Model Number B,C,D,E,F,G,H,J
Minimum Order Quantity 5 Pieces
Price USD $150-1500
Packaging Details 8-10 pcs packed in one pallet.
Delivery Time 7-30days(According to qty)
Payment Terms T/T; L/C
Supply Ability 3000 Pieces Per Month
Product Details
Mounting Position A,B,C,D Drive Method Belt Drive
Input Speed； Up To 2000RPM Typical Industries Conveyors, Mixers, Mills
Material Of Housing Cast Iron Oil Capacity Up To 20L
High Light

hollow shaft gear reducer

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Same With Fenner Smsr Type HXGF Shaft Mounted Gearbox For Crusher Mining Application:



AVAILABLE IN 10 DIFFERENT SIZES FROM SIZE B TO SIZE J

POWER RATINGS FROM 0.25 Kw TO 70 Kw

AVAILABLE IN FIVE RATIOS OF 5:1,13:1,15:1,20:1

ALL GEARS ARE OF HIGH GRADE ALLOY STEEL

HARDENED AND GROUND  HELICAL GEAR TRAIN

EACH UNIT SUPPLIED WITH CORROSION RESISTANT TORQUE ARM and DOUBLE LIP OIL SEALS

TORQUE ARM AND HUB COVERS SUPPLIED AS STANDARD ACCESSORIES

INGECO GEARBOXES EXCEEDS THE CUSTOMERS EXPECTATIONS.


Advantages:



The shaft mounts have labyrinth sealing on the conveyor end and input shaft end so that the oil seal is safe from contamination.
The front end of the shaft mount has a hub cover to protect the front oil seal as well as moving part of the gearbox.
Input shaft front bearing is a roller bearing as it takes in more radial load from the belt pressure.
Breather plugs are extended so that the dust does not clog the breather hole.
All oil seals imported from Taiwan.
Our gear units now have higher load capacity as the gears have been redesigned.
All gears are case carburised to a casedepth and ground inhouse.
All gear units are machined on a CNC machining center so are very accurate in alignment.
Finish of all gear units are far superior to any other brand being sold out of India.
The shaft mounts are available with keyed hollow shafts or hollow taper bores with taper clamps.





About SMSR:



Same With Fenner Smsr Type HXGF Shaft Mounted Gearbox For Crusher Mining Application 0

Same With Fenner Smsr Type HXGF Shaft Mounted Gearbox For Crusher Mining Application 1



Package for HXGF:



Same With Fenner Smsr Type HXGF Shaft Mounted Gearbox For Crusher Mining Application 2
