High Precision Cycloidal Speed Reducer , Worm Gear Speed Reducer
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HDR series |
| Minimum Order Quantity | 1pcs |
| Price | US $ 3000 - 90000 / Piece |
| Packaging Details | 1 PCS packed in ONE WOODEN CRATE |
| Delivery Time | 40 days |
| Payment Terms | T/T or LC |
| Supply Ability | 100pcs/month |
Product Details
| Backlash | 0.015 Degree | Torque | 3000Nm |
|---|---|---|---|
| Model | HDR470 | Mirror Volume | 30 Square Meters |
| Ratio | 43000:1 | Weight | 250Kg |
| High Light | cycloidal speed reducer,cyclo gear reducer |
||
Product Description

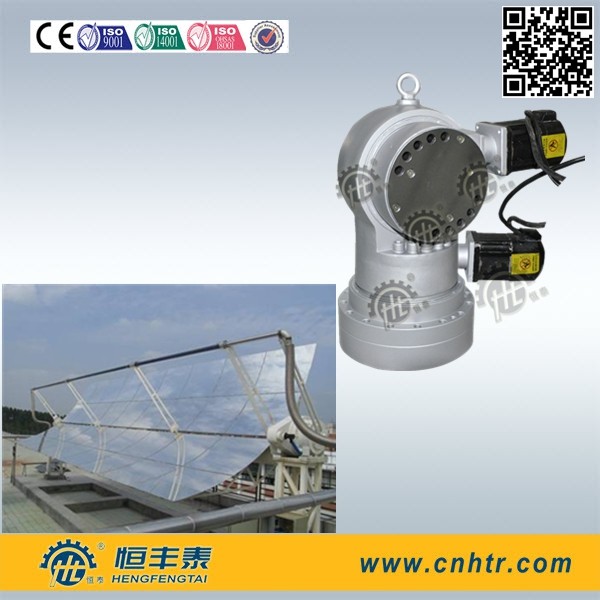

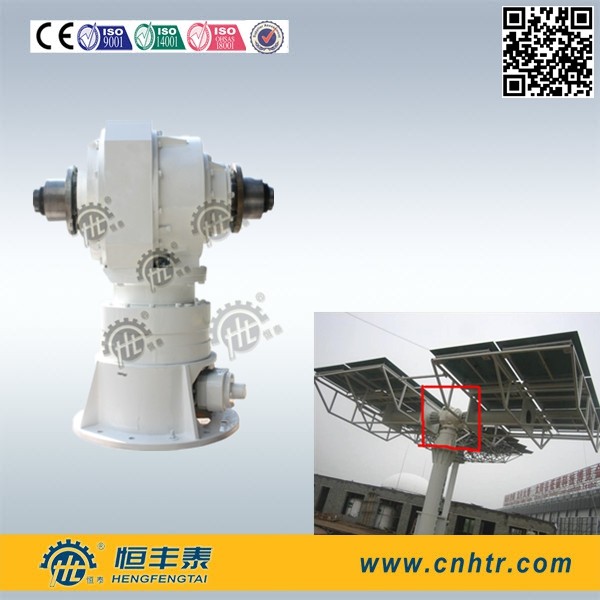

High Precision Cycloidal Speed Reducer , Worm Gear Speed Reducer
Features:
Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting
HJR04 Performance index | |||
Performance | Unit | (Fx shaft) | (Fz shaft) |
MotorPower | (w) | 400 | 200 |
Ratio | —— | 43711.01 | 45035.586 |
| —— | ≥40% | ≥40% |
backlash | (°) | 0.05° | 0.05° |
Service life | year | ≥25 | ≥25 |
Nominal output torque | (Nm) | 7060 | 5680 |
Max output torque | Nm | 17650 | 14200 |
Static load | (N) | 25000 | 20000 |
Dynamic load | (N) | 25000 | 20000 |
Service environment | (℃) | -20~50 | -20~50 |
Noise | (db) | ≤70db | ≤70db |
Maximum strength | |||
Torsional strength (Nm/rad) | 11.4×10e6 | ||
Bending strength (Nm/rad) | 16.2×10e6 | ||
Performance | Ratio | Rotate range | Horizontal allowable maximum dynamic torque | Horizontal allowable maximum static torque | Elevation allowable maximum dynamic torque | Elevation allowable maximum static torque | Maximum torsional stiffness | Backlash |
HJR01 | 35000 | 360 | 5578 | 9296 | 5132 | 8553 | 15.7×10e6 | 0.015 |
HJR02 | 35000 | 360 | 5976 | 9960 | 5756 | 9593 | 18.4×10e6 | 0.015 |
HJR03 | 35000 | 360 | 10160 | 16933 | 9865 | 16442 | 36.0×10e6 | 0.015 |
HJR04 | 35000 | 360 | 15216 | 25360 | 14512 | 23587 | 38.0×10e6 | 0.015 |
HJR05 | 35000 | 360 | 27430 | 45717 | 26381 | 43968 | 10.5×10e7 | 0.015 |
HJR06 | 35000 | 360 | 36887 | 61479 | 35785 | 59642 | 14.4×10e7 | 0.015 |
HJR07 | 35000 | 360 | 48285 | 80474 | 47665 | 79442 | 19.0×10e7 | 0.015 |
HJR08 | 35000 | 360 | 62595 | 104325 | 61758 | 102930 | 33.3×10e7 | 0.015 |
Competitive Advantage:
Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:
Main product: reducer, Mixing equipments, settle tank, aluminum process equipments High&New Solar Thermal reducer, industrial robot reducer.
R&D: participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.
Turnover of last year: 60m USD
