Solar Drive Cycloidal Gear Reducer Static Load 120Kn Ratio 49295/1
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HDR series |
| Minimum Order Quantity | 1pcs |
| Price | US $ 3000 - 90000 / Piece |
| Packaging Details | 1 PCS packed in ONE WOODEN CRATE |
| Delivery Time | 40 days |
| Payment Terms | T/T or LC |
| Supply Ability | 100pcs/month |
Product Details
| Backlash | 0.01degree | Model | HJX Parabolic |
|---|---|---|---|
| Torque | 3000Nm | Mirror Volume | 70 Square Meters |
| Ratio | 42000 | Weight | 300Kg |
| High Light | cyclo gear reducer,speed reduction gearbox |
||
Product Description

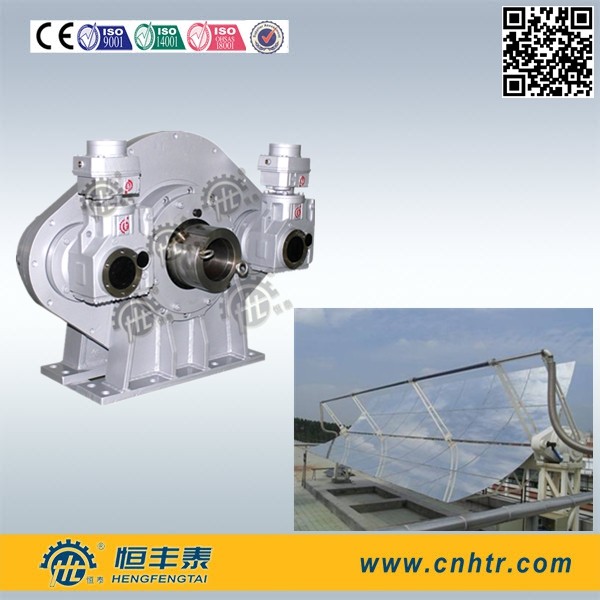

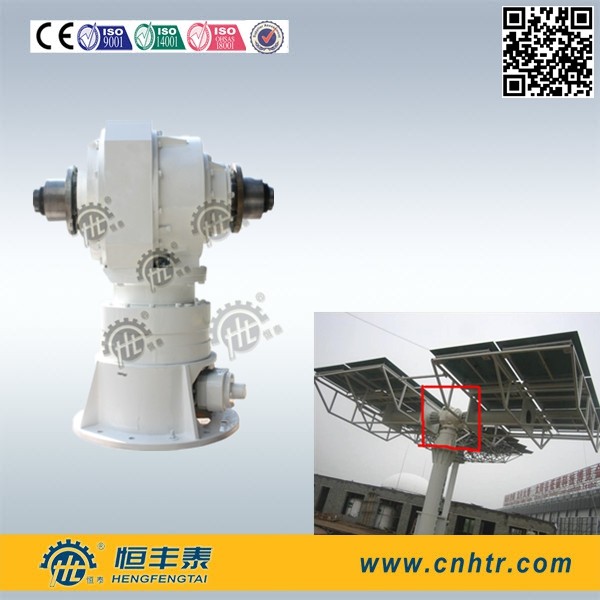

Solar Drive Cycloidal Gear Reducer Static Load 120Kn Ratio 49295/1
Features:
HJX combination of precision gear reducer and bicyclic cycloid reducer mechanism. Achieve accurate tracking pitch direction 360 °positioning.
Purely mechanical drive performance and stability for easy maintenance
High-precision transmission, large output stiffness, low retrace tolerance
With long life grease, no need to replace the lubricant;
- Specifications
Ratio: up to 49295
Nominal output torque up to 40000Nm
Max output torque up to 100000Nm
Static load 120 KN
Dynamic Load 75KN
|
power |
(w) |
800 |
|
ratio |
—— |
49295.462 |
|
Efficiency |
—— |
≥40% |
|
backlash |
(°) |
0.05°~0.1° |
|
Service life |
|
≥25 |
|
Nominal output torque |
(Nm) |
40000 |
|
Max output torque |
Nm |
100000 |
|
Static load |
(kN) |
120 |
|
Dynamic load |
(kN) |
75 |
|
Service environment |
(℃) |
-20~50 |
|
Noise |
(db) |
≤70db |
|
Maximum strength |
||
|
Torsional strength (Nm/rad) |
33×10e6 |
|
|
Bending strength (Nm/rad) |
48×10e6 |
|
Competitive Advantage:
Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:
Main product: reducer, Mixing equipments, settle tank, aluminum process equipments High&New Solar Thermal reducer, industrial robot reducer.
- Zhejiang hengfengtai reducer have 350 personnel in product department, among them, 35 are managing, 266 are workers, seniors 5, junior 10, 34 have professional operation certificate.
- Technical center carried out technical cooperation with many famous universities, hired reducer field experts,professors served as technical consultants, also rely on Guizhou Magnesium Institute, Shenyang Magnesium Design Institute, Zhejiang University dozens of units,establish long-term cooperative relationship, through technical exchanges, cooperation projects, etc., to promote the technological innovation process.
