35000-50000 Ratio Speed Reduction Gearbox 0.01 Degree 78500Nm

  • img.alt
  • img.alt
Place of Origin Wenzhou City,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008,ISO14001,GB28001
Model Number HDR series
Minimum Order Quantity 1pcs
Price US $ 3000 - 90000 / Piece
Packaging Details 1 PCS packed in ONE WOODEN CRATE
Delivery Time 40 days
Payment Terms T/T or LC
Supply Ability 100pcs/month
Product Details
Backlash 0.01 Degree Model HDR Disc Model
Torque 78500Nm Mirror Volume 90 Square Meters
Ratio 42000 Weight 220Kg
High Light

cycloidal speed reducer

,

speed reduction gearbox
Leave a Message
Product Description

High Precision Cycloidal Gear Reducer , Speed Reducer Gearbox




Features:

Gearing Arrangement: Dual drive transmission device
Ratio:  35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HDR15-HDR600
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting



Rated Datas



Model/Data



Ratio

Max dynamic torque(N.m)

Max static torque(N.m)

Tilting moment toque

Torsional Stifness

(N.m/rad)

Backlash

(degree)

HDR30

Horizontal

11088

3150

4500

5500

3.53*10e6

0.015

Elevation

8348.4

HDR50

Horizontal

11088

4950

7030

8500

5.41*10e6

0.015

Elevation

8348.4

HDR100



Horizontal

40200

10190

15500

22500

6.84*10e6

0.015

Elevation

40367.5

HDR190

Horizontal

40200

18670

28290

44000

11.27*10e6

0.015

Elevation

40367.5

HDR270



Horizontal

50250

27500

45800

70000

23.69*10e6

0.015

Elevation

50417.5

HDR400

Horizontal

50250

39900

66500

90000

32.07*10e6

0.015

Elevation

50417.5

HDR600

Horizontal

55200

62500

104000

110000

47.7*10e6

0.015

Elevation

55372.5




Competitive Advantage:


A new generation solar tracker drive device developed by HENGFENGTAI Reducer Mfg Company



With independent intellectual property rights



Output backlash 0.015°



The core transmit parts all are surface hardened and grinded processing precisely.



HDR series output use precision planetary device which realize multi teeth contact mesh output.



In the same outline dimensions the transmission capacity is 2-4 times bigger than double lead,second formed worm drive.





HDR 30 datas:



Model:HDR 30

Ratio:  Horizontal 11088 (Range:11088~55200)

     Elevation 8438.4 (Range: 8438.4~55372.5)



The maximum dynamic torque: 3150 N.m (Range 3150~62500)



The maximum static torque:4500N.m (Range 4500~104000)



Tilting moment: 5500N.m (Range 5500~110000)



Application: Mainly Tower type,Disc type condenser( Elevation :parabolic type)



Customized by customers’ request



Delivery time is short if product standard



Global service



About Hengtai company:



Brand : Hengtai

Founding year:   1991

Quantity of employees:    300 employees

Factory square:   50000square meters

Annual production capability:   60,000sets

Main products: Hxg, Hsmr shaft mounted reducer,

                           HH,HB helical bevel series gear box reducer

                          HR serial helical geared motor,

                           HS serial helical worm geared motor,

                           HK serial helical bevel geared motor,

                           HF serial parallel helical geared motor,

                           HT 300 serial planetary gearbox

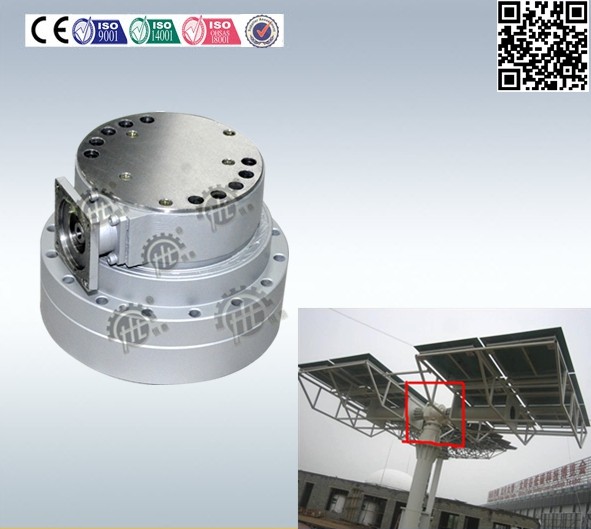

35000-50000 Ratio Speed Reduction Gearbox 0.01 Degree 78500Nm 0

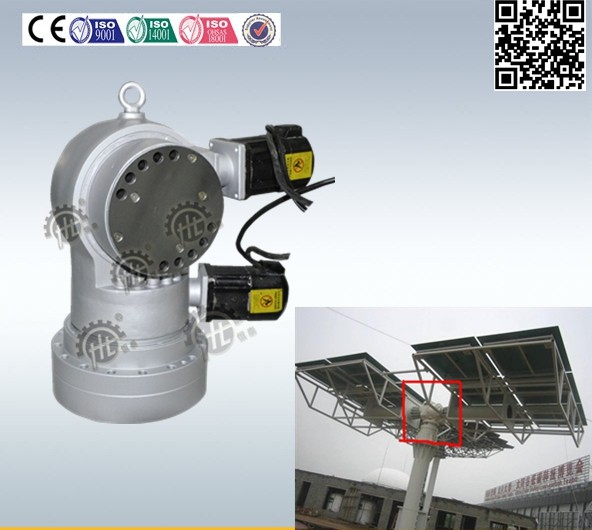

35000-50000 Ratio Speed Reduction Gearbox 0.01 Degree 78500Nm 1
