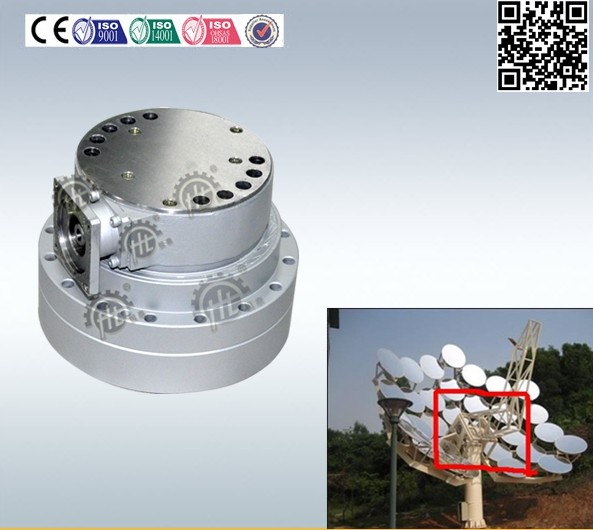

Elevation Drive Cycloidal Speed Reducer HDRS Tower Model 50000Nm
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HDRS series |
| Minimum Order Quantity | 1pcs |
| Price | US $ 3000 - 90000 / Piece |
| Packaging Details | 1 PCS packed in ONE WOODEN CRATE |
| Delivery Time | 40 days |
| Payment Terms | T/T or LC |
| Supply Ability | 100pcs/month |
Product Details
| Model | HDRS Tower Model | Model | HDRS Tower Model |
|---|---|---|---|
| Backlash | 0.01 Degree | Torque | 50000Nm |
| Torque | 50000Nm | Mirror Volume | 100 Square Meters |
| Ratio | 42000 | Ratio | 42000 |
| Weight | 320Kg | ||
| High Light | cycloidal speed reducer,cyclo gear reducer |
||
Product Description
Elevation Drive Cycloidal Gear Reducer / Cycloidal Speed Reducer
Features:
|
Model/Data |
Ratio |
Max dynamic torque(N.m) |
Max static torque(N.m) |
Tilting moment toque |
Torsional Stifness (N.m/rad) |
Backlash (degree) |
|
|
HDR30 |
Horizontal |
11088 |
3150 |
4500 |
5500 |
3.53*10e6 |
0.015 |
|
Elevation |
8348.4 |
||||||
|
HDR50 |
Horizontal |
11088 |
4950 |
7030 |
8500 |
5.41*10e6 |
0.015 |
|
Elevation |
8348.4 |
||||||
|
HDR100
|
Horizontal |
40200 |
10190 |
15500 |
22500 |
6.84*10e6 |
0.015 |
|
Elevation |
40367.5 |
||||||
|
HDR190 |
Horizontal |
40200 |
18670 |
28290 |
44000 |
11.27*10e6 |
0.015 |
|
Elevation |
40367.5 |
||||||
|
HDR270
|
Horizontal |
50250 |
27500 |
45800 |
70000 |
23.69*10e6 |
0.015 |
|
Elevation |
50417.5 |
||||||
|
HDR400 |
Horizontal |
50250 |
39900 |
66500 |
90000 |
32.07*10e6 |
0.015 |
|
Elevation |
50417.5 |
||||||
|
HDR600 |
Horizontal |
55200 |
62500 |
104000 |
110000 |
47.7*10e6 |
0.015 |
|
Elevation |
55372.5 |
||||||
Gearing Arrangement: Dual drive transmission device
Ratio: 35000-50000
Allowable torque:
Horizontal torque 1030-67600
Elevation torque 1360Nm-75800Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HJR01-HJR09
Brand Name: HENGTAI
Color: According to customer
Packing: Strong wooden cases for exporting
HDRS horizontal use solar tracker gear box datas:
- Model: HD RS 270
- Ratio: 50250 (Range 11088~55200)
- The maximum dynamic torque: 27500 N.m (Range 3150~62500)
- The maximum static torque:45800N.m (Range 4500~104000)
- Capsizing moment: 70000 N.m (Range 5500~110000)
- Application: Mainly Tower type,Disc type condenser
- Customized by customers’ request
- Delivery time is short if product standard
- Global service
Competitive Advantage:
- 550,000 square feet manufacturing facilities
- 400 employees
- Major US & European OEM customers
- ISO 9001:2000 certificate
- ISO 14001 Certificate
- GB/T 28000 Certificate
- Over two decades of planetary reducer production experience
- 5,000 square feet warehouse in Los Angeles, California USA
