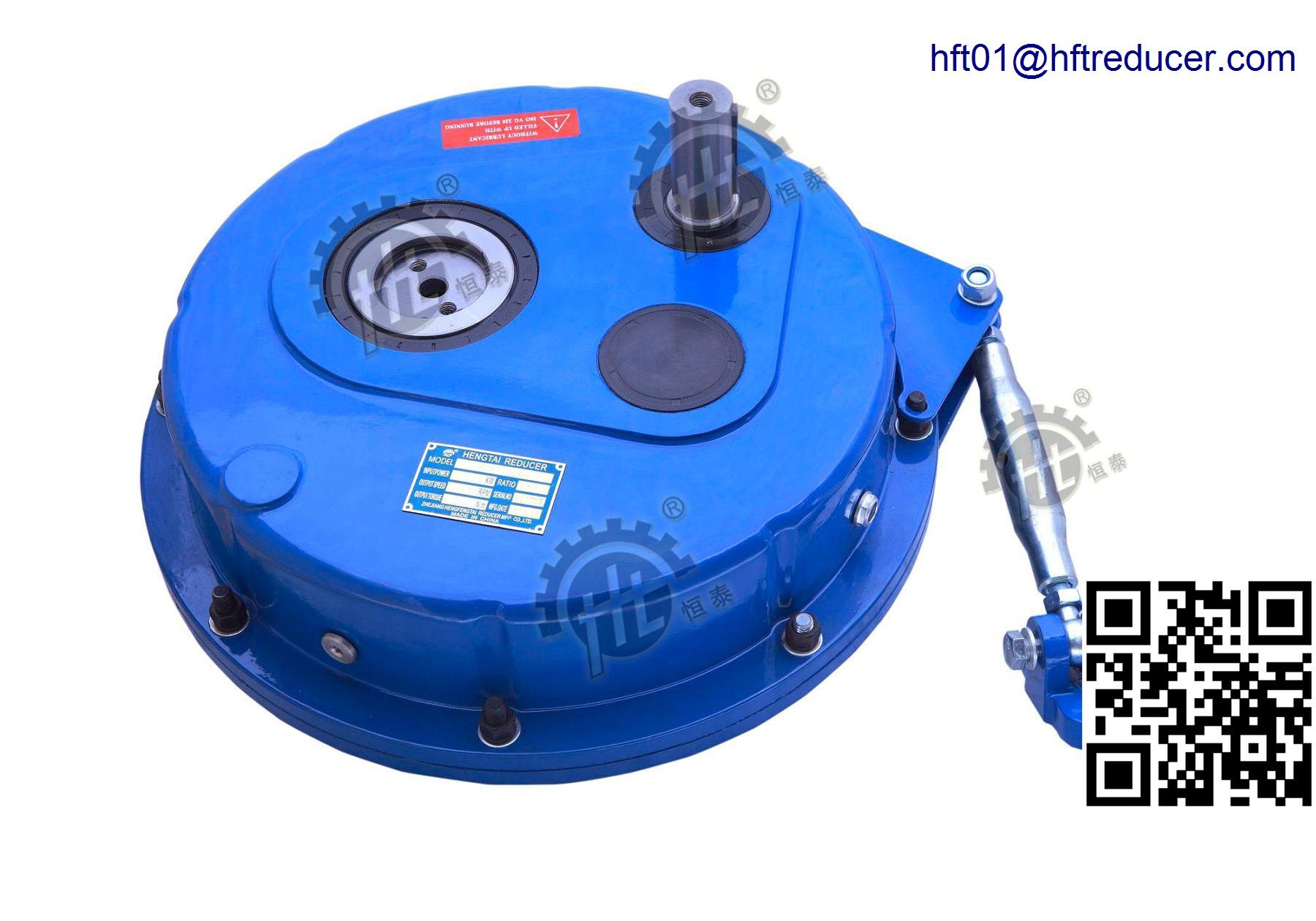

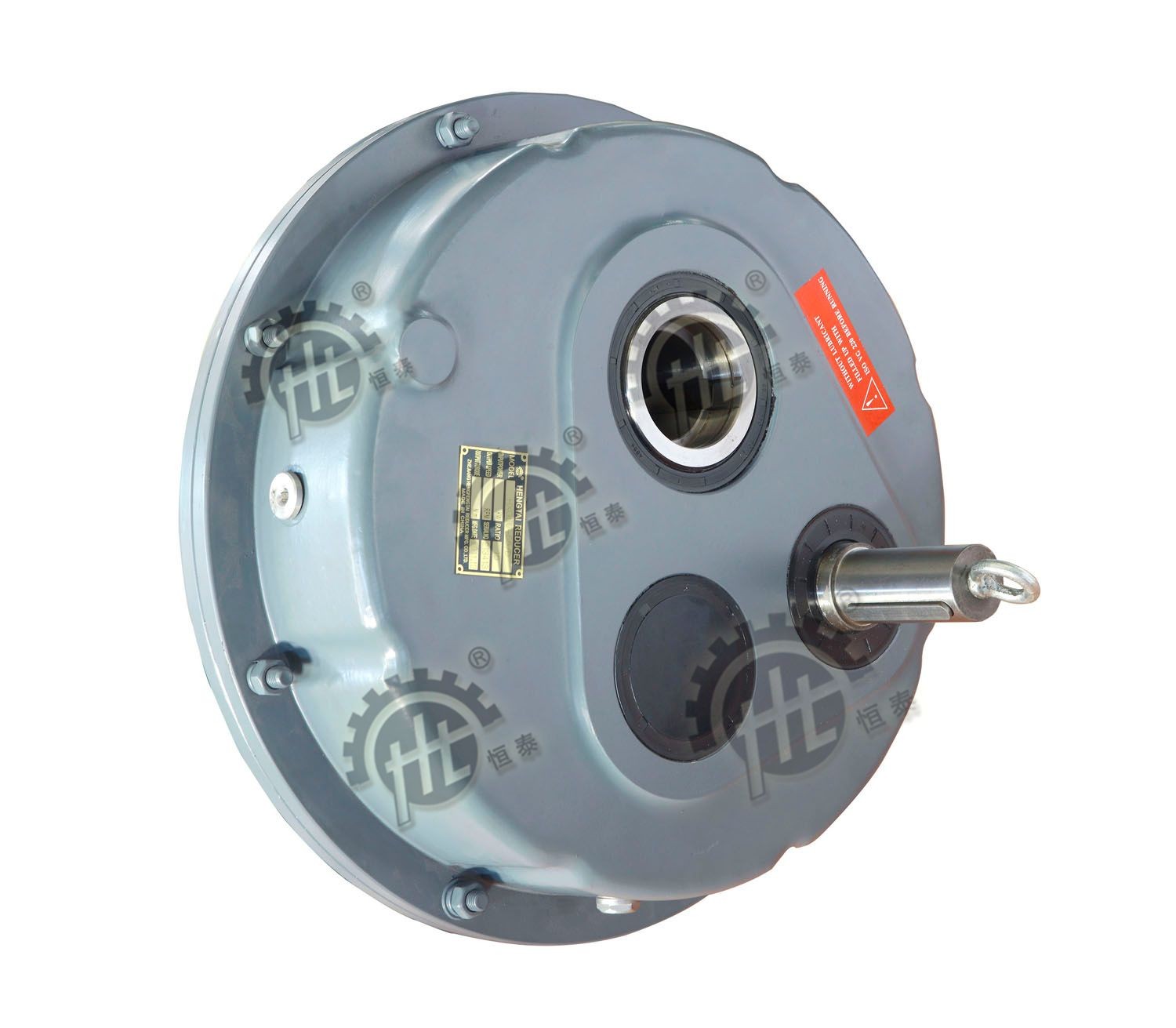

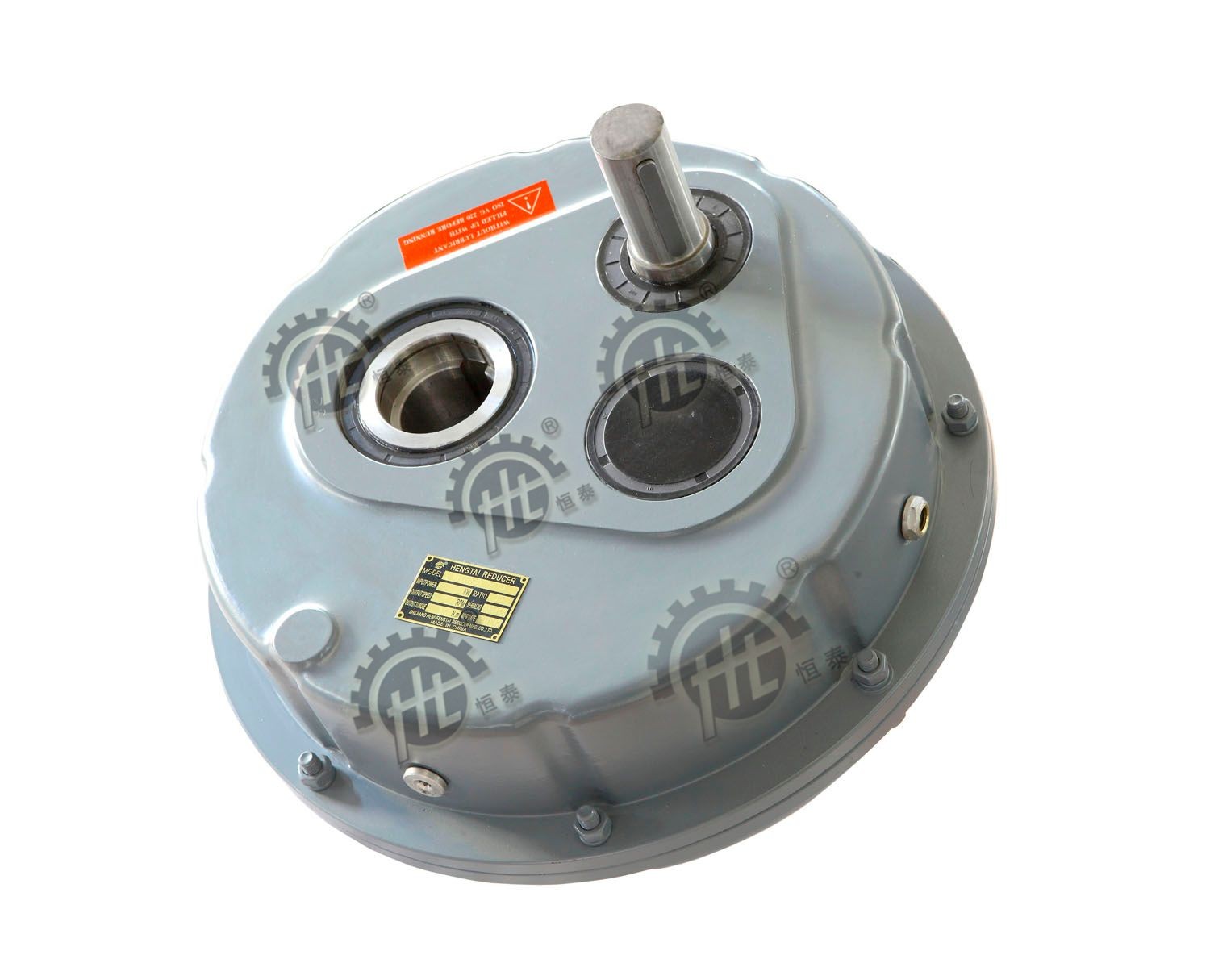

Ratio 15 Helical Shaft Mounted Speed Reducer Zero Backlash Worm Gear

  • img.alt
  • img.alt
  • img.alt
Place of Origin Wenzhou,Zhejiang,China
Brand Name HENGTAI
Certification CE,ISO9001:2008, etc
Model Number TA series
Minimum Order Quantity 10 PIECES
Price PLS REFER TO PRICE TABLE
Packaging Details 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time DEPENDS ON QUANTITY
Payment Terms T/T or LC
Supply Ability TWO THOUSAND PCS PER MONTH
Product Details
Output Torque 180Nm-17000 N.m Rated Power 0.92-226 KW
Input Speed 500-1400 Rpm Output Speed 15.1-280RPM
Ratio 5-31 Mounting Position Shaft Mounted
Output Shaft Diameter 35-135MM
High Light

shaft mounted gearbox

,

Shaft mounted Gear Reducer
Leave a Message
Product Description

Descriptions:



The HXG series shaft mounted gear reducer, made by Zhejiang Hengfengtai Reducer Mfg.Co.,ltd which was wildly used in mechanical transmission such as agriculture, commerce, posts and food industry, automotive industry, cement industry, tourism industry, especially for quarry and mining applications.

  • Use low-carbon alloyed steel cementation processing completely.

  • Gear, shaft with high precision for low noise and long service life.

  • Small volume, light weight, strong carring ability and high efficiency.

  • Double lip seals keep oil in and contaminants out. Double seals available for severe duty applications.

  • Dimension same with Bonfiglioli (TA).





WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.





Specifications:



Model

HXG30

HXG35

HXG40

HXG45

HXG50

HXG60

HXG70

HXG80

HXG100

HXG125

Permitted torque

180Nm

420Nm

950Nm

1400Nm

2300Nm

3600Nm

5100Nm

7000Nm

11000Nm

17000Nm







THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER





Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution











































Applications:







TA series Shaft mounted speed reducer is widely used for mechanical transmission such as:

1. Argriculture

2. Commerce

3. Posts and telecommunications industry

4. Food industry

5. Tobacco industry,

6. Automotive industry

7. Cement industry

8. Mining industry

9. Tourism industry etc.

10. Head drum drive for screen feeder





Ratio 15 Helical Shaft Mounted Speed Reducer Zero Backlash Worm Gear 0

Ratio 15 Helical Shaft Mounted Speed Reducer Zero Backlash Worm Gear 1



WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.
