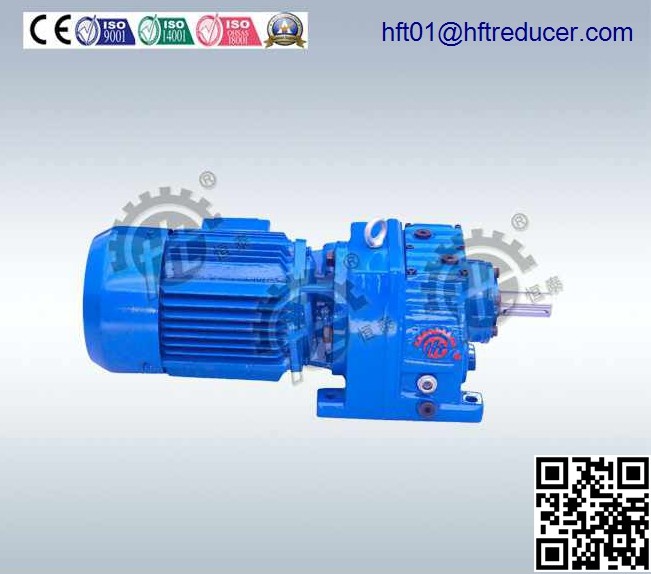

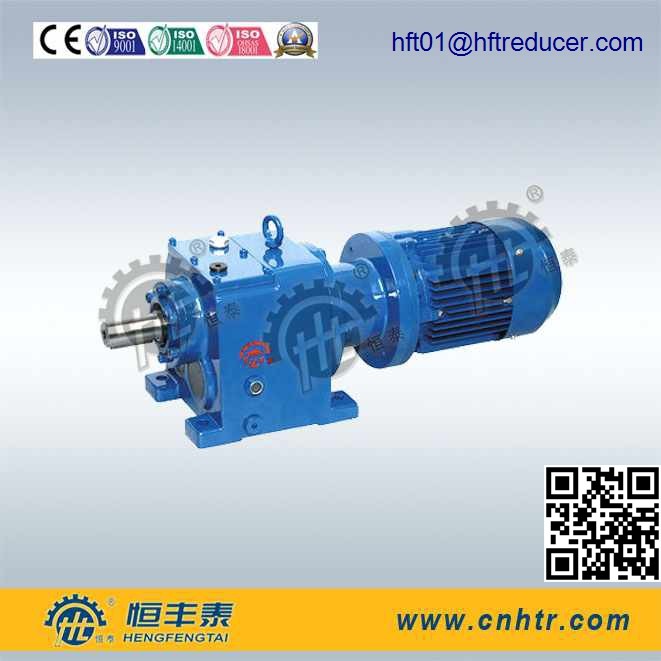

Helical Gear Reduction Box Hardened Hrc58-62 Mining Conveyor Crusher
| Place of Origin | Wenzhou City,Zhejiang,China |
|---|---|
| Brand Name | HENGTAI |
| Certification | CE,ISO9001:2008,ISO14001,GB28001 |
| Model Number | HR series |
| Minimum Order Quantity | 5pcs |
| Price | USD120-3000 |
| Packaging Details | 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE |
| Delivery Time | 30 days |
| Payment Terms | T/T or LC |
| Supply Ability | 2000 Pcs/month |
Product Details
| Models | R17-R167 | Torque | 1.4-23200Nm |
|---|---|---|---|
| Gear Material | 20CrMnTi | Use Temperature | -40-50 Degree |
| Input Speed | <2800 Rpm | Applications | Air Compressor |
| High Light | inline helical gearbox,helical bevel gearbox |
||
Product Description
Helical Gear Reduction Box Hardened Hrc58-62 Mining Conveyor Crusher
HR helical gear reducer dimensions:
|
Model |
Shaft Dia. |
Center Height |
Output Flange Dia. |
Power |
Ratio |
Permitted Torque |
Weight |
|
Solid (mm) |
(mm) |
(mm) |
(kw) |
(Nm) |
(KGS) |
||
|
R37 |
25k6 |
90h13 |
120/160 |
0.12~0.75 |
5~136 |
150 |
10 |
|
R47 |
30k6 |
115h13 |
160/200 |
0.25~2.2 |
5~173 |
300 |
15 |
|
R57 |
35k6 |
115h13 |
200/250 |
1.18~5.5 |
5~173 |
400 |
21 |
|
R67 |
35k6 |
130h13 |
200/250 |
0.37~7.5 |
5~170 |
500 |
27 |
|
R77 |
40k6 |
140h13 |
250/300 |
0.55~11 |
5~192 |
750 |
35 |
|
R87 |
50k6 |
180h13 |
300/350 |
0.75~18.5 |
5~192 |
1250 |
65 |
|
R97 |
60m6 |
225h13 |
350/450 |
1.5~30 |
5~197 |
2400 |
120 |
|
R107 |
70m6 |
250h13 |
350/450 |
2.2~45 |
5~197 |
3600 |
165 |
|
R137 |
90m6 |
315h13 |
450/550 |
4~55 |
5~197 |
6600 |
255 |
|
R147 |
110m6 |
355h13 |
450/550 |
7.5~90 |
5~195 |
10700 |
370 |
|
R167 |
120m6 |
425h13 |
550/660 |
11~132 |
8~186 |
14800 |
700 |
|
R187 |
160m6 |
510h13 |
660/770 |
15~160 |
8~186 |
28000 |
1500 |
|
Remark: the weight without oil and motor, shaft and flange input add 10%. |
|||||||
Performance Characteristics :
|
Power |
0.12kw |
0.35kw |
0.75kw |
1.1kw |
1.5kw |
2.2kw |
3.0kw |
|
4.0kw |
5.5kw |
7.5kw |
11.0kw |
15kw |
18.5kw |
22kw |
|
|
30kw |
37kw |
45kw |
55kw |
90kw |
110kw |
132 kw |
|
|
Torque |
69N.m-18000N.m |
||||||
|
Ratio |
1.3-21342 |
||||||
|
Color |
RAL5010 blue or as clients' requirement |
||||||
|
Material |
Cast Iron or as clients' requirement |
||||||
|
Packing |
Plywood Carton Box or as clients' requirement |
||||||
|
Type |
R..27 |
R..37 |
R..47 |
R..57 |
R..67 |
R..77 |
R..87 |
|
Type |
R..97 |
R..107 |
R..137 |
R..147 |
R..167 |
|
|
|
Mounting Methods |
Foot Installation |
|
Flange Installation |
||||
|
Various of mortors or double shafts can be equipped |
|||||||
Applications:
|
Gear Box's Usage Field |
|
|
Gear Box's Usage |
|
||||
|
1 |
Metallurgy |
|
|
|
1 |
Agitator |
|
|
|
2 |
Mine |
|
|
|
2 |
Blast fan |
|
|
|
3 |
Machine |
|
|
|
3 |
Hoister |
|
|
|
4 |
Energy |
|
|
|
4 |
Compressor |
||
|
5 |
Transportation |
|
|
5 |
Petroleum industry |
|||
|
6 |
Water Conserbancy |
|
|
6 |
Air Compressor |
|||
|
7 |
Tomacco |
|
|
|
7 |
Crusher |
|
|
|
8 |
Pharmacy |
|
|
|
8 |
Plastic extruder |
||
|
9 |
Printing Package |
|
|
9 |
Conveyer |
|
||
|
10 |
Chemical industry |
|
|
10 |
Textile indutry |
|||
Competitive Advantage:
- Monoblock housing design,
- Wide ratio, torque range and two or three stages can be in same housing,
- Reduction can be increased up to six stages,
- Standard IEC B5 or B14 motor connection flanges,
- Electromagnetic brake option,
- Long life bearings,
- GG20 and GGG40 cast iron housings,
- 58-62 HRc hardened and grinded gears.
