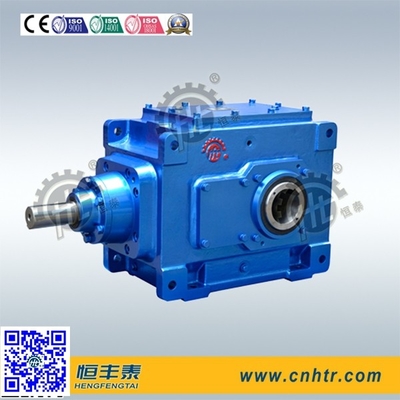

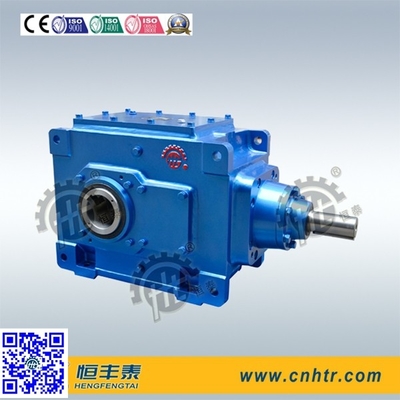

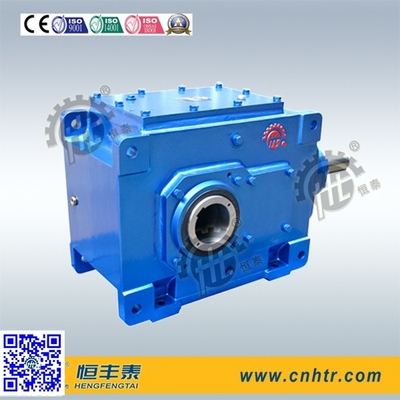

Industrial Application Flender HB Series Bevel Right Angle Gear Box With Hollow Shaft Output

  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin Zhejiang, China
Brand Name HENGTAI
Certification CE,ISO9001:2008,TUV,SGS
Model Number B series
Minimum Order Quantity 1PCS
Price USD200-30000/PCS
Packaging Details Wooden Case, Standard Export Package.
Delivery Time 30-60 DAYS
Payment Terms L/C, T/T
Supply Ability 5000PCS PER YEAR
Product Details
Ratio Up To 500 Surface Hardness Of Gears HRC58~62
Housing Material Ht 250 Cast Iron Rated Power Up To 2000kw
Gear Material 20CrMnTi Mounting Position Horizontal, Vertical Mounted
High Light

helical speed reducer

,

helical bevel gearbox
Leave a Message
Product Description

About B series gear box:

1, The H/B general design scheme of gear box. Can meet customer demand for gear box industry special variant.

2, parallel shafts, straight axis, vertical, horizontal universal body parts to reduce the types, specifications, increase.

3, the sound box structure and body surface area is larger, the spiral bevel gear adopts advanced lapping process and a big fan of making machine temperature, noise reduction, the reliability of operation is improved, the transmission power.

4, input methods: motor flange, shaft input.

5, output mode: solid shaft, hollow shaft with a key, shrink disc.

6, installation: horizontal, vertical, swinging base, torque arm type.

7, H, B series products are 1-22 type specifications reducer series, 1-4 level, 1.25-450 ratio, and R, K series has been a greater ratio.



Parameter table:




ransmission stage		 BC2 (ratio from 5~18)
BC3 (ratio from 12.5~90)
BC4 (ratio from 80~400)
Housing material HT250 high-strength cast iron
Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 42CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment tempering, cementiting, quenching, etc.
Efficiency 92%~98% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. rise  (MAX) 40°C
Temp. rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin



About application:



Industrial Application Flender HB Series Bevel Right Angle Gear Box With Hollow Shaft Output 0


Company Information:


Zhejiang Hengfentai Reducer Mfg. Co.,Ltd was established in 1991, with the development of more than 24 years, we have accomplished the following achievements:

Main product: Reducers, Mixing equipments, Thickener tank, Aluminum process equipments etc.



R&D: Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.



Factory Scale: Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 450 personnel, and advanced equipments & machines.



Turnover of last year: 50Million USD



Workshop and machine:



Industrial Application Flender HB Series Bevel Right Angle Gear Box With Hollow Shaft Output 1
